Static Electricity Generator

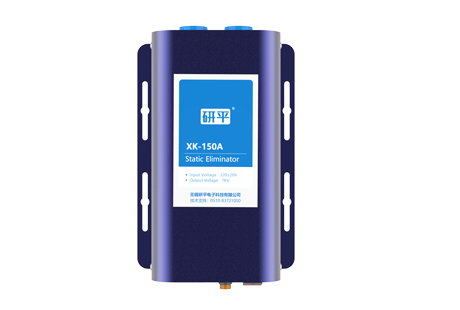

XK-150A
Output Voltage6.5KV,Output Power:20W

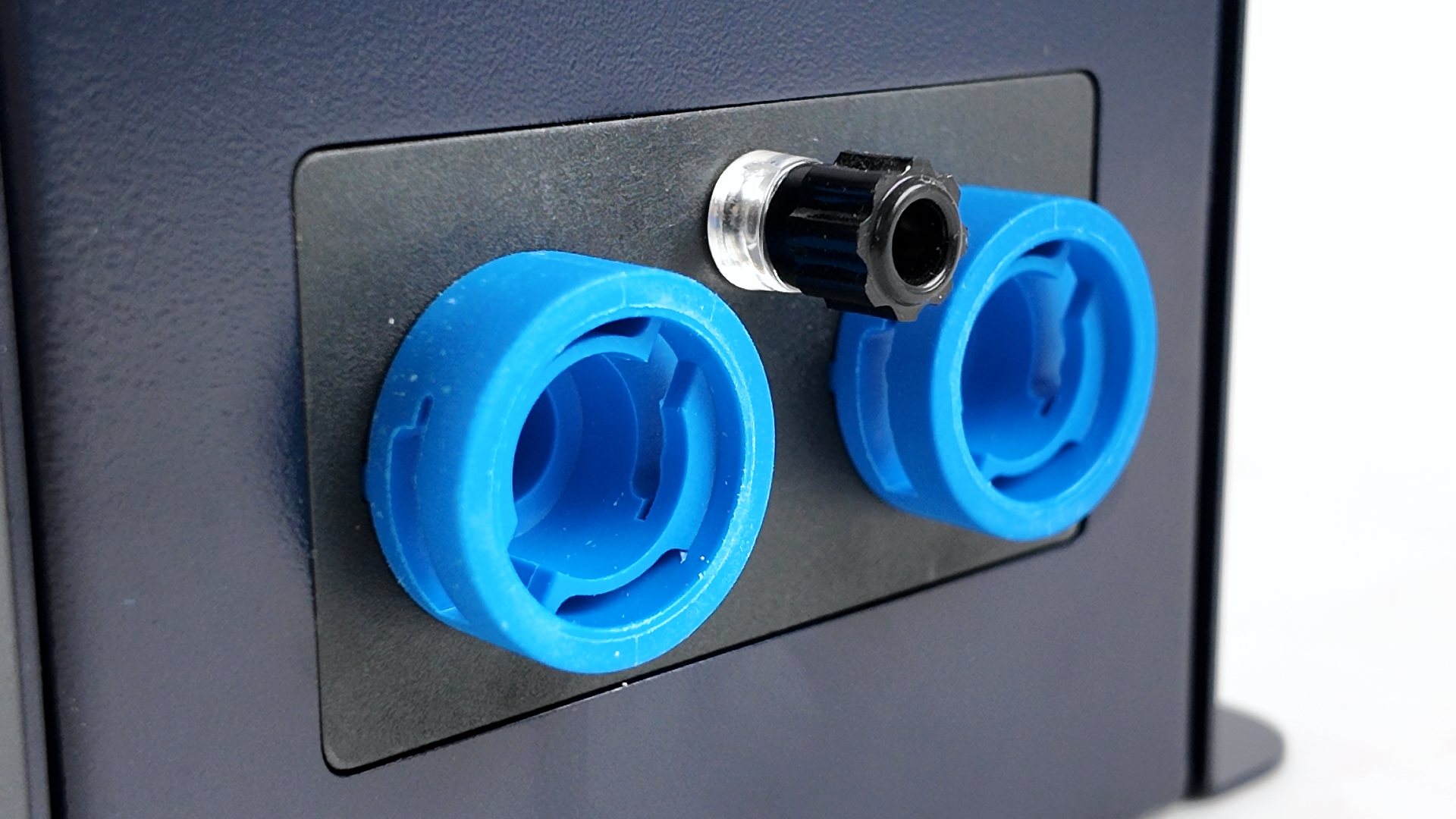

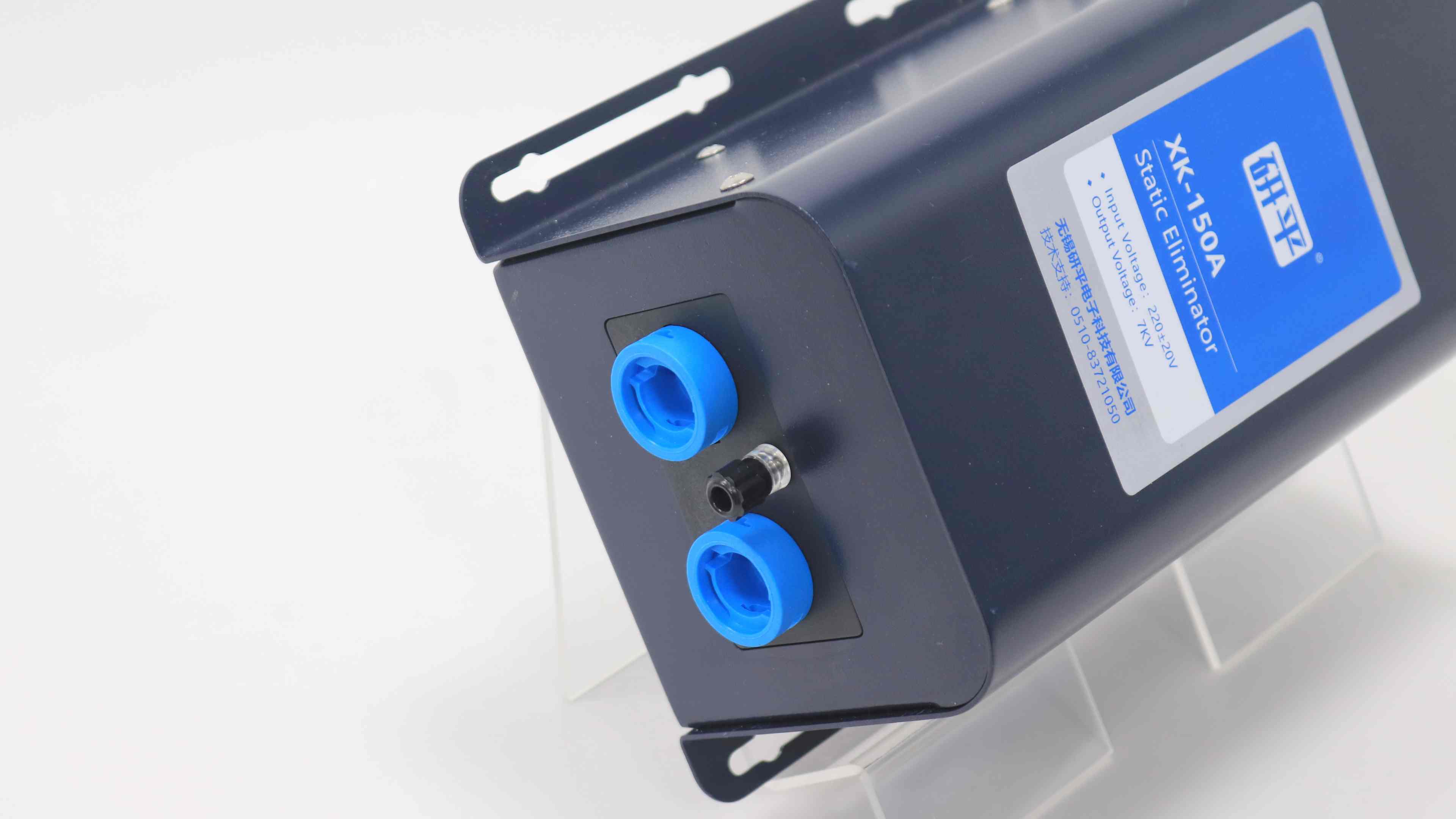

Dual-output Interface Design

Application Field

Product Characteristics

1     Adopts a dual-output interface; users can select single-port or dual-port output according to practical situations to flexibly connect multiple static elimination devices.

2    Frosted texture appearance effectively reduces fingerprints and scratches.

3    The device is equipped with a built-in short-circuit protection function, which effectively prevents equipment damage or even fire hazards caused by short circuits, building a solid defense for production safety

Performance Parameter

  • Input Voltage
    AC 220±20V, 50Hz
  • Input Current
    54mA
  • Power
    <25W
  • Operating Ambient Temperature
    0~+50℃
  • Operating Ambient Humidity
    35~65%RH
  • Output Voltage
    2
  • Protection Function
    Short-circuit Protection

Product Size
