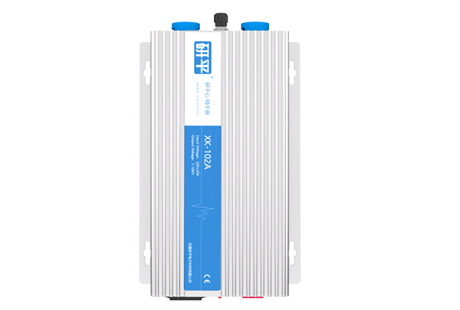

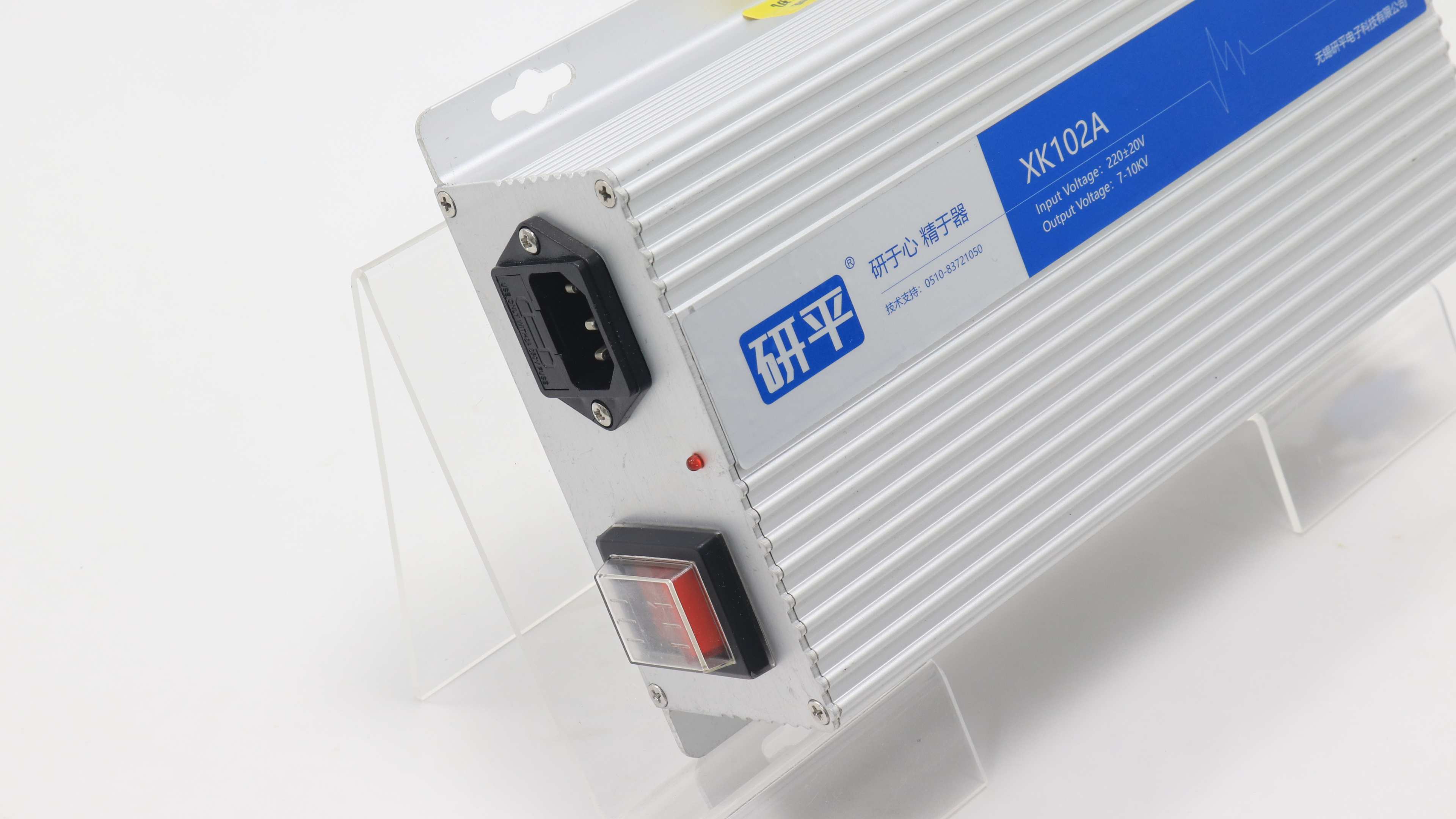

Static Electricity Generator

XK-102A
Output Voltage5.5KV,Output Power25W

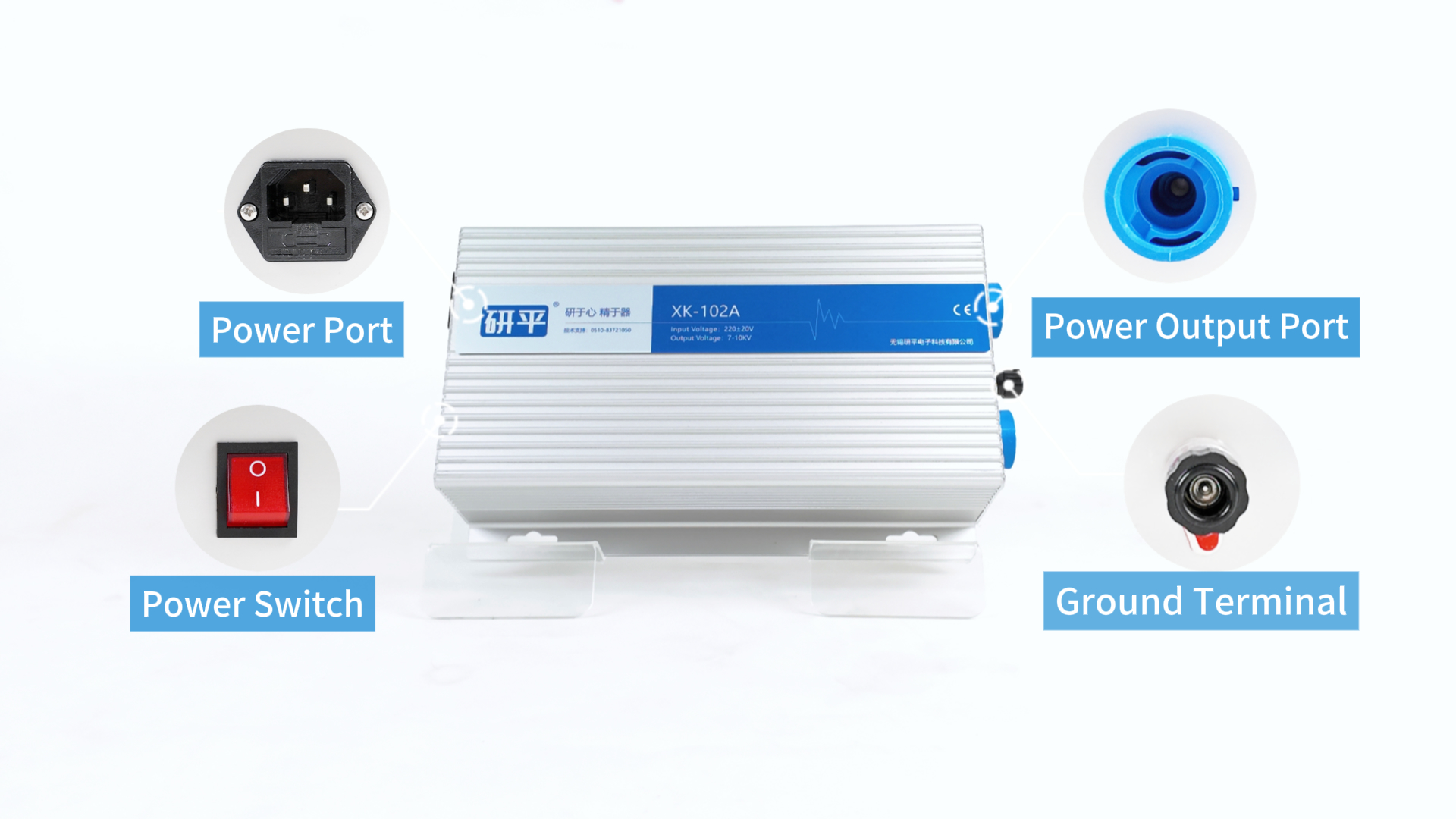

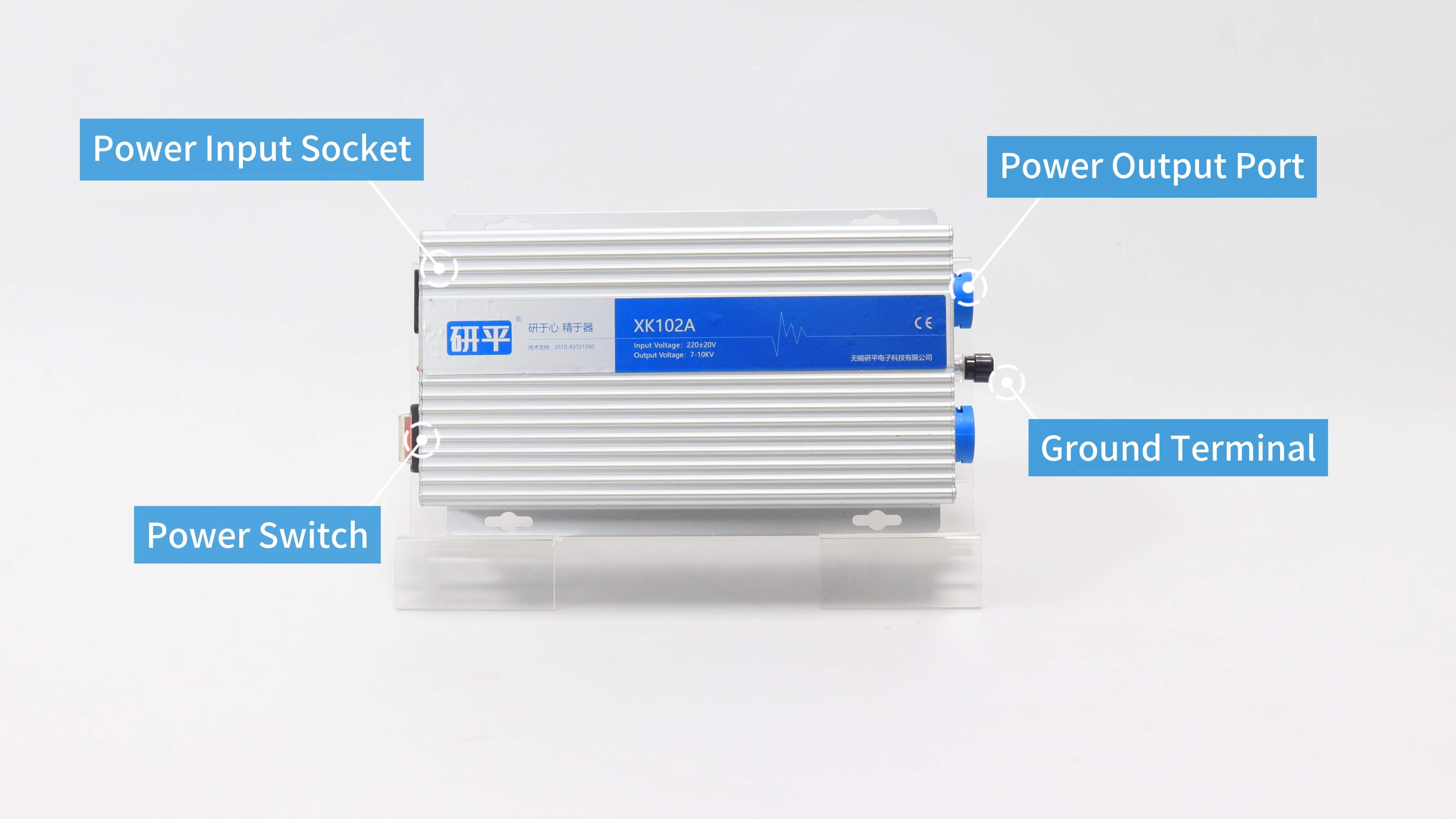

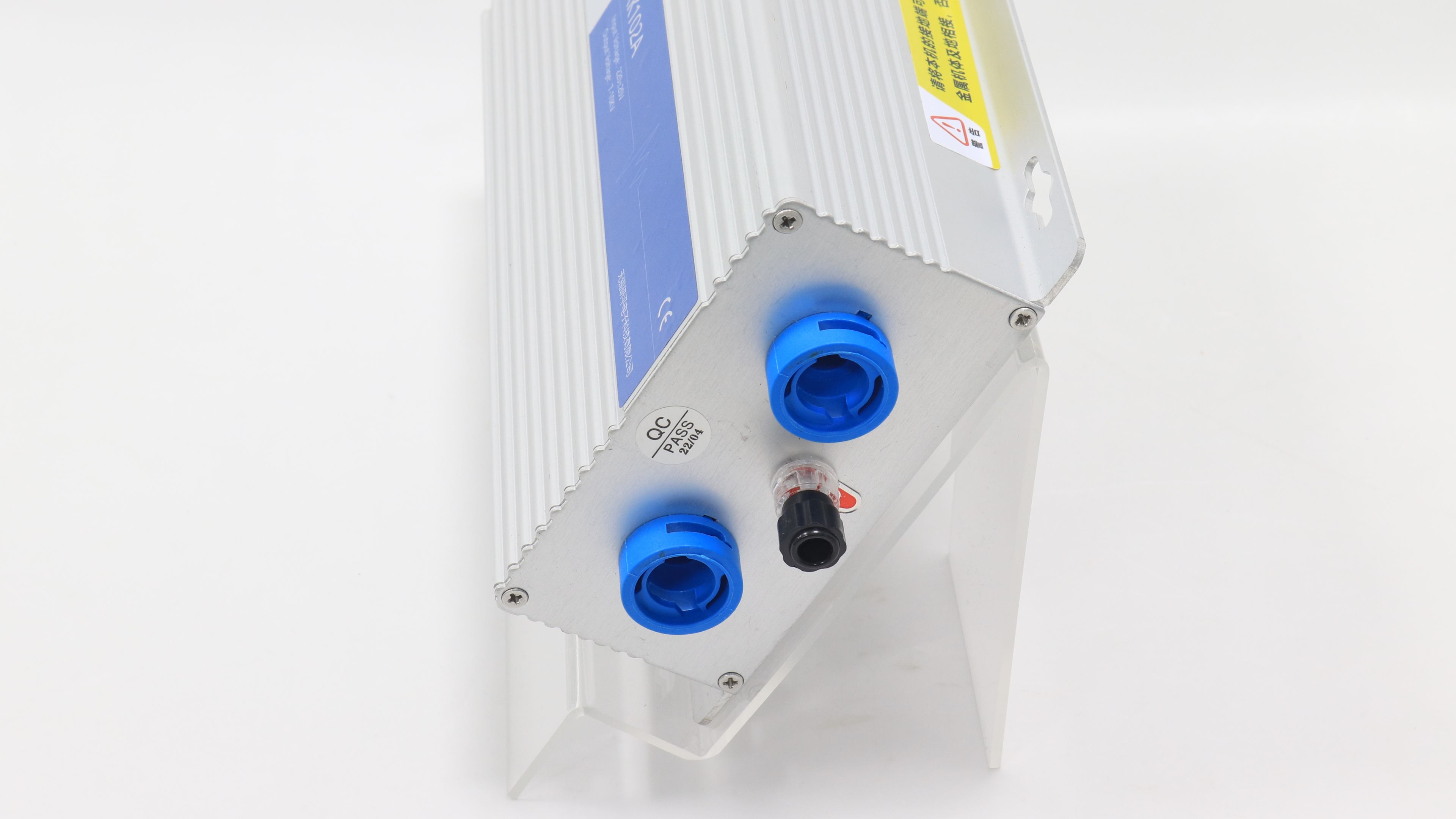

Dual-output Interface Design

Application Field

Product Characteristics

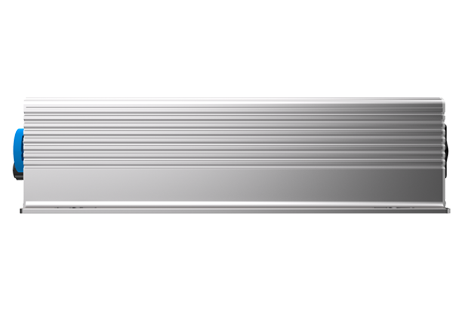

1     Hollowed-out design effectively prevents dust accumulation.

2     Compared with the traditional closed design, the hollowed-out design shortens cleaning time, improves cleaning convenience, and effectively reduces the risk of equipment failure caused by delayed cleaning.

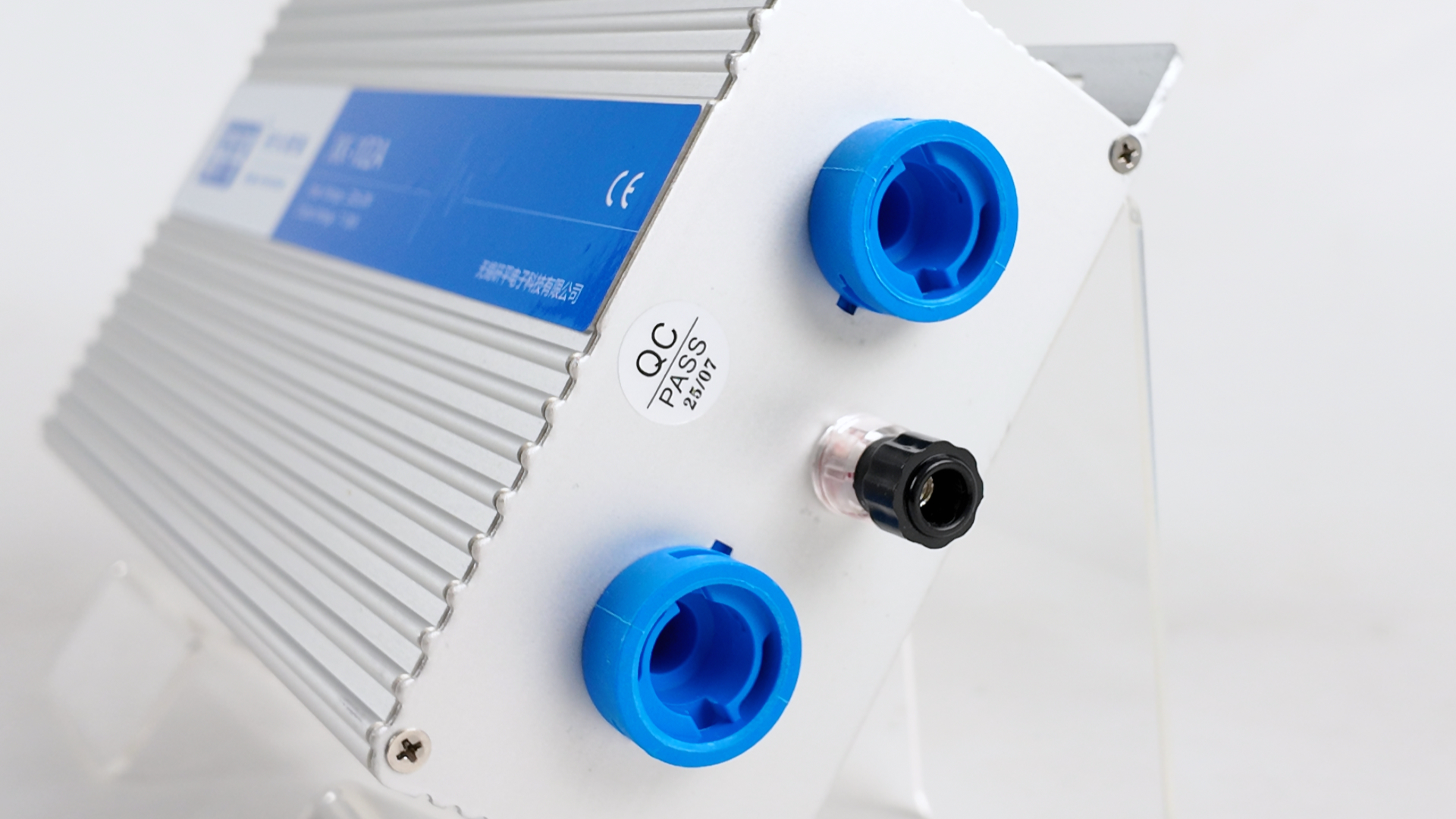

3      Adopts a dual-output interface; users can select single-port or dual-port output according to actual needs to flexibly connect multiple static elimination devices

Performance Parameter

  • Input Voltage
    AC 220±20V, 50Hz
  • Input Current
    <4mA
  • Power
    <25W
  • Operating Ambient Temperature
    0~+50℃
  • Operating Ambient Humidity
    35~65%RH
  • Output Voltage
    AC 5.5KV
  • Output Interface
    2-J1
  • Protection Function:
    /
  • Passive Contact
    /

Product Size
