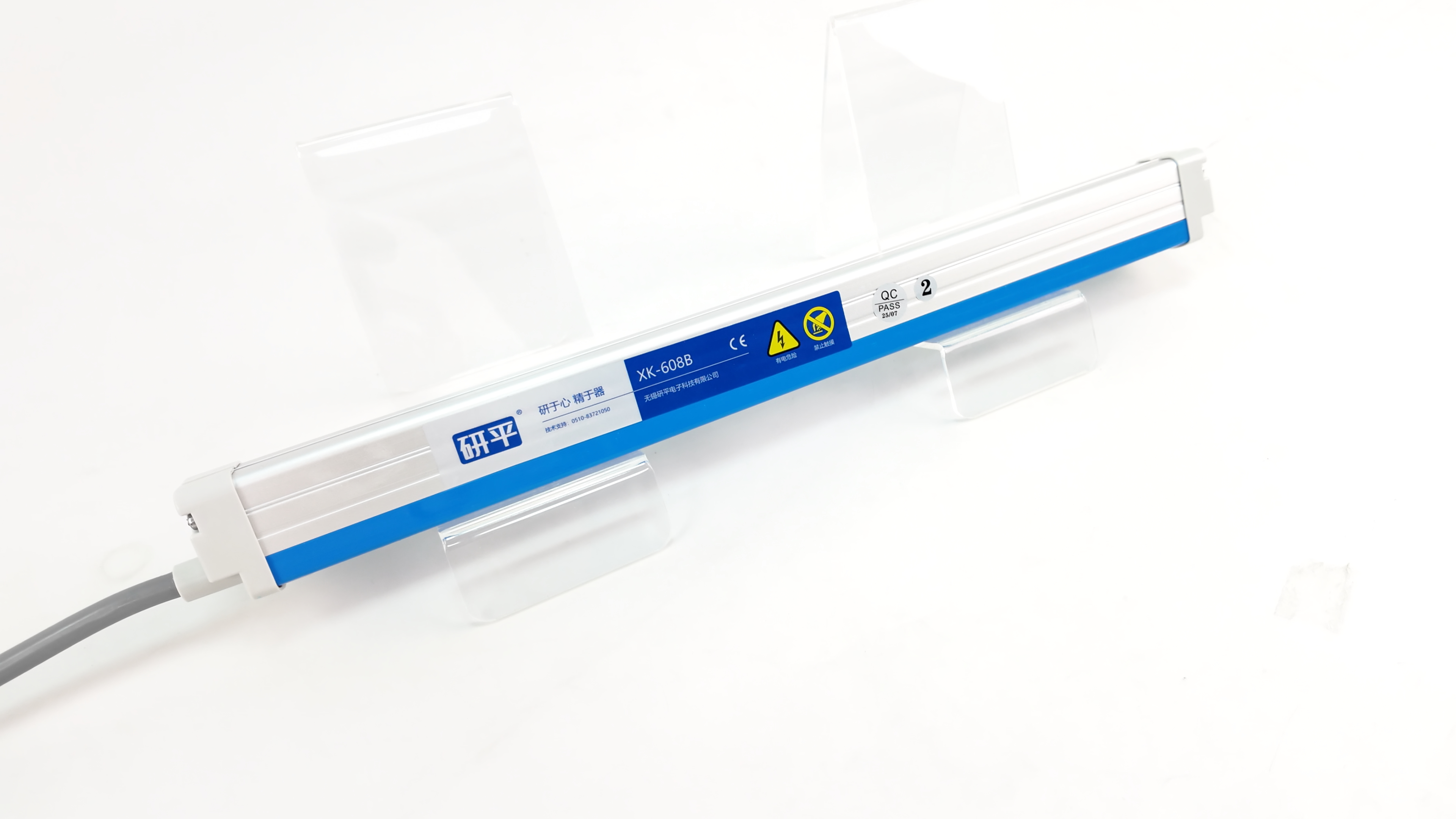

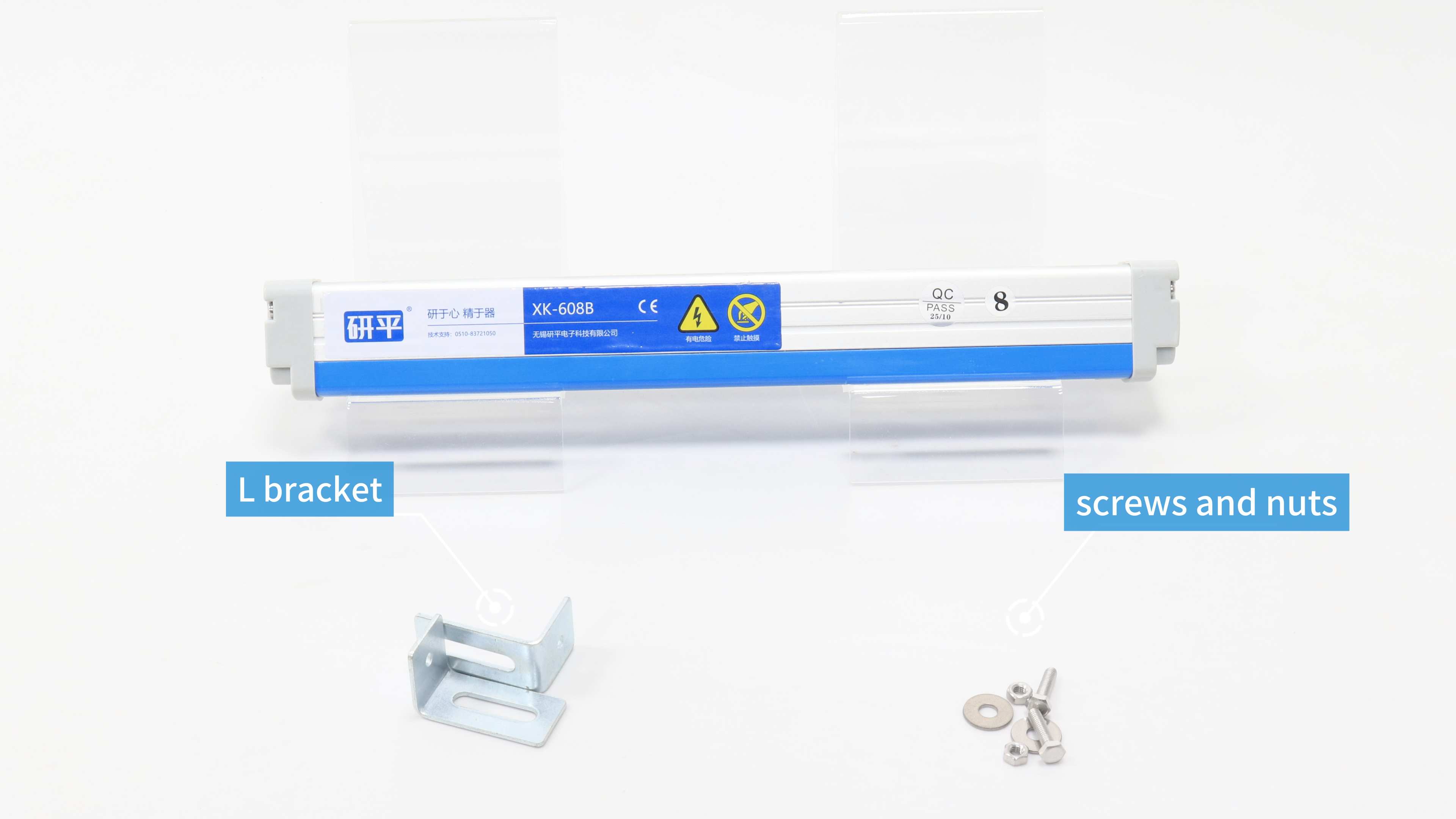

AC Static Elimination Bar

XK-608B
Fire-resistant, durable and safer
Can be customized to different lengths according to requirements

Application Field

  • Washing Industry

  • Textile Industry

  • Soft Packaging Industry

Product Characteristics

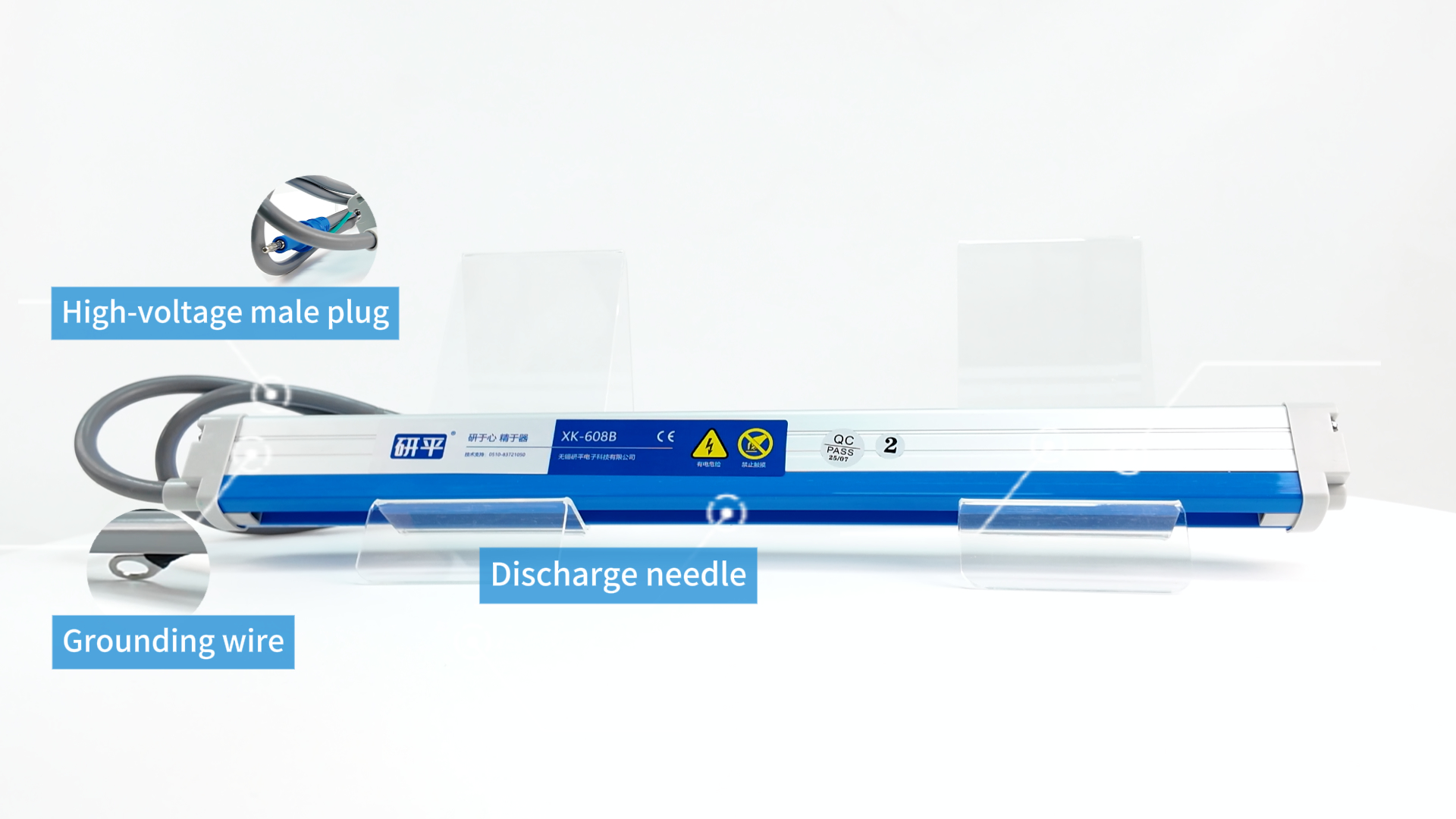

1      Double insulation protection of plastic sealing and epoxy potting, with good insulation performance and safe use

2      Compact structure, improving space utilization

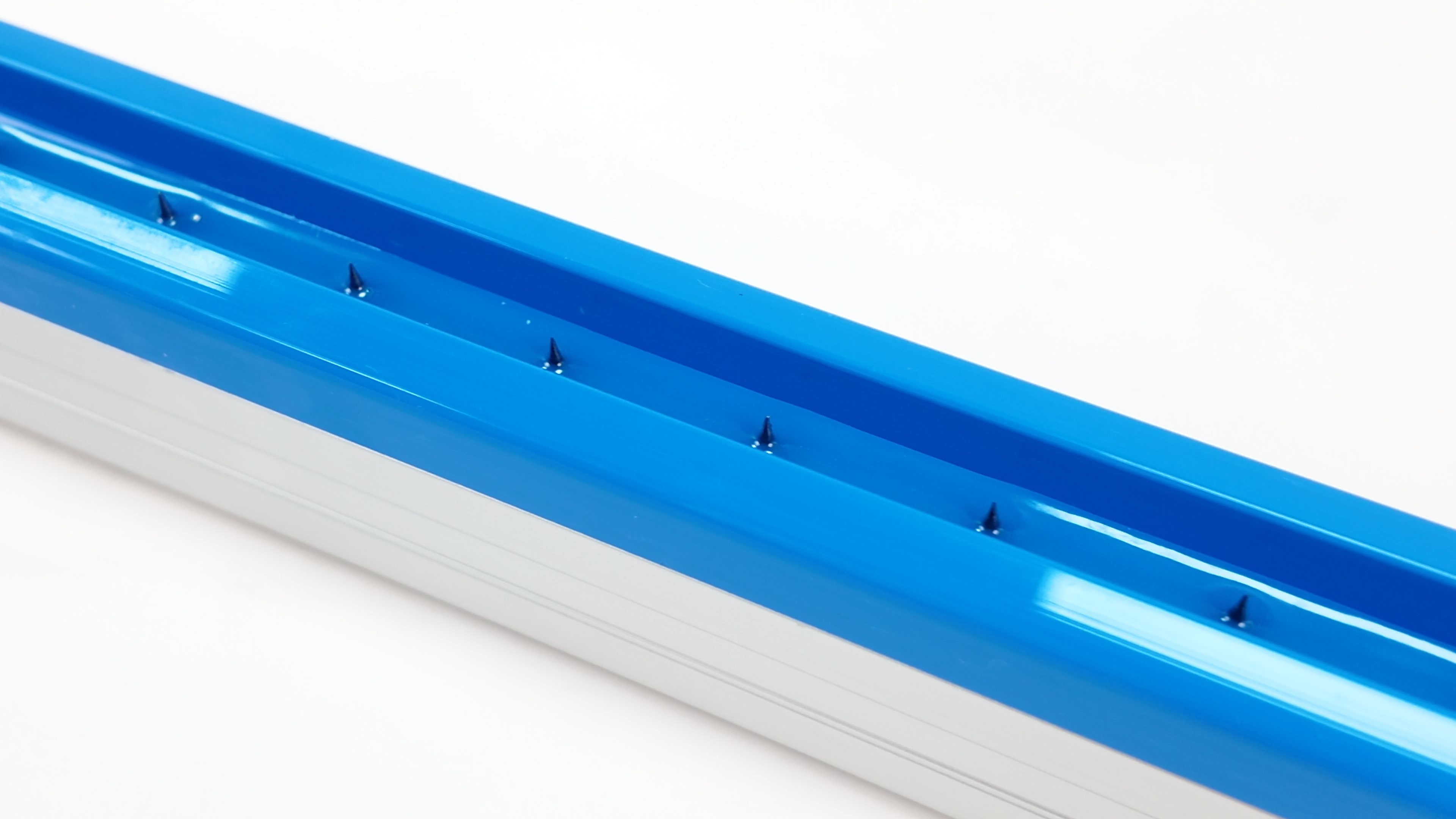

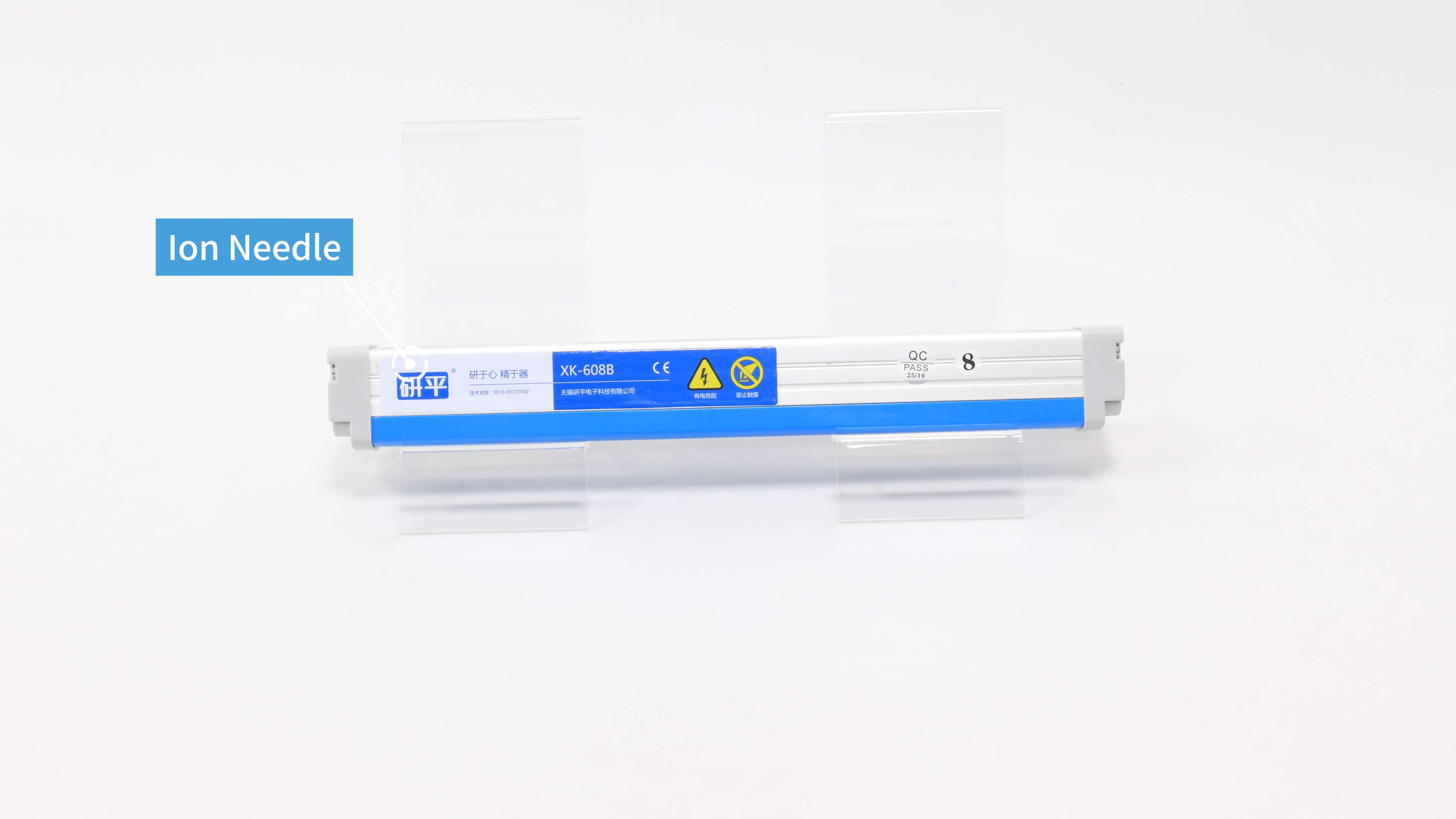

3     Electrode needles arranged in a straight line for more uniform ion distribution

Performance Parameter

  • parameter/Version
    XK-608B
  • Input voltage
    ≤15KV
  • Ion emission mode
    Corona type
  • Ion balance
    ≤±100V
  • Charge elimination speed
    0.1S
  • Charge elimination distance
    ≤100mm
  • Total length range
    300-4000mm
  • Effective range
    180-3880mm

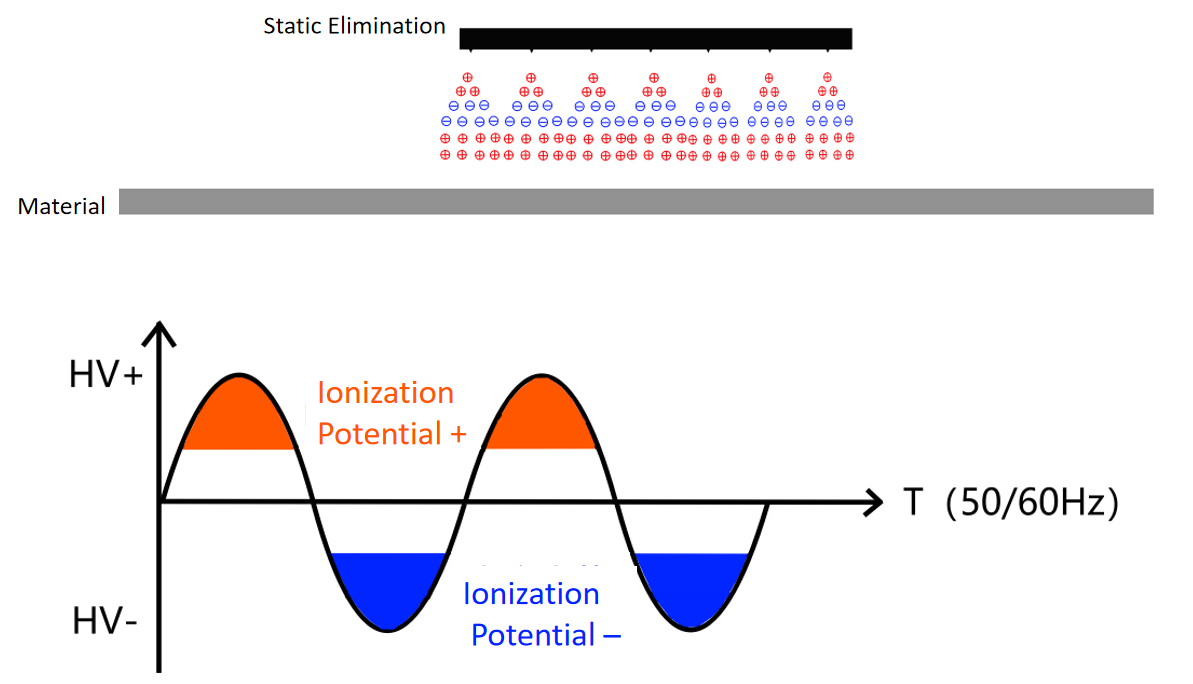

Working Mode

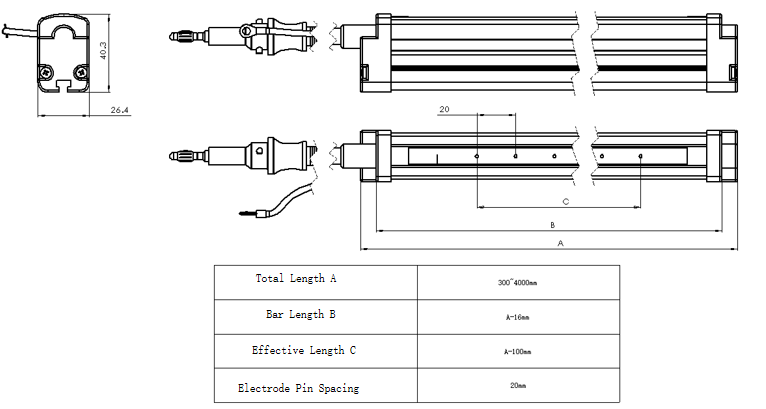

Product Size
