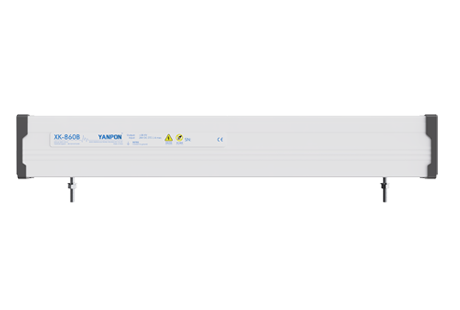

Long-distance Intelligent DC Static Eliminator

XK-860B
Automatically monitors and adjusts static elimination effect, static elimination distance: 100mm-1500mm.

Application Field

  • Functional Film Industry

  • Textile Industry

  • Soft Packaging Industry

Product Characteristics

1      Can automatically monitor and adjust static elimination effect.

2      Automatically monitors and adjusts the static elimination effect to ensure that the working environment always maintains the best static neutralization state.

3      Static elimination distance covers 100mm to 1500mm, easily coping with various long-distance static elimination needs.

4      Built-in power supply with 36KV 48W driving capability provides stable and strong power support for static elimination.

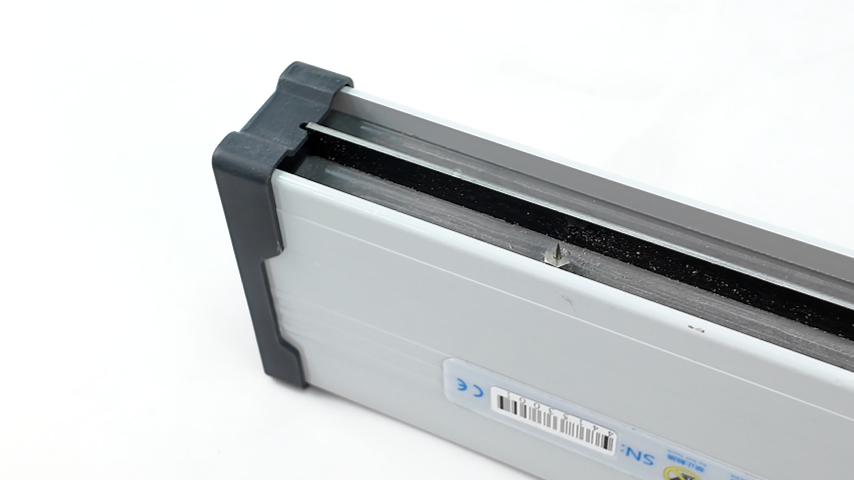

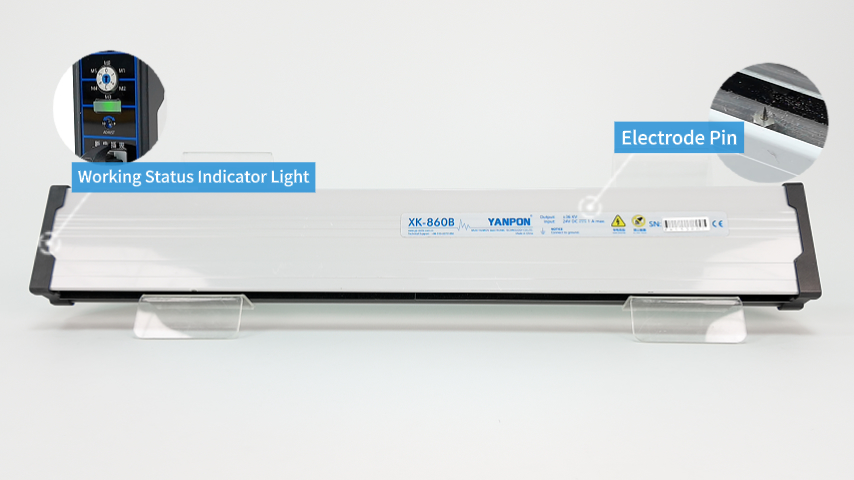

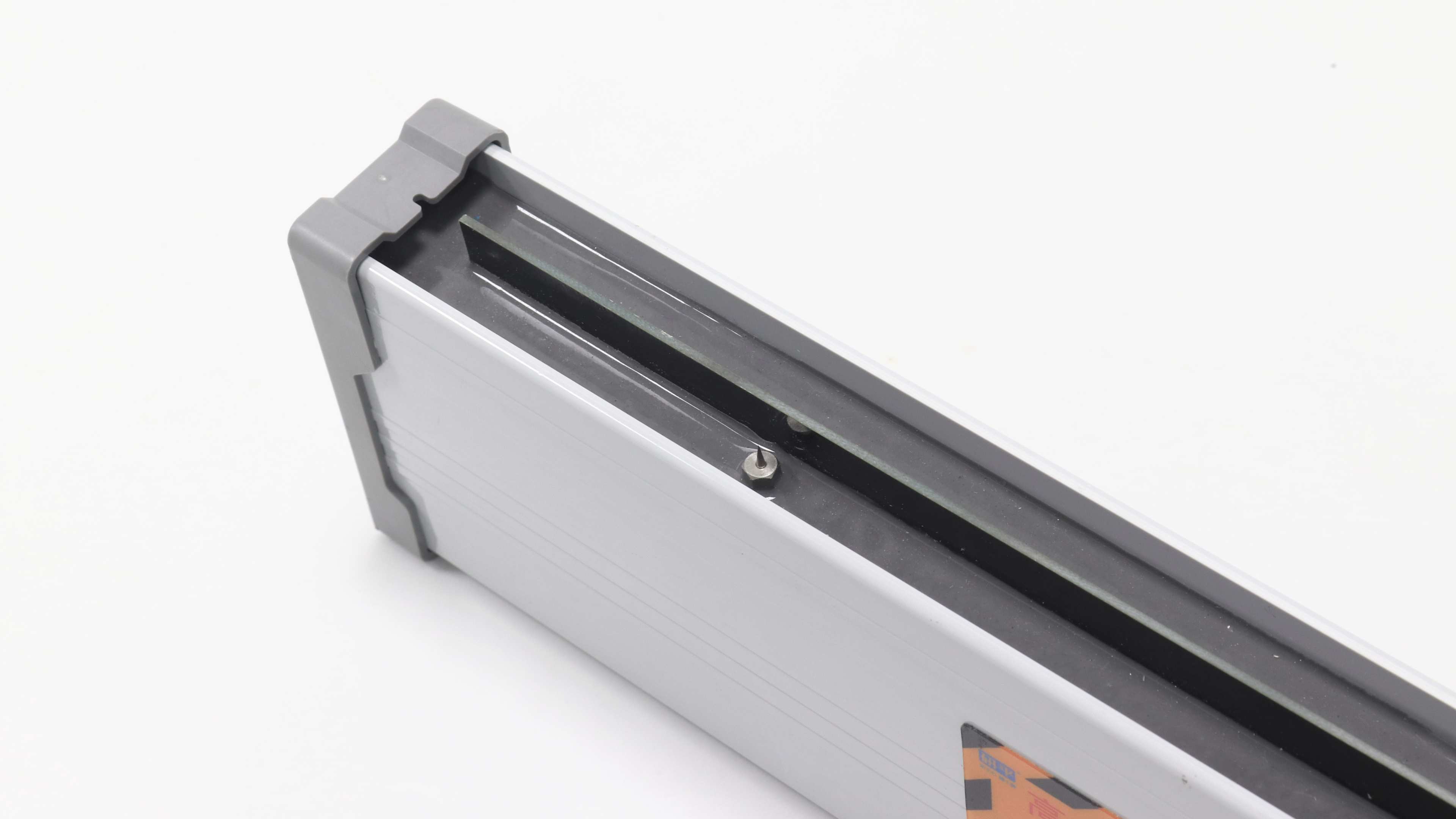

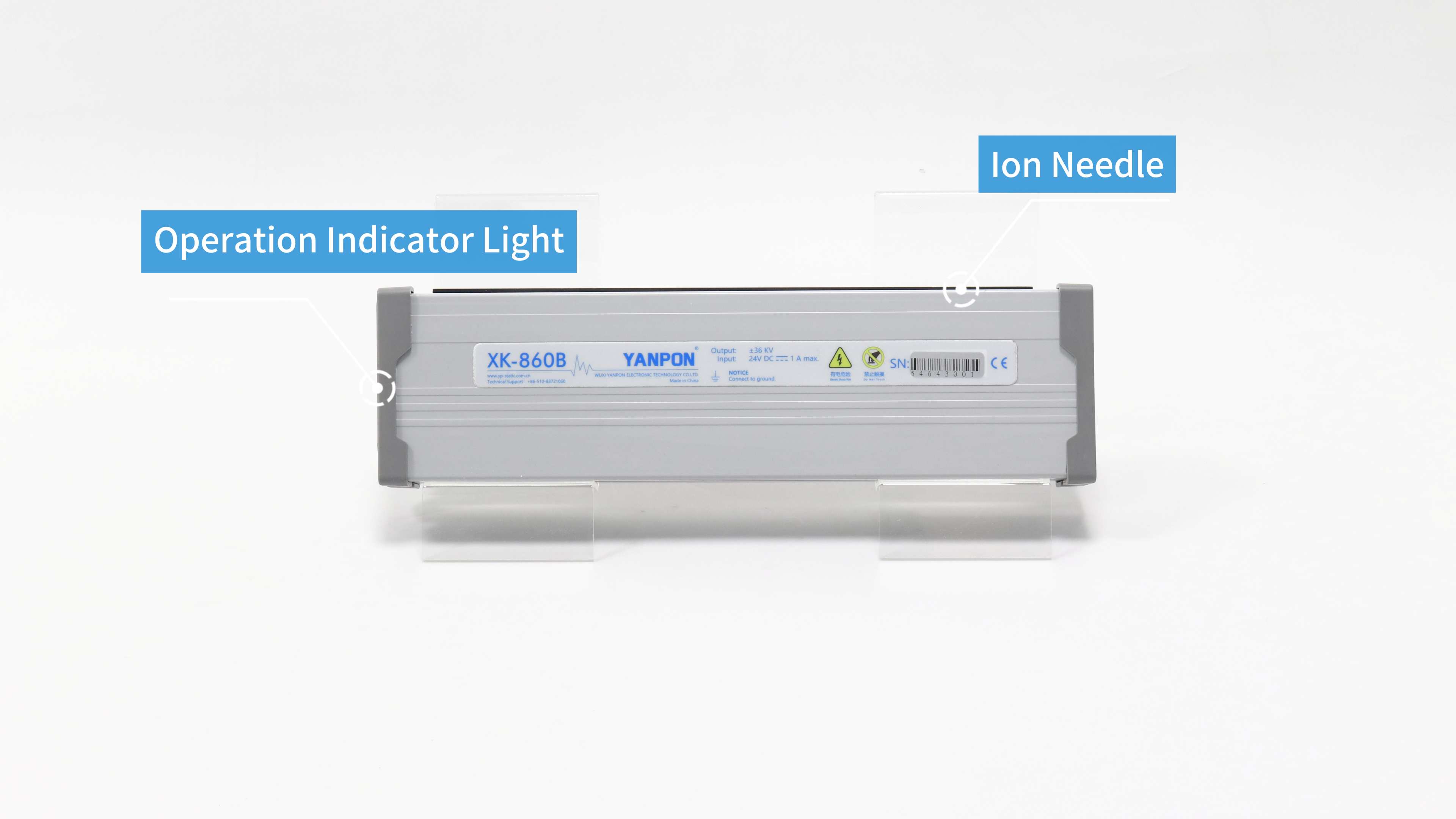

5      Tungsten needle material replaceable electrode design improves the durability and service life of the equipment, reducing maintenance costs.

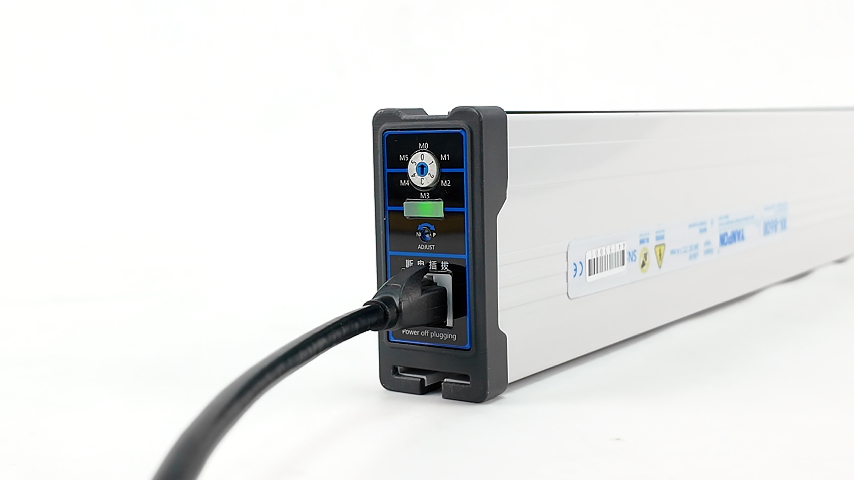

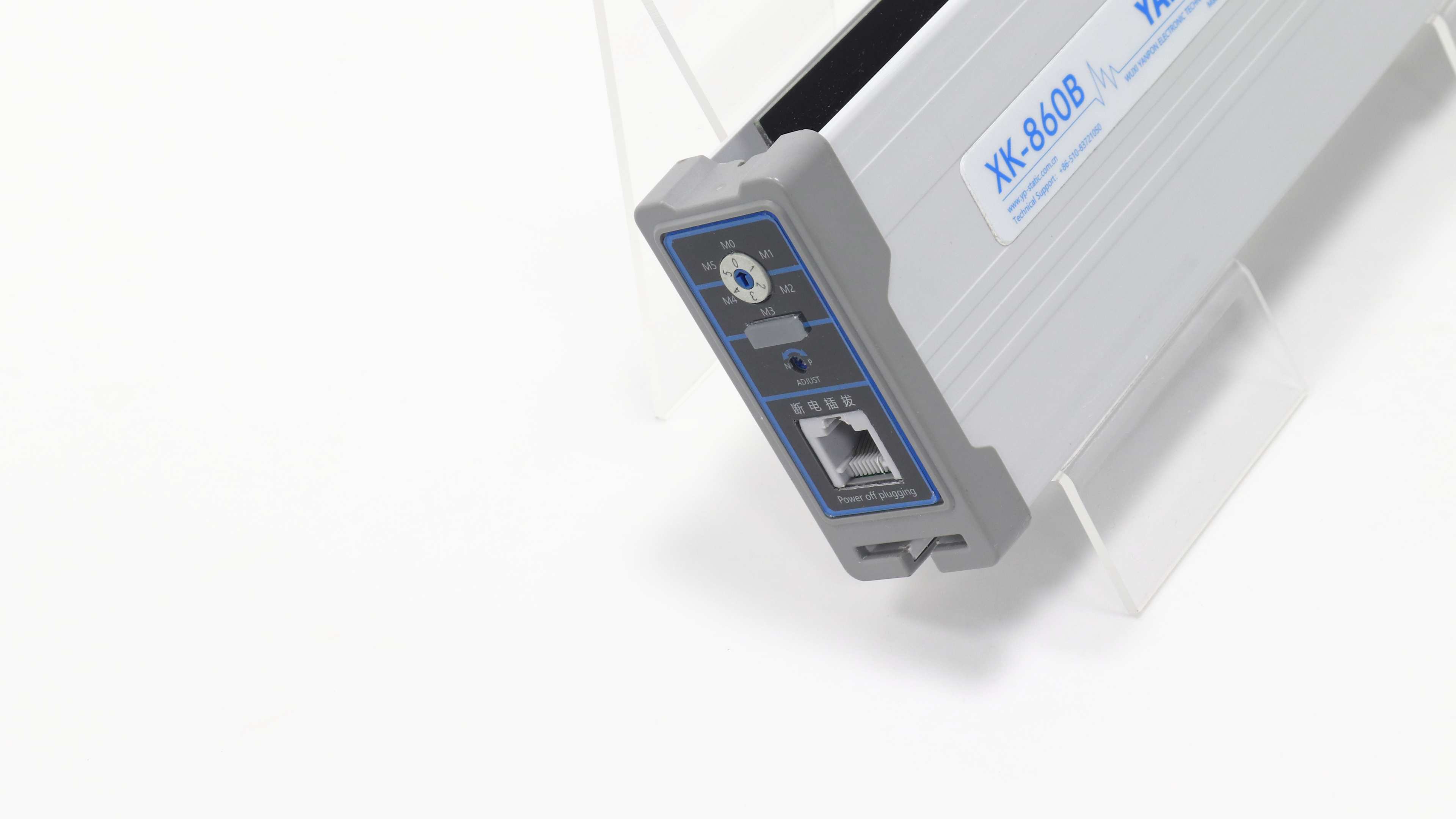

6      Provides 2 automatic modes and 3 manual modes, users can flexibly choose according to actual needs.

7      The total length is the effective length, achieving 100% full coverage and no dead angle design.

Performance Parameter

  • parameter/Version
    XK-860B
  • Input voltage
    24V±10%
  • Incoming current
    <2A
  • Input power
    <48W
  • Working voltage
    ±36KVDC
  • Ion generation mode
    Corona discharge
  • Emission electrode
    Tungsten needle
  • Charge elimination range
    200-1500mm
  • Static Elimination Time
    Mode 2 distance 0.6m <2s; Mode 1/4 distance 1m <5s; Mode 2/5 distance 1.5m <20s
  • Operating temperature
    0-55℃
  • Operating humidity
    35~70%RH(non-condensing)
  • Shell material
    PVC(flame retardant)
  • Functions
    Adjustable charge elimination balance (intelligent + manual); Replaceable electrode pins; 8 working modes adjustable; Abnormal alarm; Maintenance warning; High voltage abnormal protection; Power supply abnormal protection

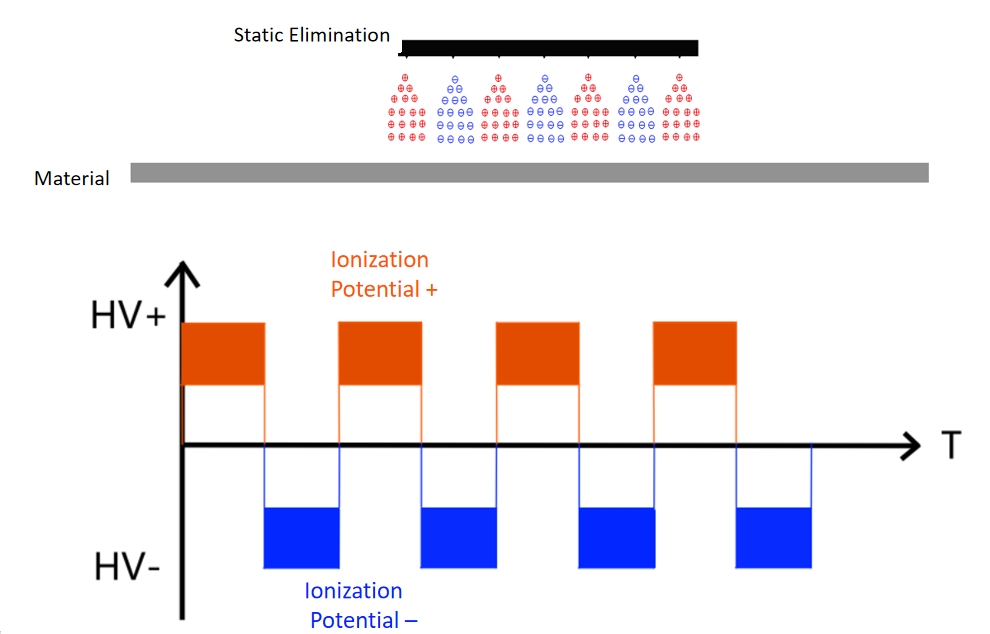

Working Mode


Electrification Effect

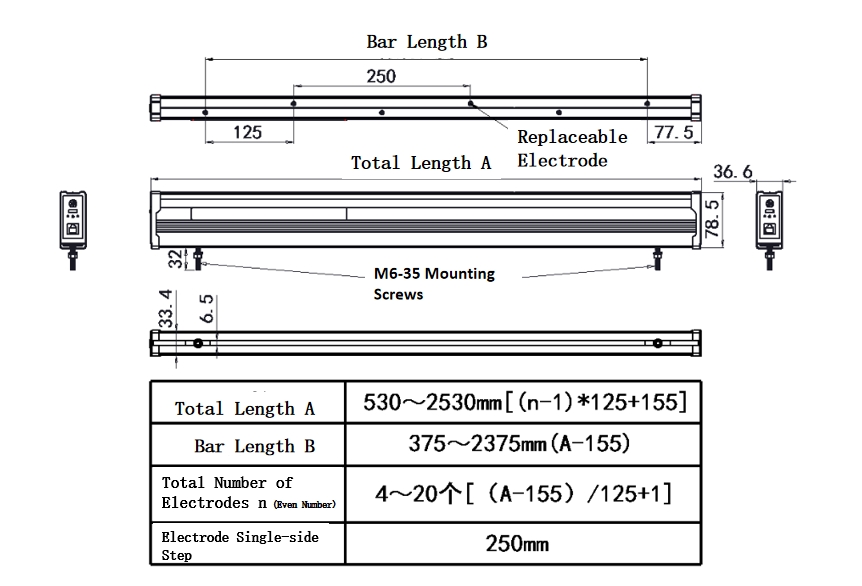

Product Size
