Application Field
-
Textile Industry
-
Soft Packaging Industry
Product Characteristics

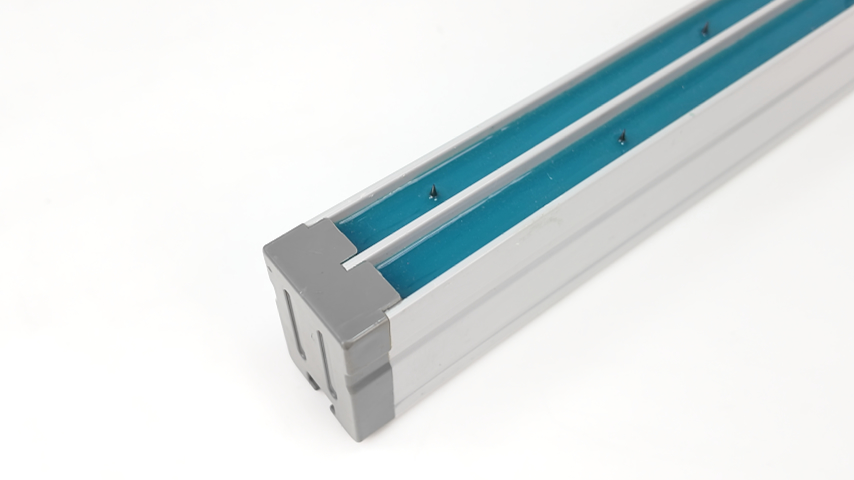

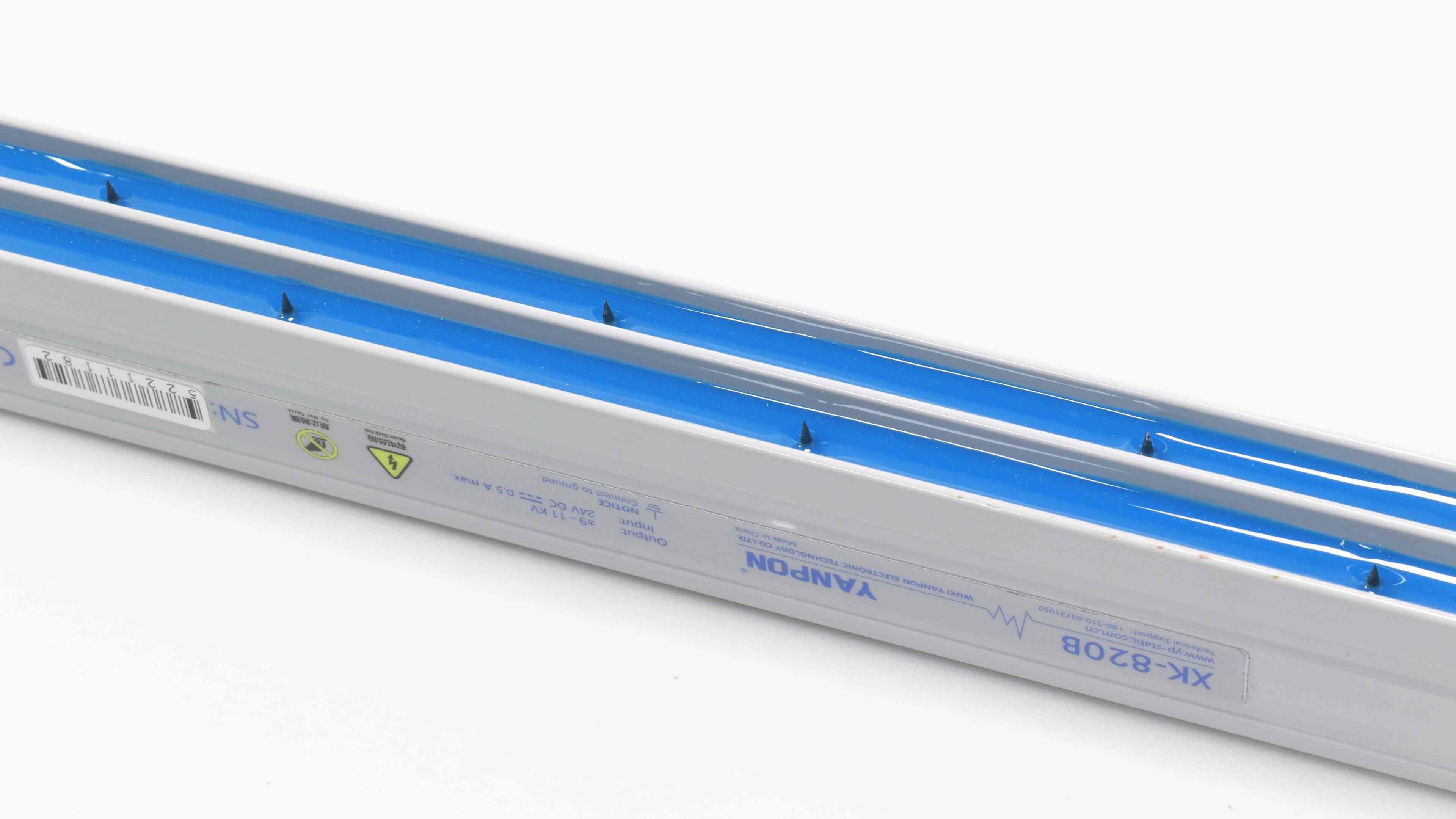

1 Double-row electrode design enhances the uniformity and coverage of the electrostatic field.
2 Covers a static elimination distance of 100mm to 500mm, accurately and efficiently neutralizes static charges in the target area.
3 High-voltage abnormal alarm output to prevent equipment damage or production interruption.

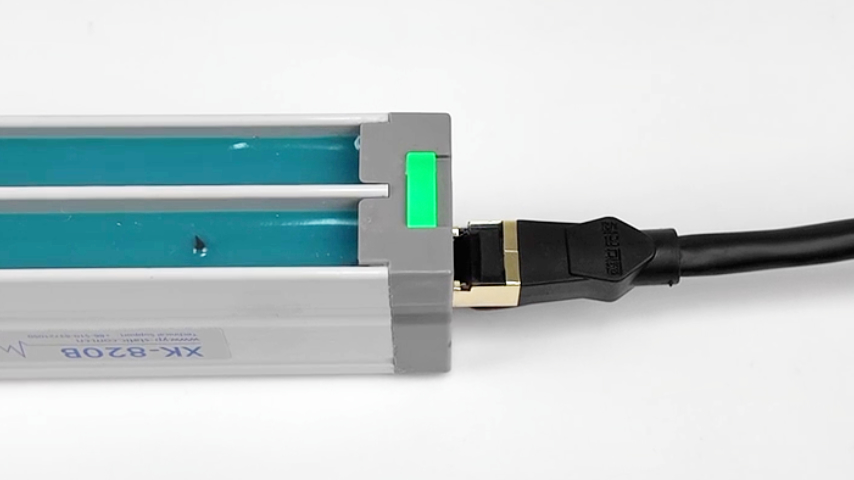

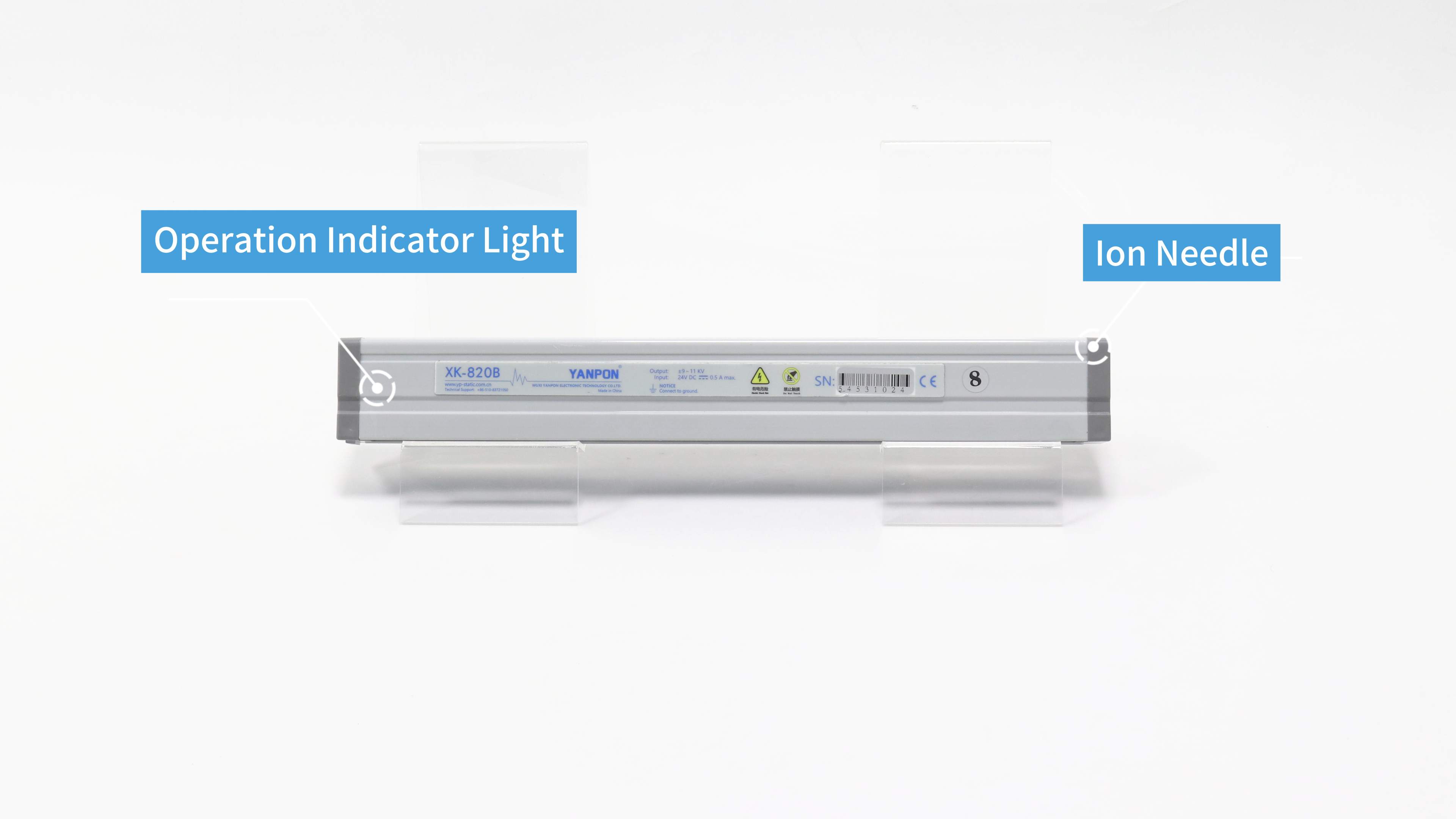

4 Multiple status indicator lights for convenient daily management and fault diagnosis.
5 Cleanliness reminder function to promptly alert users for cleaning and maintenance
Performance Parameter
- parameter/VersionXK-820B
- Ion generation modeCorona discharge
- Voltage application modePulsed positive and negative high voltage alternating output/±8-12KV
- Ion balance range<±100V
- Charge elimination time<1S
- Discharge short-circuit alarmIndicator light alarm
- High voltage abnormal alarmIndicator light alarm
- Input voltageDC24V~36V±10%
- Output power<10W
- Electrode materialTungsten needle
- Operating temperature0℃~45℃
- Operating humidity35~85%RH

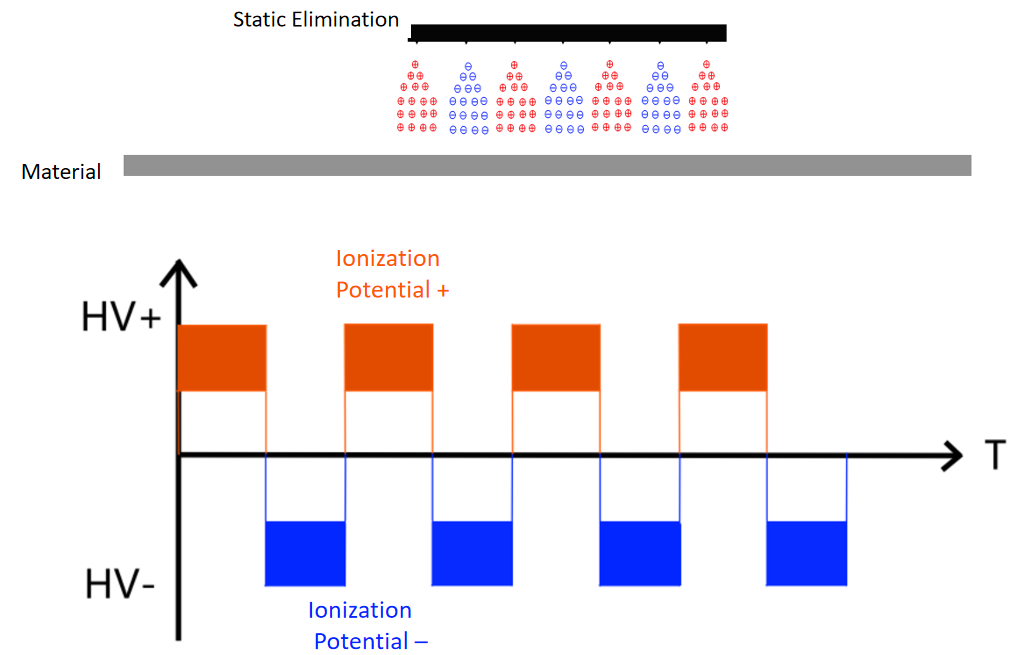

Working Mode

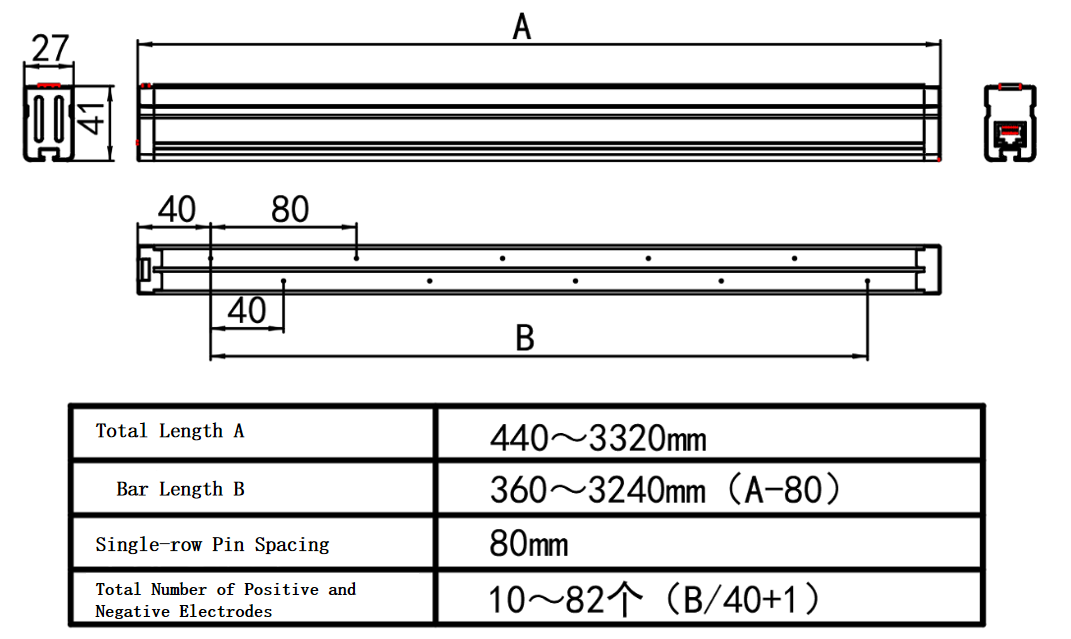

Product Size
