Application Field
-
Semiconductor Industry
-
Functional Film Industry
-
Lithium Battery Industry
-
Electronics Industry
-
Textile Industry
-
Soft Packaging Industry
-
Advertising Industry
Product Characteristics
1 Adjustable positive and negative ion output frequency, suitable for different static elimination distances to achieve fast static elimination speed.
2 Enables online communication to monitor working status.

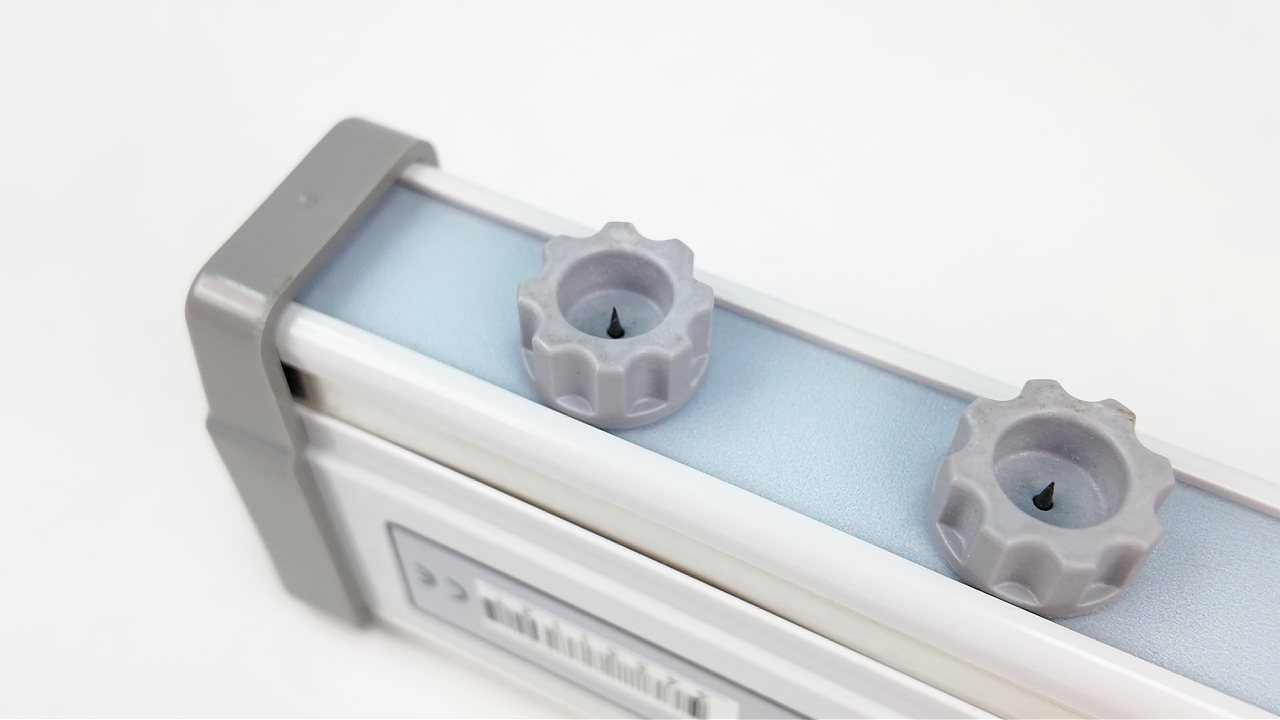

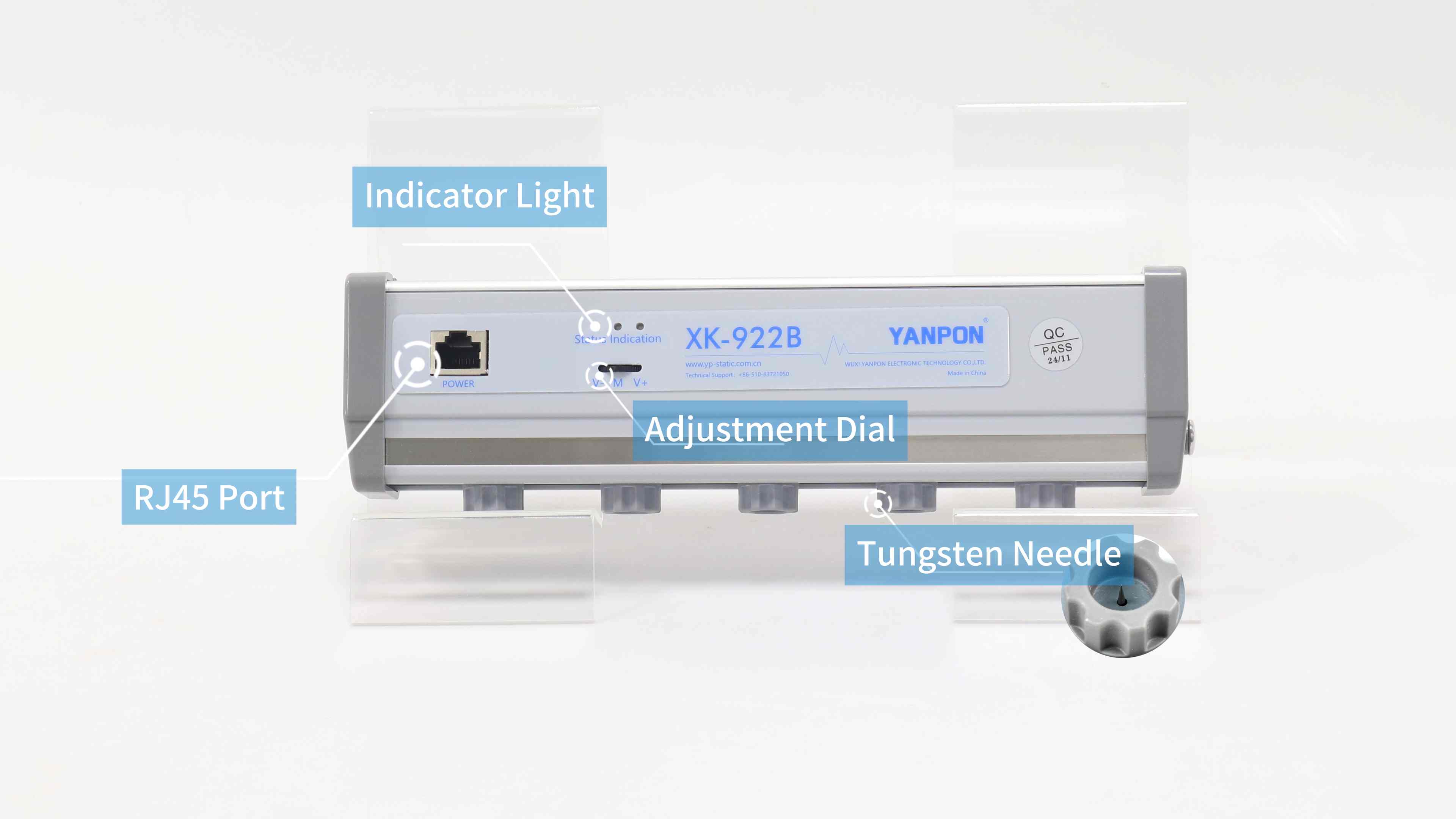

3 Replaceable individual electrode needles.
4 Short-circuit protection device and indicator light reminder for safe use
Performance Parameter
- parameter/VersionXK-922B
- Ion generation modeCorona discharge
- Voltage application modePulsed AC / ±7000V
- Ion balance range≤±30V(manual) ≤±100V(automatic)
- Charge elimination time＜3S（300mm）
- Discharge short-circuit alarmIndicator light alarm
- High voltage abnormal alarmIndicator light alarm
- Input voltageDC24V~36V±10%
- Output power＜15W
- Electrode materialTungsten needle
- Operating temperature0℃~50℃
- Operating humidity35~85%RH
- CommunicationRS485(MODBUS-RTU)
- Air supply interfaceSL4-M5
- Air supply pressure0.1~0.5MPa (recommended 0.3MPa)

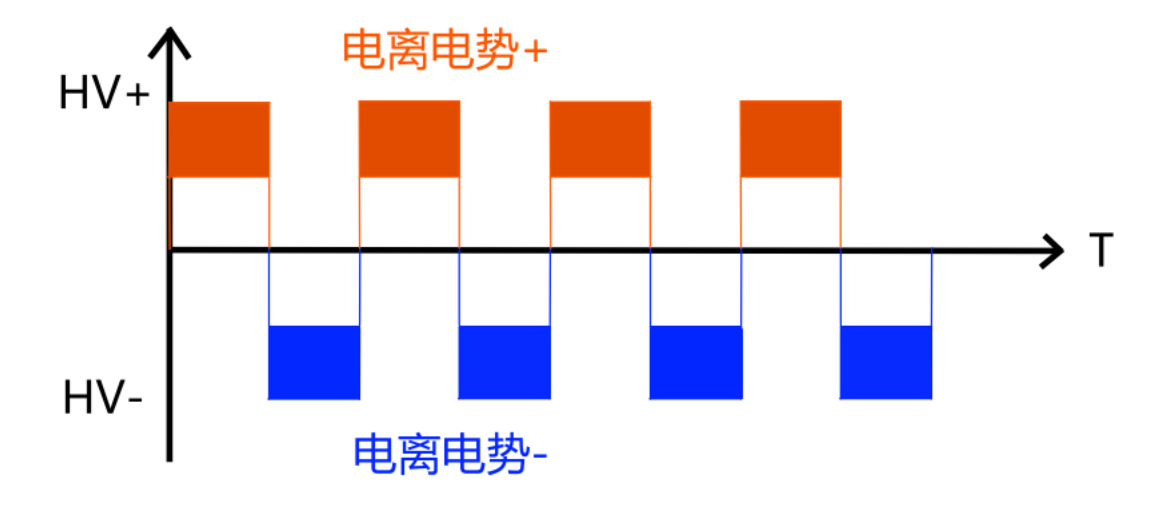

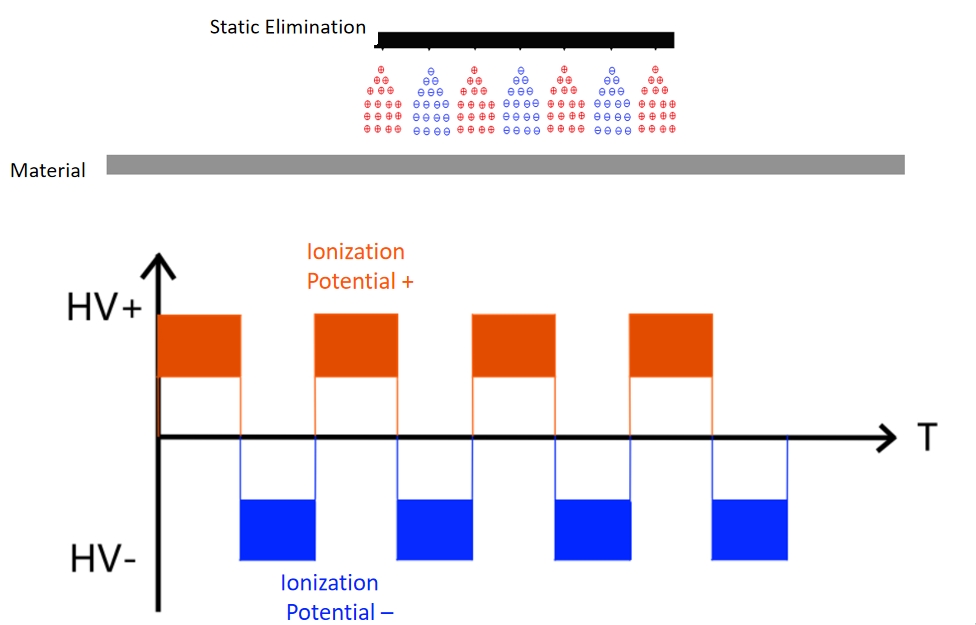

Working Mode

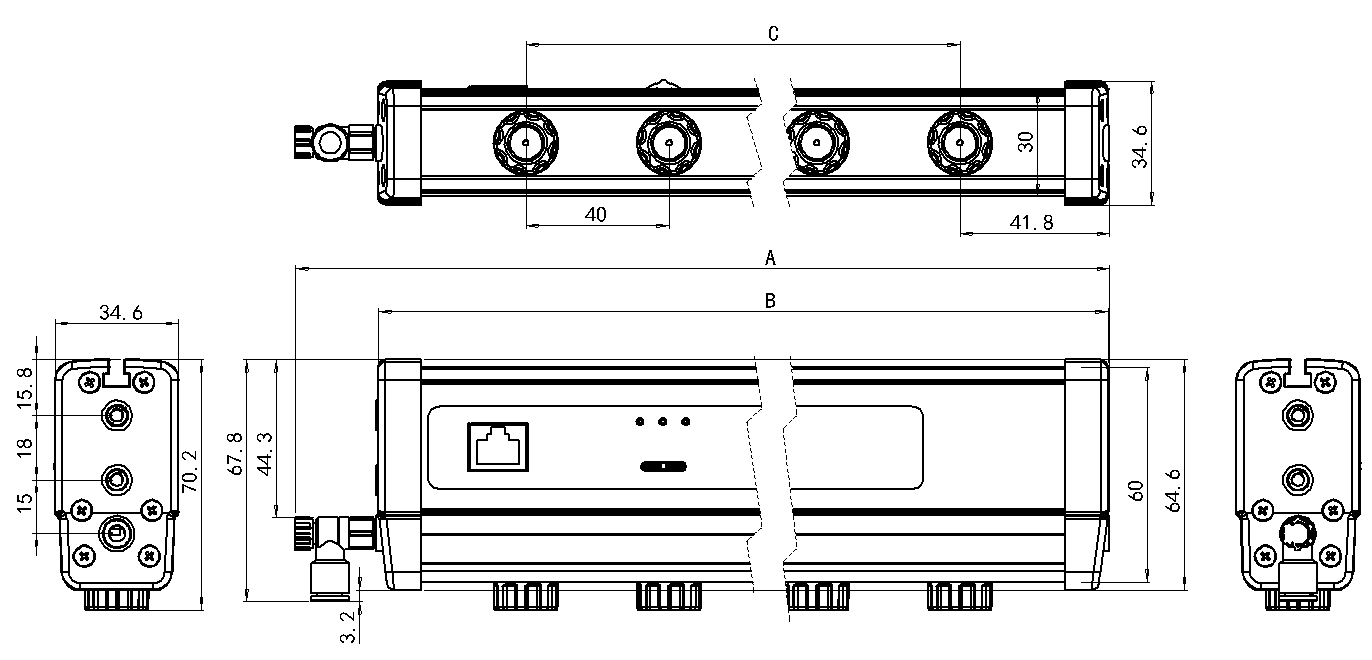

Product Size
