Application Field
Product Characteristics
1 High adaptability, better meeting the diverse static elimination needs of the advertising industry

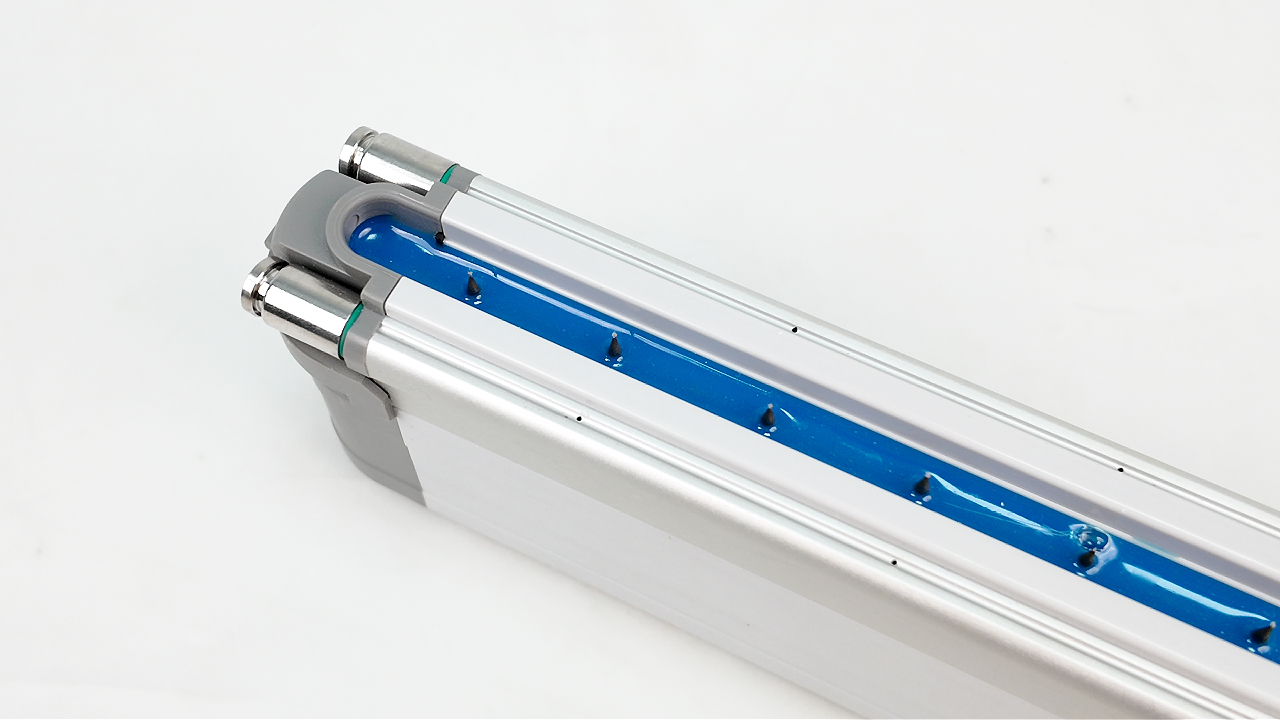

2 Replaceable needle component combined with excellent sealing structure to ensure stable operation
3 Short-circuit protection function, which quickly cuts off the power supply in case of short circuit, ensuring safety
Performance Parameter

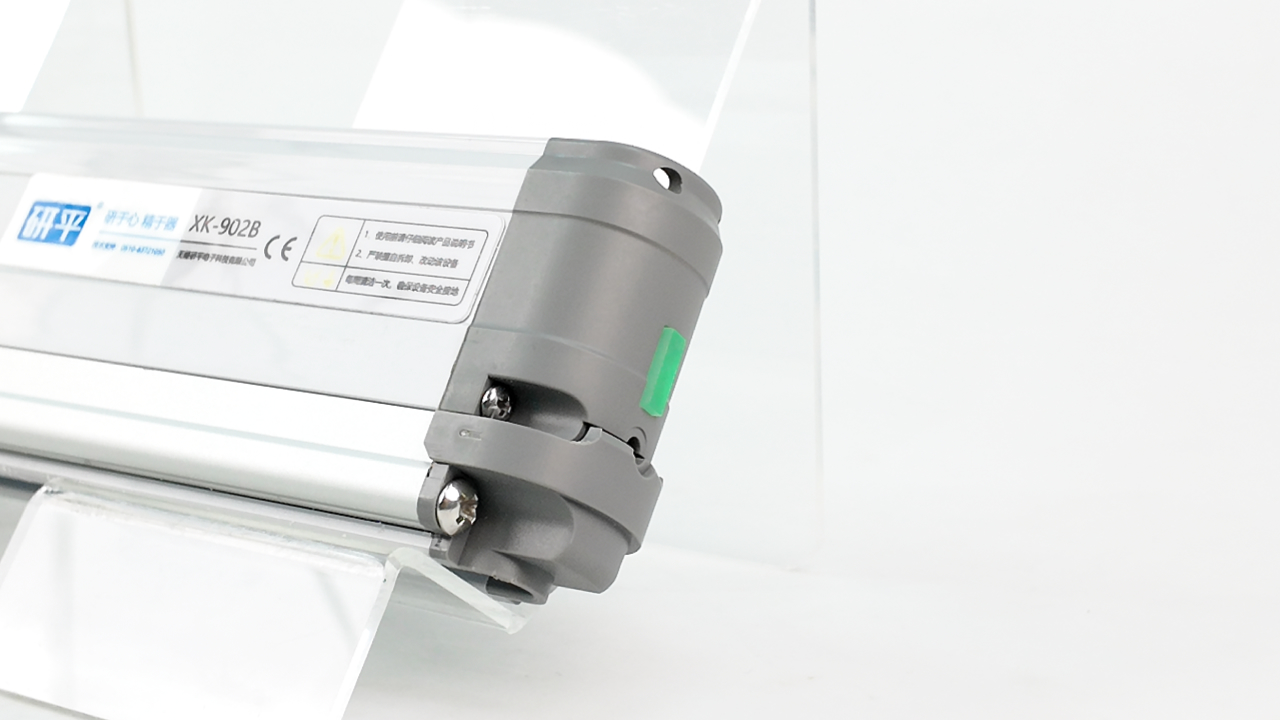

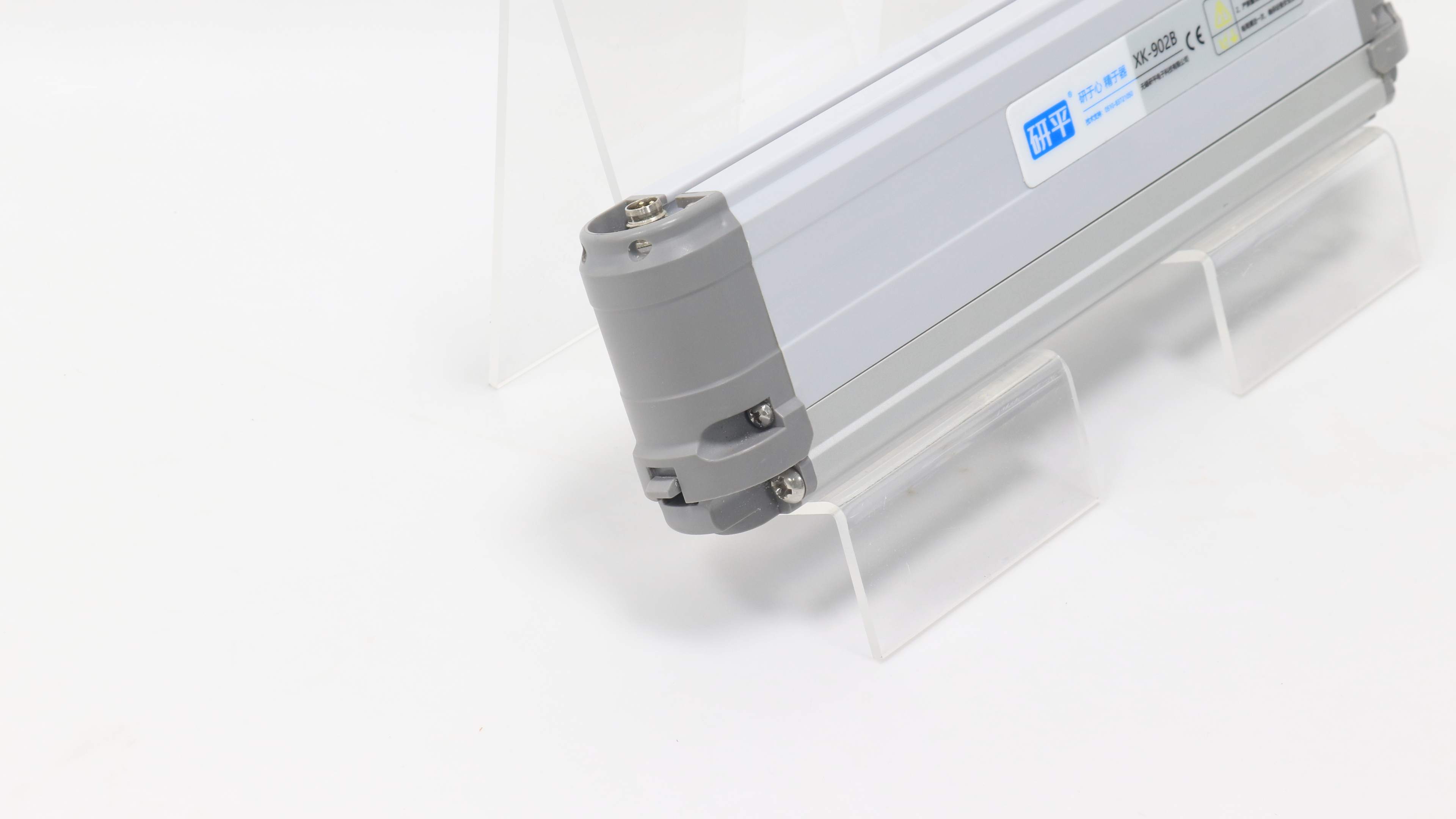

- Parameter ModelXK-902B

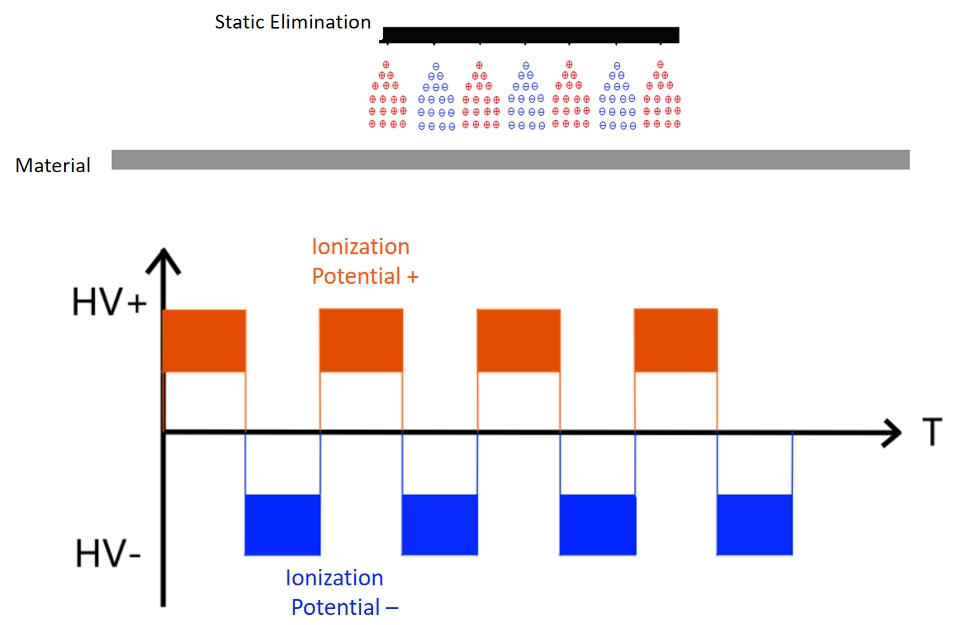

- Ion Generation MethodCorona Discharge Method
- Static Elimination PerformanceLess than 5s (under optimal installation distance)
- Ion Balance Range≤±100V
- Installation Distance30~50mm (optimal)
- Main FunctionsDischarge short-circuit alarm needle holder module abnormal alarm
- Rated Power Supply VoltageDC24V~36V±10%
- Rated Power Consumption300mA (at DC24V) / 200mA (at DC36V)
- Rated Output Power＜10W
- Rated Operating Frequency40Hz

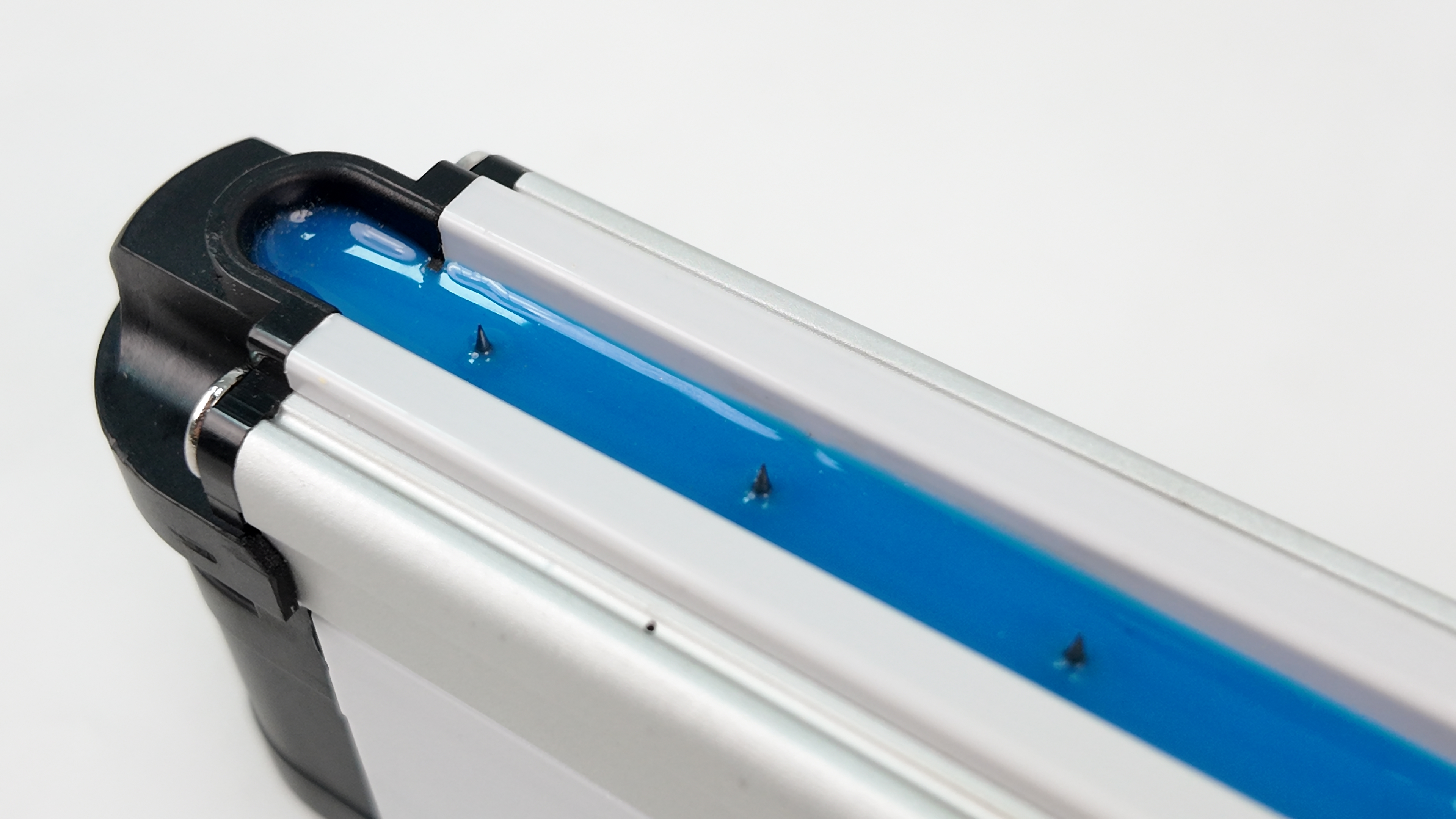

- Electrode Needle MaterialTungsten Steel
- Main Unit MaterialFlame-retardant PVC
- End Cover MaterialFlame retardant ABS
- Environmental Adaptability Ambient Temperature-(10)~+40℃
- Environmental Adaptability Ambient Humidity35~65%RH
