Application Field
-
Semiconductor Industry
-
Functional Film Industry
-
Lithium Battery Industry
-
Electronics Industry
-
Textile Industry
-
Soft Packaging Industry
-
Advertising Industry

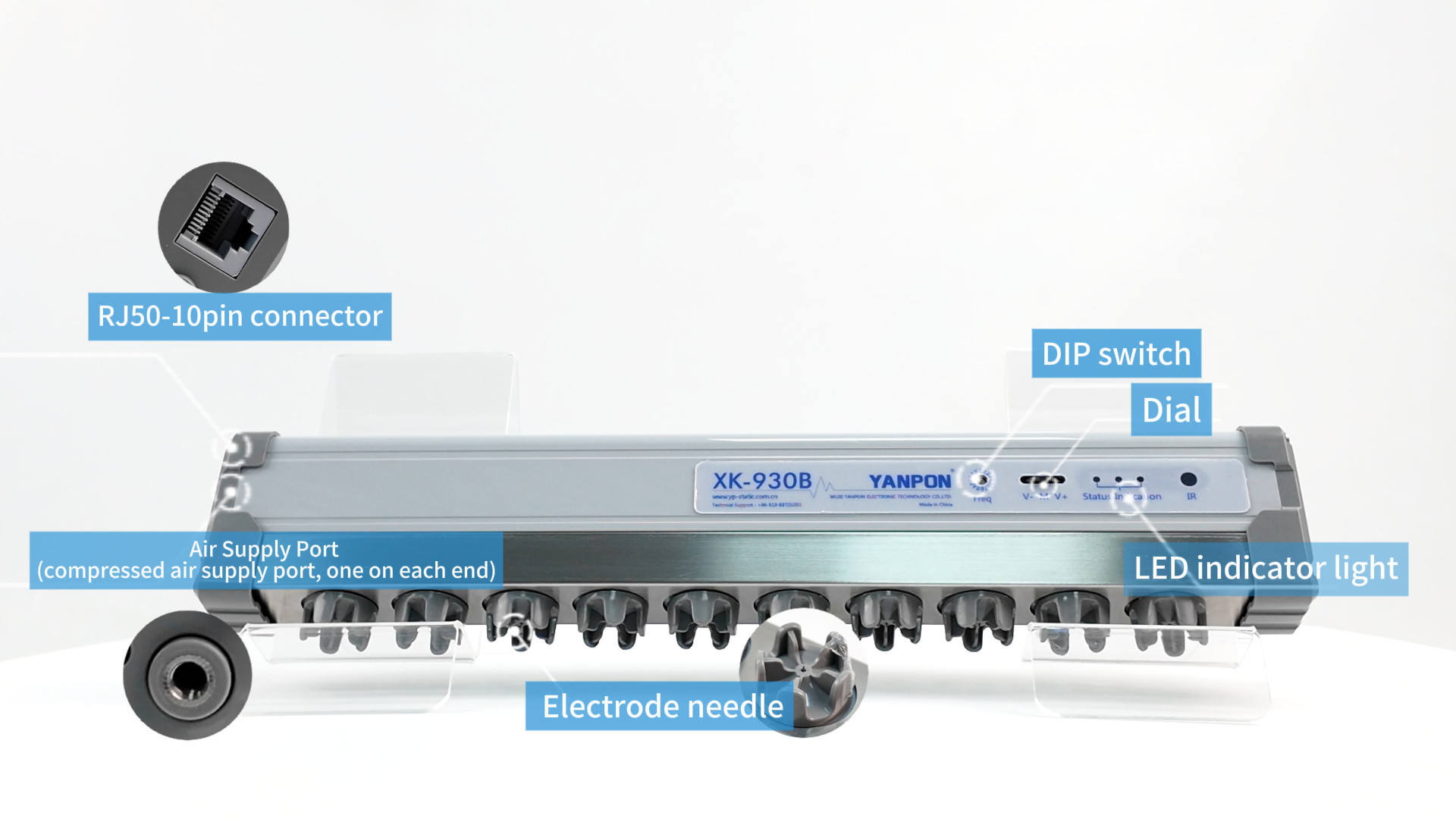

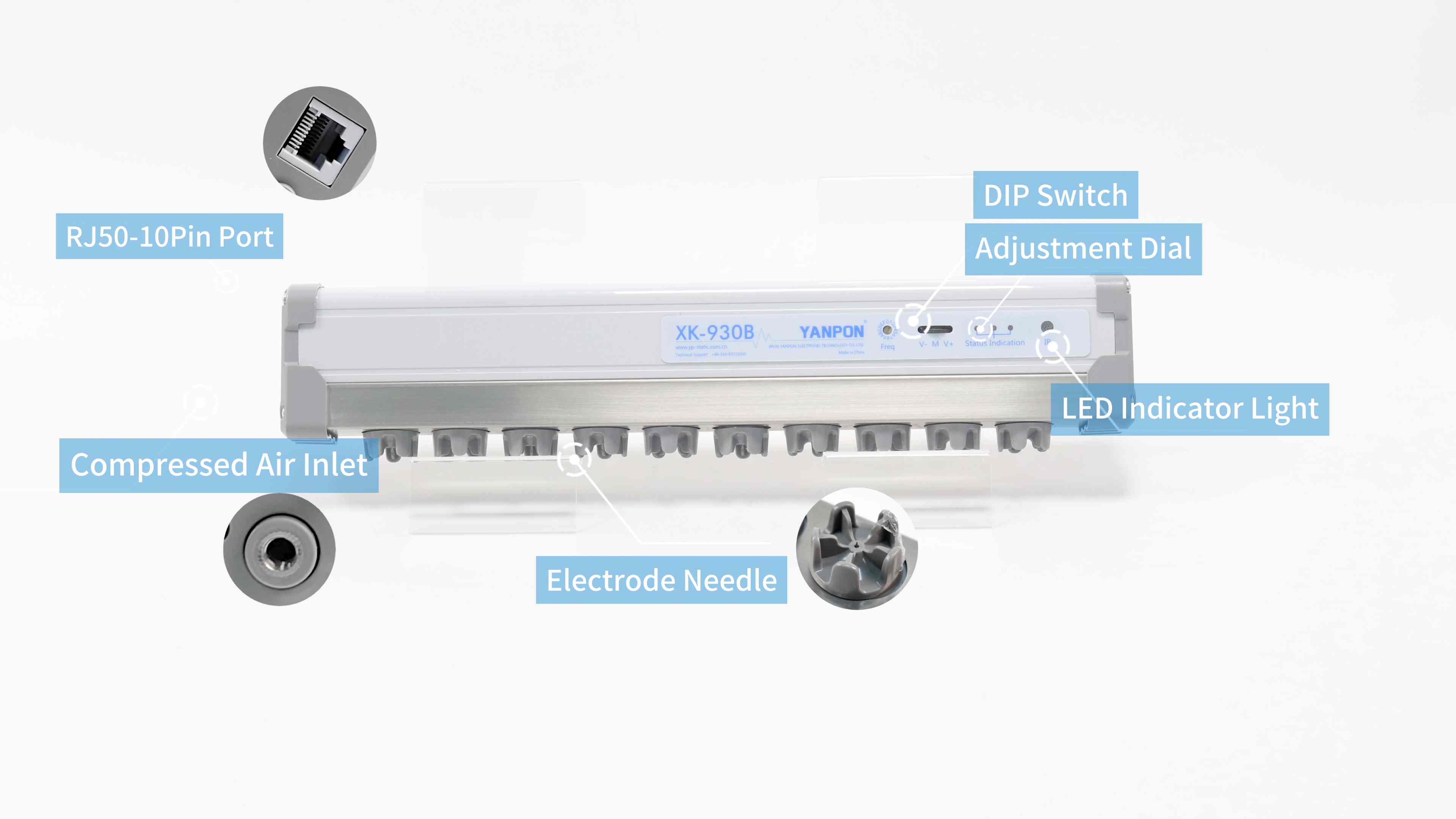

Product Characteristics

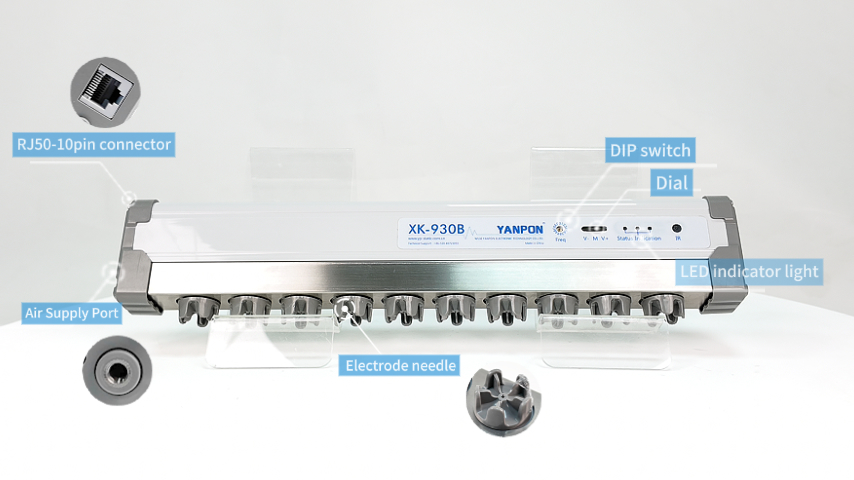

1 Supports RS485 communication protocol to realize remote management and control of the equipment
2 Supports on-body parameter adjustment and remote parameter adjustment to meet diverse static elimination needs
3 Adjustable dial design for precise adjustment and thorough static elimination
4 LED indicator light for real-time monitoring of equipment operation status
5 Alarm output and enable control functions, which automatically cut off the high-voltage output when the equipment is abnormal to ensure the safety of the equipment and personnel

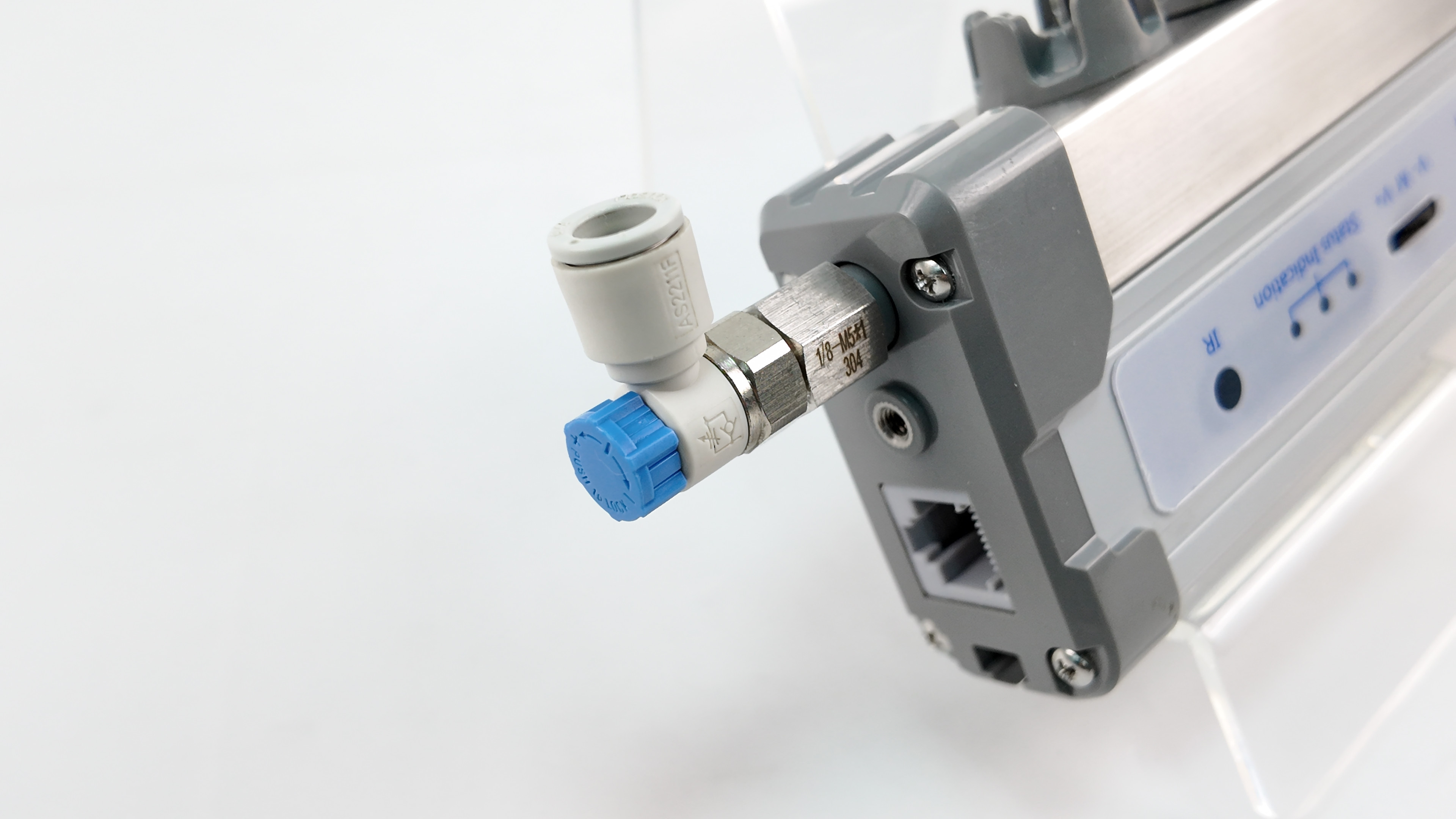

6 The air pipe supplies clean and dry air to prevent dust accumulation on the electrodes and improve the static elimination range and speed
7 Equipped with an infrared remote control, supporting remote parameter adjustment and automatic mode (optional)
Performance Parameter

- Parameter ModeXK-930B
- Ion Generation MethodCorona Discharge
- Voltage Application MethodPulsed AC±7000V
- Ion Balance Range≤±30V (Distance Matching)
- Rated Power SupplyDC24V~36V±10%
- Rated Current Consumption400mA (at 24V), 300mA or less (at 36V)
- Pollution Degree2
- Working Frequency0.1-100HZ (Optional)
- Airflow Pressure<0.5MPa
- Main FunctionsShort-Circuit Protection Alarm, Fault Alarm Output, Ion Quantity Self-Balance Adjustment, ExternalIon Quantity Display
- Elimination Time≤2s
- Effective Elimination Range50-2000mm
- Ambient Temperature0℃~40℃
- Ambient Humidity35~85%RH (No Condensation)
- Communication FunctionRS485
- Duty Cycle10%-90%
- Air Supply Pressure≤0.5MPa
- Shell MaterialABS·Stainless Steel
- End Cover MaterialFlame-Retardant ABS

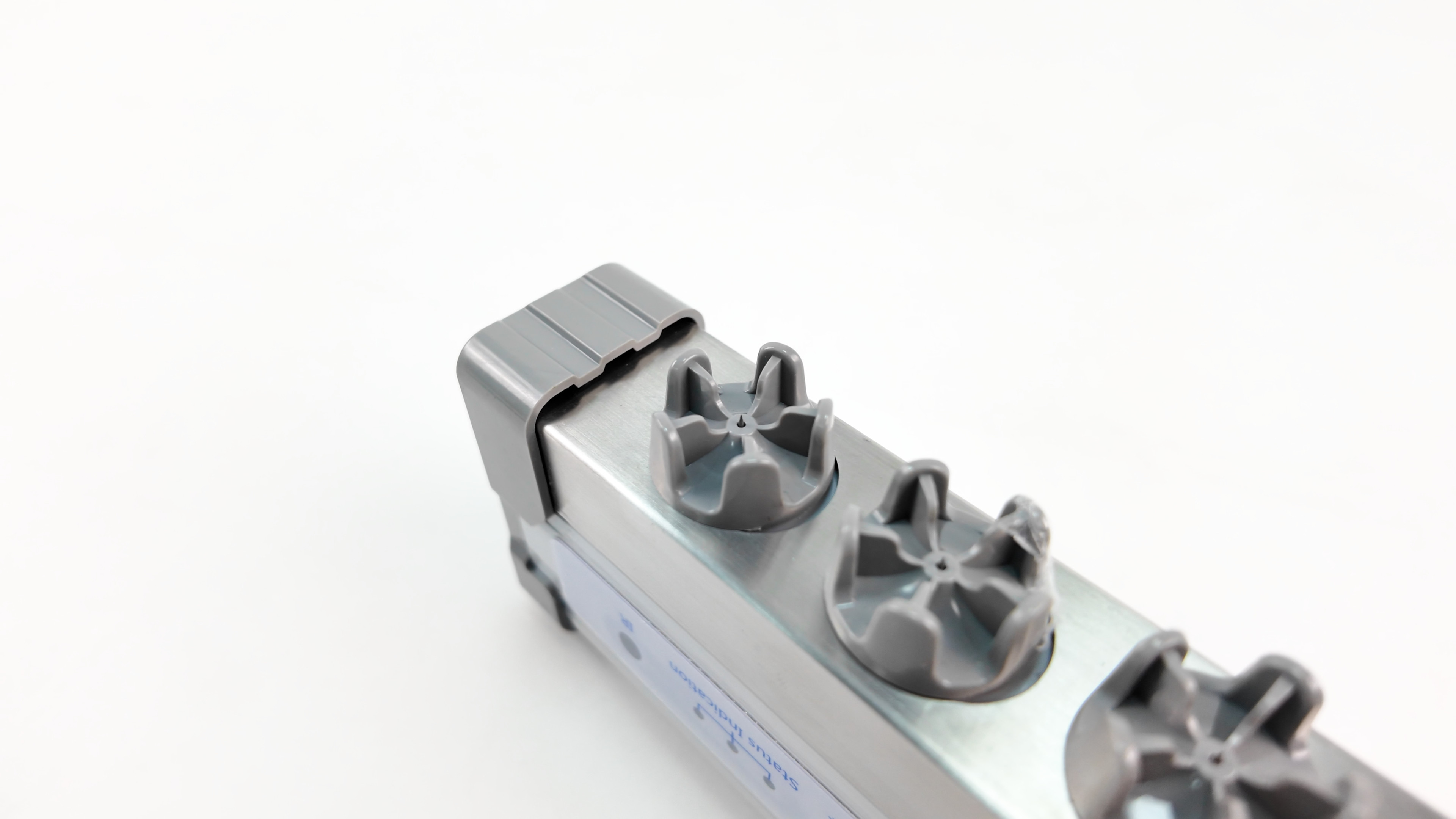

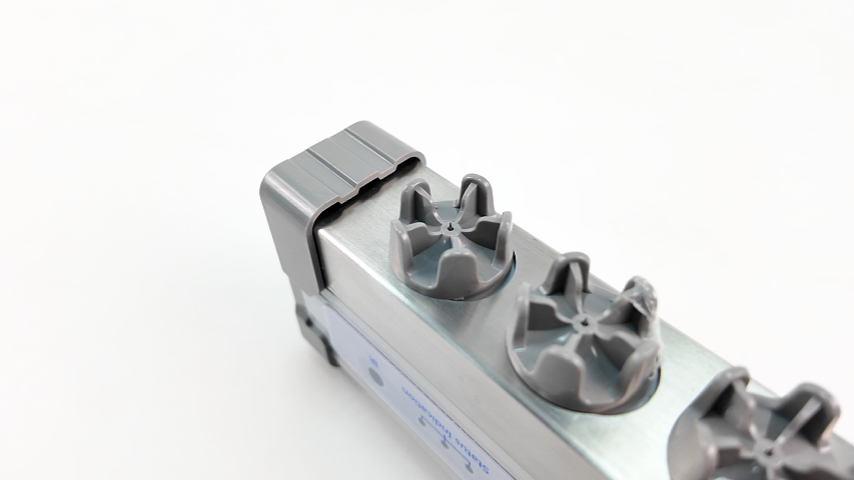

- Electrode NeedleTungsten Needle
- WeighThe shortest bar is about 873g (each additional needle increases the weight by 40g)
Working Mode

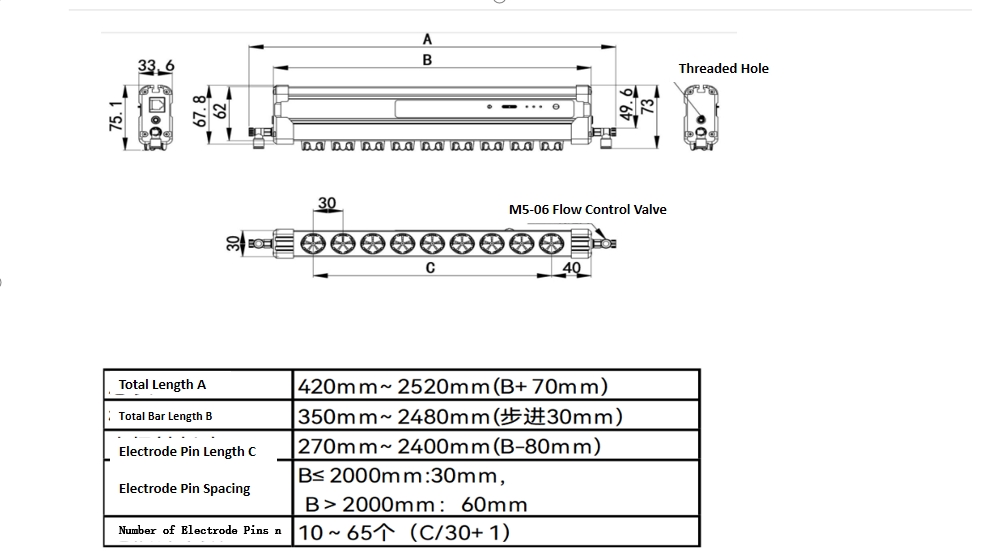

Product Size
