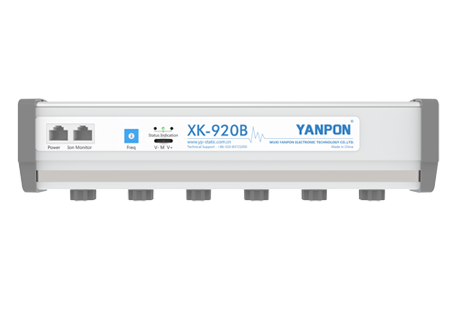

Intelligent DC Static Eliminator

XK-920B
Equipped with ion balance detection function, ion balance within ±35V

Application Field

  • Semiconductor Industry

  • Functional Film Industry

  • Lithium Battery Industry

  • Electronics Industry

  • Textile Industry

  • Soft Packaging Industry

  • Advertising Industry

Product Characteristics

1    The output frequency of positive and negative ions is adjustable, suitable for different static elimination distances to achieve fast static elimination speed

2     Enables online communication and monitors working status (can be connected to RS485 communication, allowing users to perform real-time remote monitoring and data transmission, facilitating user management and maintenance)

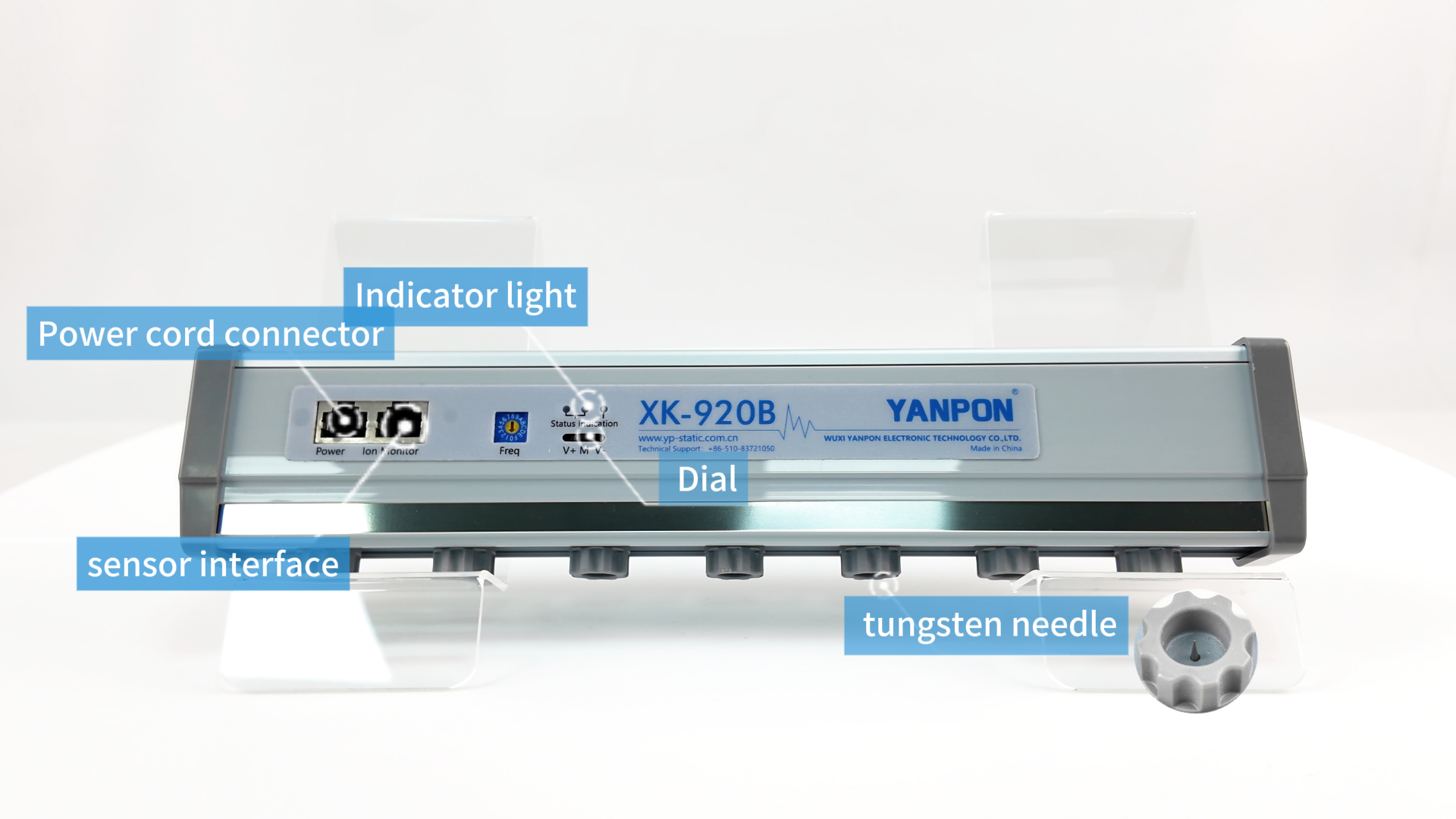

3    Anti-electrical shock design to avoid accidental touch injury to the human body (electrode needles can be replaced individually)

4    Physical dial design to support fine adjustment of positive and negative voltages


Performance Parameter

  • Parameter Model
    XK-920B
  • Ion Generation Method
    Corona Discharge
  • Voltage Application Method
    Pulsed AC/±7000V
  • Ion Balance Range
    ≤30V
  • Installation Distance
    20-1800mm
  • Needle Spacing
    40mm, 60mm
  • Discharge Short-Circuit Alarm
    Output High Level, Stop Ion Generation
  • Output Enable Error
    Output High Level, Stop Ion Generation
  • Sensor Connection Error
    Output High Level, Stop Ion Generation
  • Communication Function
    RS-485
  • Power Supply Voltage
    DC24V~36V±10%
  • Power Consumption
    500mA (DC24V), 300mA (DC36V)
  • Overvoltage Category
  • Pollution Degree
    2
  • Main Functions
    Short-Circuit Discharge Alarm, Input Enable Error Alarm, Sensor Connection Error Alarm

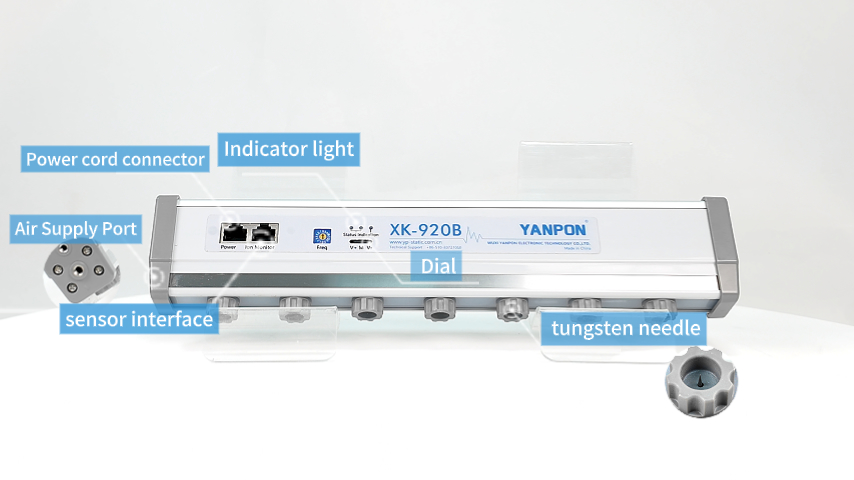

  • Air Supply Connection Port
    SL4-M5
  • Air Supply Pressure
    0.1MPa-0.5MPa

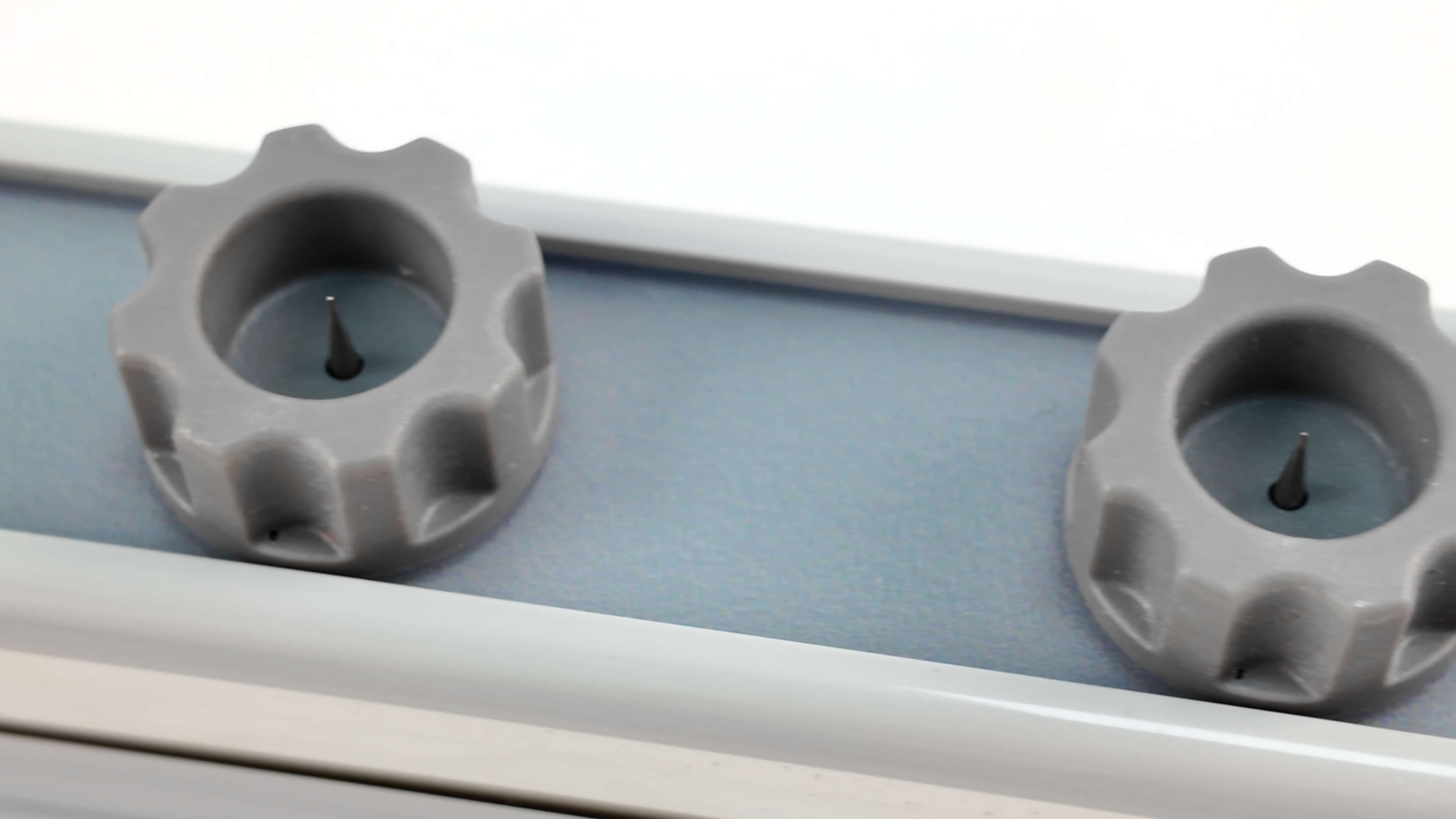

  • Electrode Material
    Tungsten Needle, Silicon Needle
  • Main Body Material
    PBT
  • Working Temperature
    0℃~40℃
  • Working Humidity
    35~85%RH

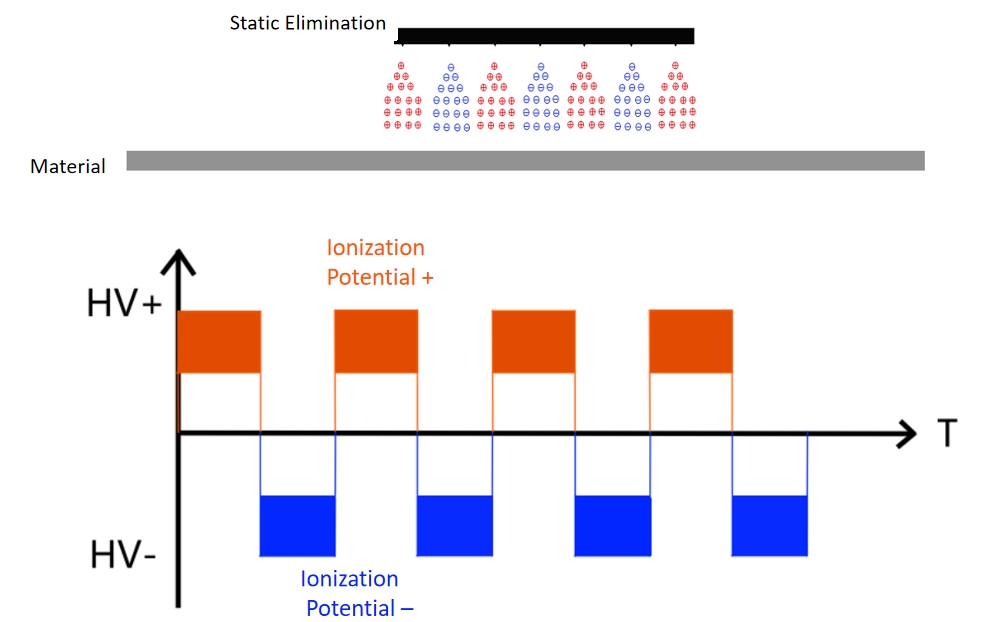

Working Mode

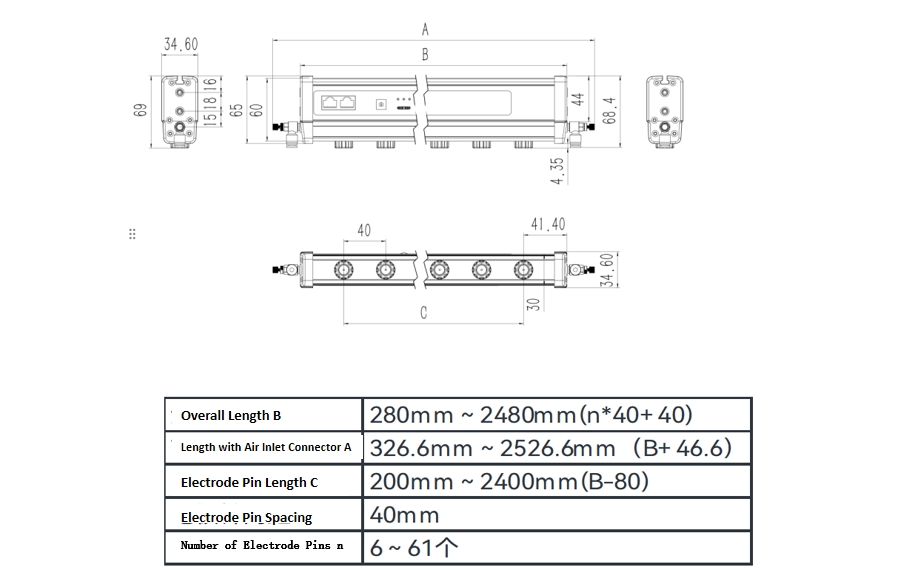

Product Size
