Application Field
-
Semiconductor Industry
-
Functional Film Industry
-
Lithium Battery Industry
-
Electronics Industry
-
Textile Industry
-
Soft Packaging Industry
-
Advertising Industry
Product Characteristics
1 Considerate hand protection to ensure personnel safety
2 Equipped with anti-electrical shock function to ensure absolute safety of users during operation
3 Uses 24V DC instead of AC to avoid wire routing through drag chains

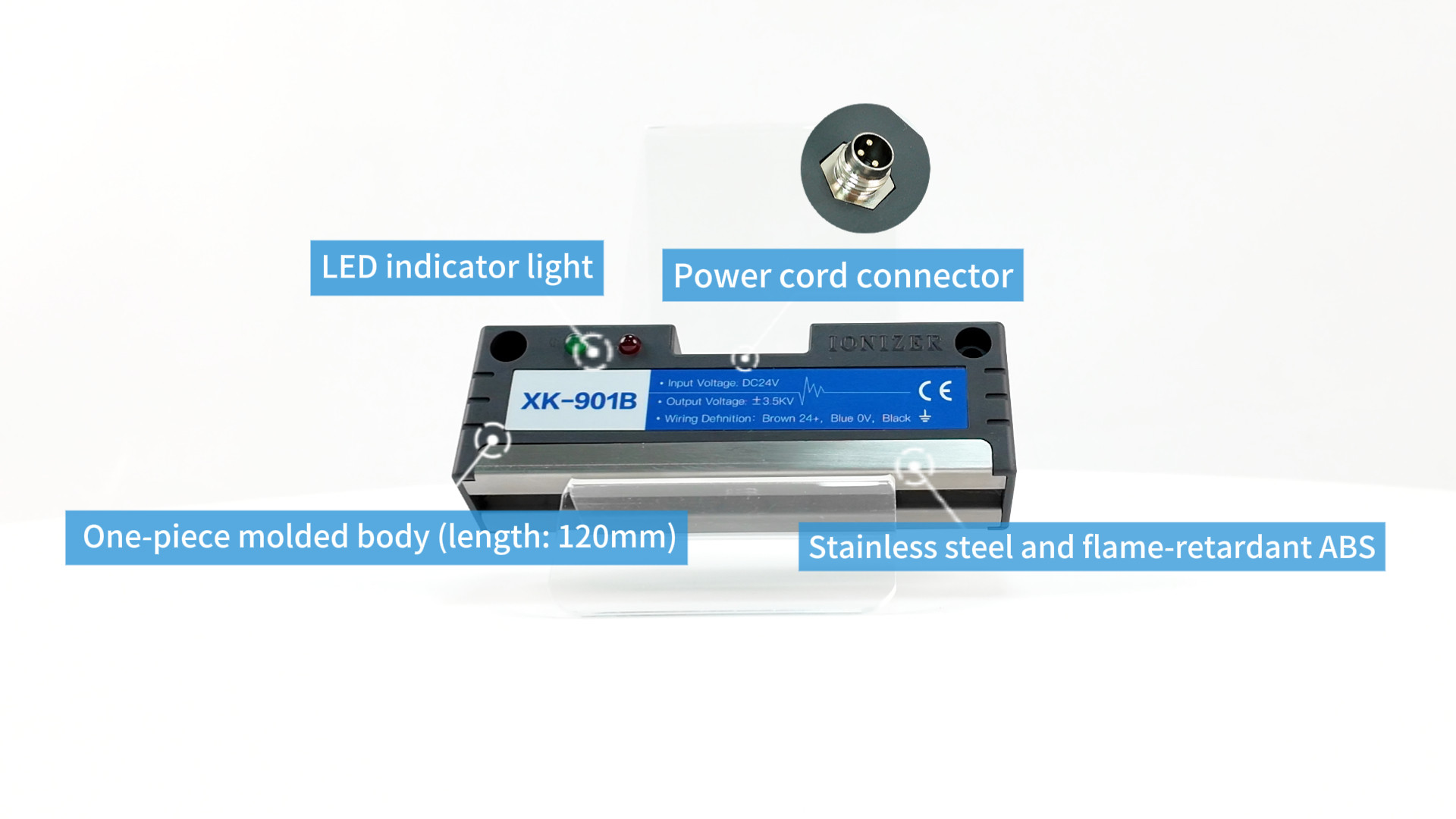

4 Compact size and integral molding, suitable for installation in narrow spaces
Performance Parameter
- parameter/VersionXK-901B
- Ambient humidityCorona discharge mode
- Voltage application modePulsed AC mode / ±3500V
- Electrode output current＜0.5mA
- Ion balance range＜±100V
- Optimal installation distance30mm-50mm
- Charge elimination time＜3s
- Alarm outputIndicator light alarm
- Weight210g
- Operating temperature0℃-50℃
- Power supply voltageDC24V~36V±10%
- Power consumption230mA (at DC24V) / 150mA (at DC36V)
- Output power＜10W
- Electrode pinTungsten needle
- Host materialStainless steel + flame retardant ABS
- Ambient temperature0~+40℃
- Ambient humidity35~85％RH

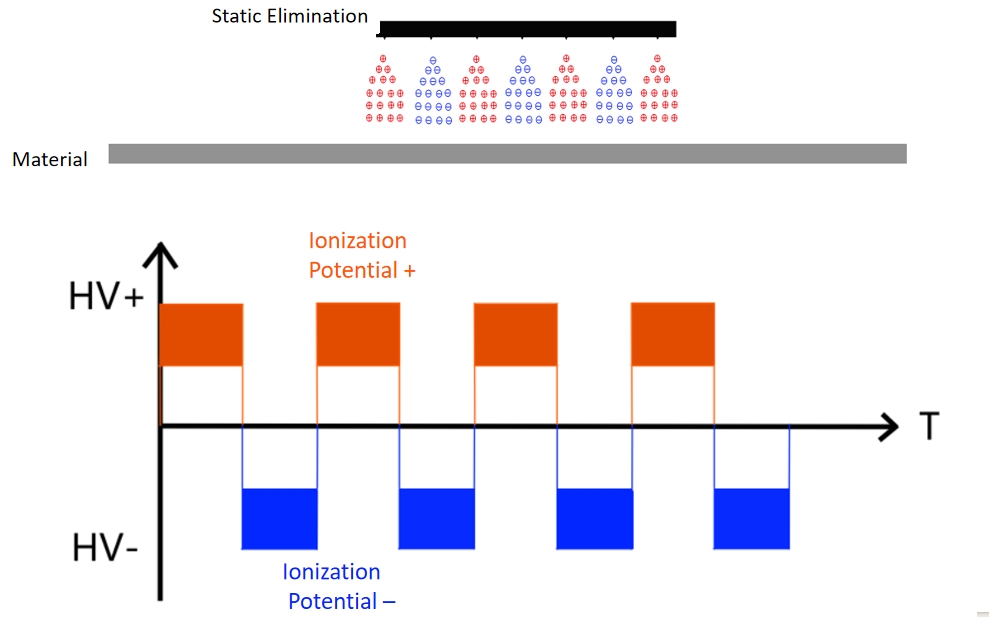

Working Mode

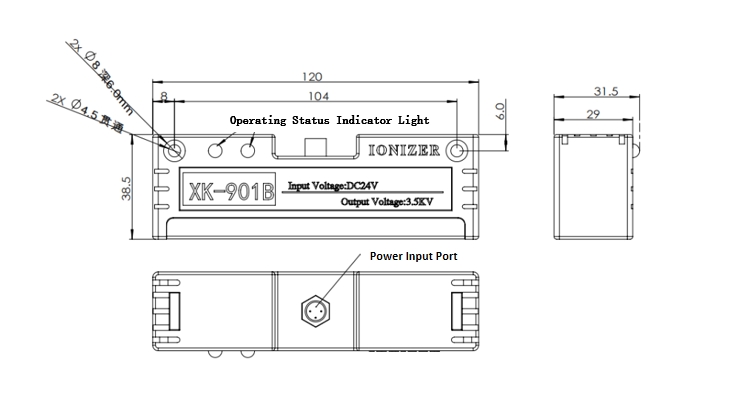

Product Size
