Basic DC Static Eliminator

XK-900B
Special static eliminator for UV machines in the advertising industry
Combines high performance and affordable price

Application Field

  • Lithium Battery Industry

  • Electronics Industry

  • Advertising Industry

Product Characteristics

1     Supports size customization of 200-600mm, customizing the size according to needs to make the product fit the usage scenario

Compact body saves installation space

2    Equipped with built-in short-circuit automatic protection to protect the safe operation of the equipment

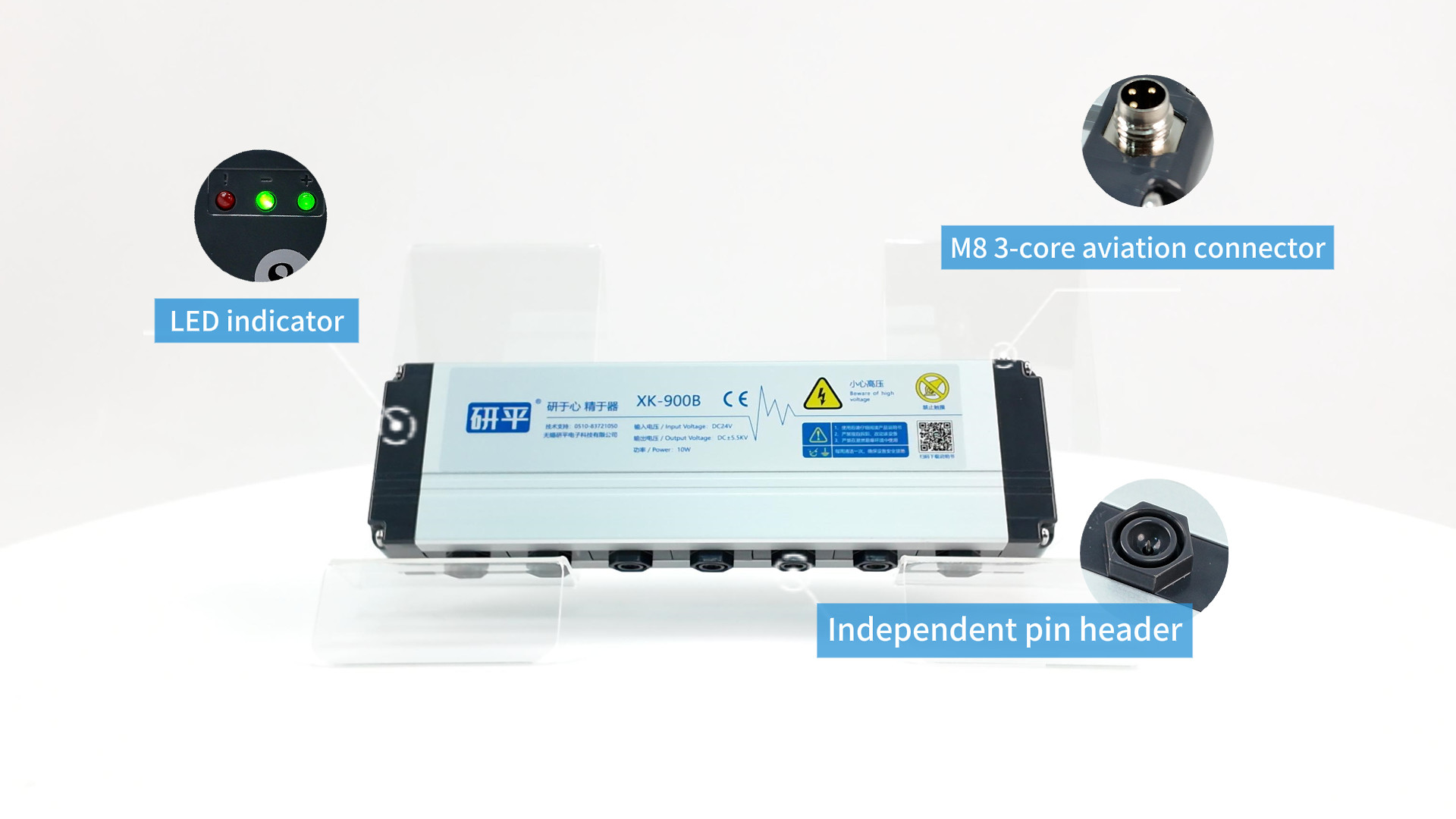

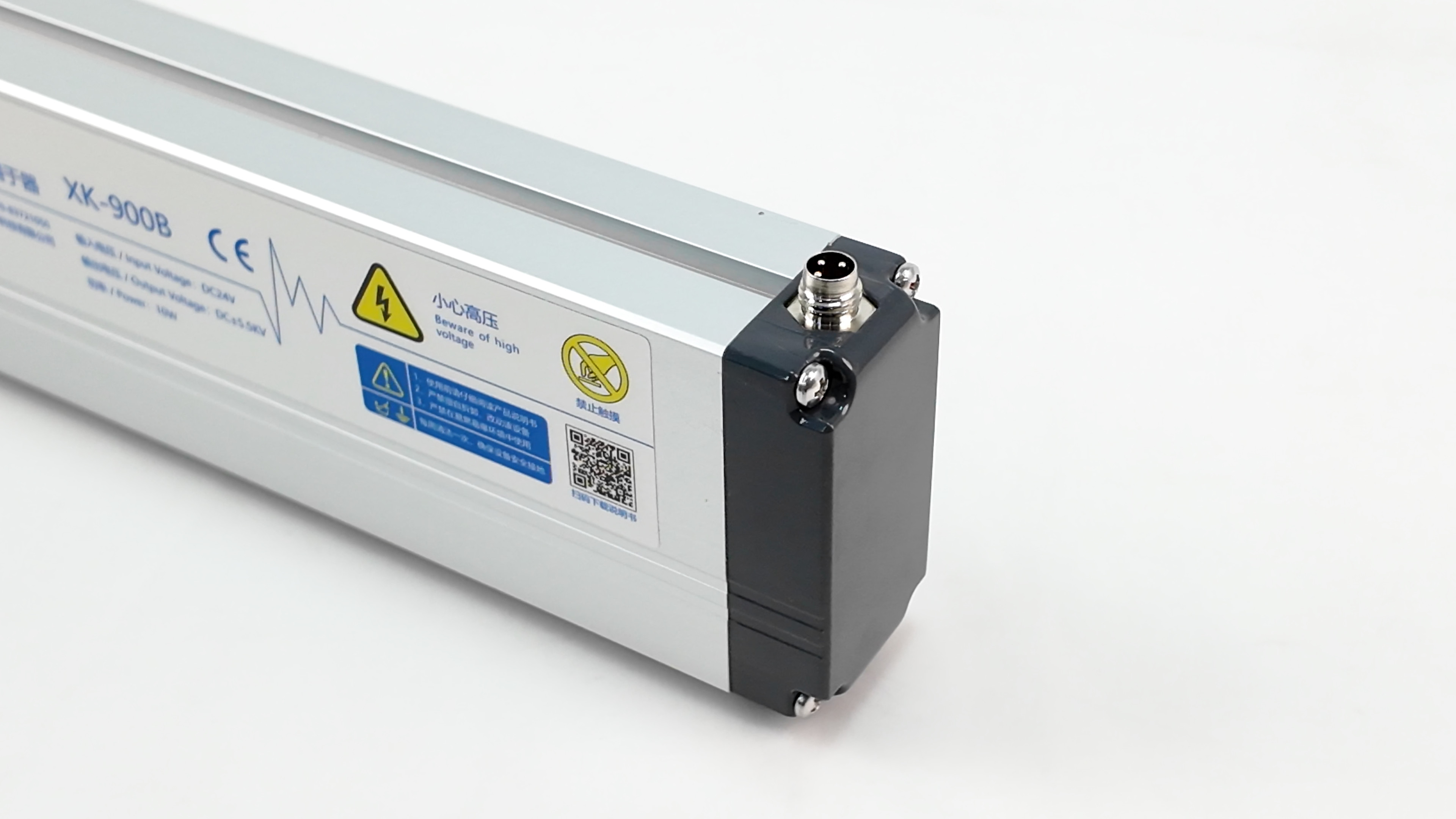

3    Single aviation plug cable (M8 3-core aviation plug cable) for simple wiring, avoiding wire routing through drag chains

4    Specialized for UV flatbed printers / UV roll-to-roll printers / UV inkjet printers


Performance Parameter

  • Parameter Model
    XK-900B
  • Input Voltage
    DC24V+10%
  • Input Current
    <600mA
  • Output Power
    10W
  • Output Voltage
    DC+5.5KV
  • Working Mode
    Pulsed AC
  • Emission Electrode
    Stainless Steel
  • Discharge Structure
    Direct Coupling
  • Output Frequency
    15/40Hz (Factory Setting: 15Hz)
  • Duty Cycle
    50%
  • Bar Size
    L*W*H:{220-470mm;}*30*60mm
  • Installation Distance
    80~150mm
  • Ion Balance
    ±50V
  • Static Elimination Time
    <2s
  • Abnormal Alarm
    Alarm Indicator Light (Green for Normal Operation, Red for Abnormality)
  • Working Temperature
    0℃-50℃
  • Working Humidity
    <70%
  • Bar Material
    Stainless Steel + PVC
  • Installation Accessories
    M4*15 Hexagon Mounting Bolts
  • Warranty Period
    1 Year
  • Certification:
    CE

Working Mode

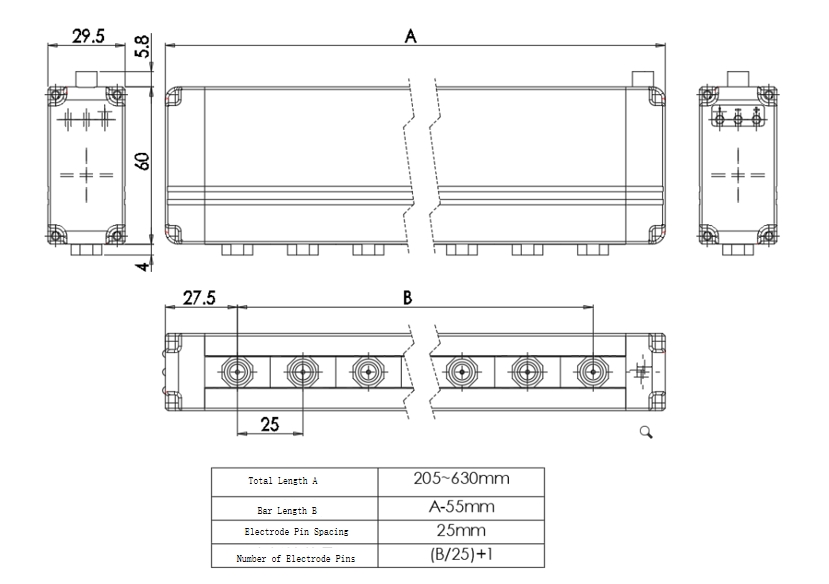

Product Size
