Application Field
-
Lithium Battery Industry
-
Textile Industry
-
Soft Packaging Industry
Product Characteristics

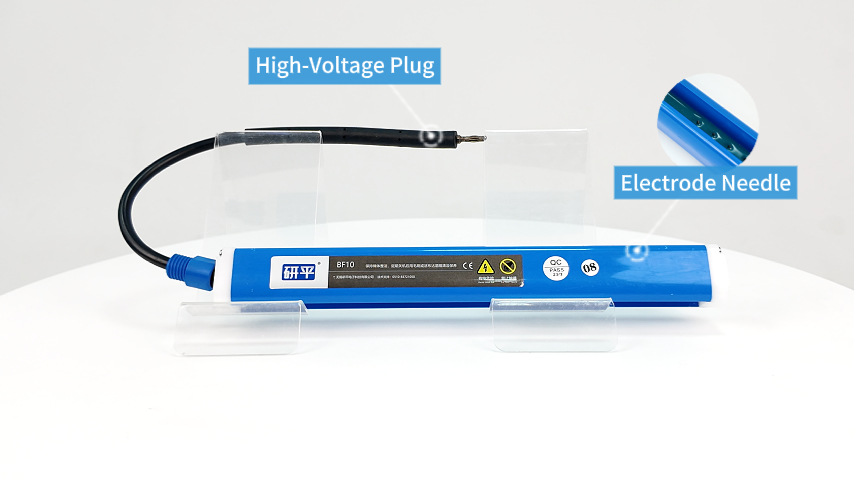

1 The built-in electrode design can mitigate the electrostatic discharge phenomenon directly caused by high voltage.
2 Compact in shape, it meets the installation requirements for small spaces.
Performance Parameter
- Parameter ModelYP-HV-BF-10
- Operating Voltage±DC30KV - 50KV
- Input Power<50W/M
- Emitting ElectrodeTungsten Needle
- Mounting Distance50mm-100mm(30KV-50KV)
- Product Size120-3000mm
- Distance Between Needles10mm
- Static Adsorption ForceBF10 ≥2500g (Tested by Static Adsorption Force Test Platform)
- Operating Temperature0-50℃
- Operating Humidity0~70%RH

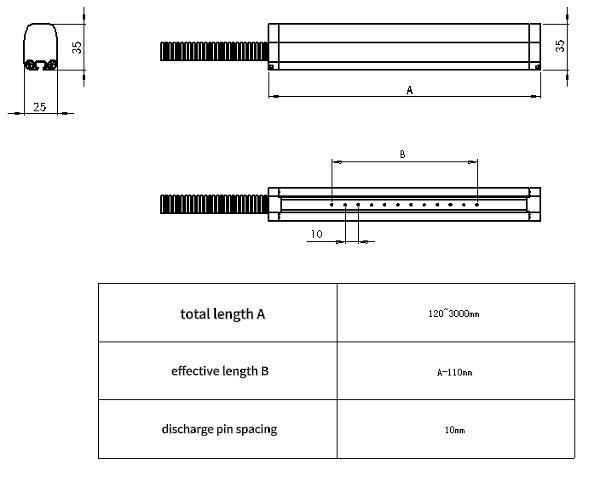

Product Size
