50KV Electrostatic Generator

YP-HV050-03P/N
It provides a maximum positive/negative high-voltage output of 50KV and 3mA

Application Field

  • Lithium Battery Industry

  • Textile Industry

  • Soft Packaging Industry

Product Characteristics

1      Built-in multiple protection mechanisms such as short circuit, overvoltage, and overcurrent protection. These mechanisms ensure that the device automatically cuts off the output in abnormal situations, preventing damage to the circuit and extending the service life of the device.

2     Users can flexibly adjust the output voltage to achieve precise control.

3      Compact size reduces the number of external components, enhances stability, and at the same time lowers energy consumption and noise.

4   The compact design facilitates easy installation and maintenance, making it suitable for various spatial layouts.

5     It has three control functions: external control, remote control, and local control, and can be directly connected to a PLC control unit.

6      With two high-voltage output ports, it can be connected to two ion generating rods.

Performance Parameter

  • Input Voltage
    220VAC±10% 50/60Hz
  • Input Current
    <3A
  • Output Power
    150W Max
  • Output Voltage
    ±1~50KVDC
  • Output Current
    3.3mA Max
  • Voltage Ripple
    <1%

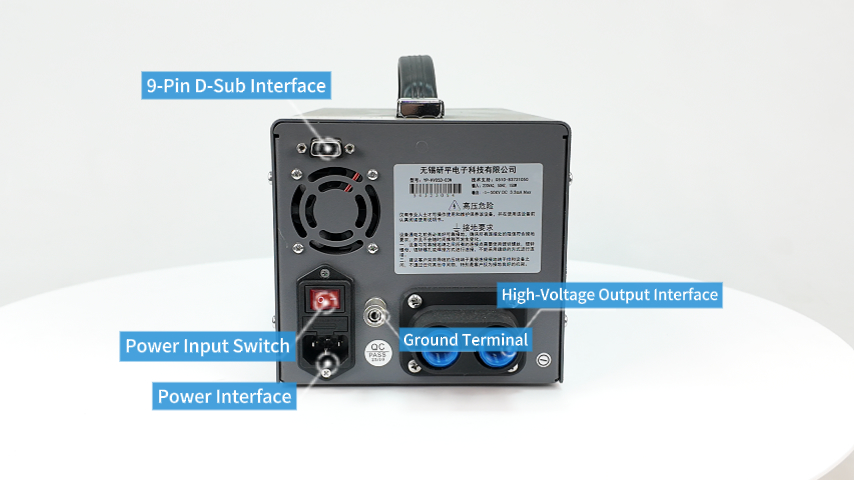

  • High-Voltage Interfaces
    2 Output Interfaces
  • Remote Control Connection
    9-Pin D-Sub Connector
  • Polarity
    P (Positive Polarity)
  • Display Resolution
    0.1KV 0.01mA
  • Voltage Stability
    When input voltage is between 198V and 242V, output voltage fluctuation <2%
  • Load Stability
    Output voltage fluctuation <2% under no-load and loaded conditions
  • External On/Off
    0V (On), 3-12V (Off)
  • Alarm Signal Output
    1-channel NPN Open-Drain Output, Maximum Load Current 100mA
  • Operating Temperature
    0-50℃
  • Operating Humidity
    10~65%RH (No Condensation)
  • Housing Material
    Steel Plate
  • Function
    Adjustable Output Voltage and Current
  • Function
    Constant Voltage Mode / Current Limiting Mode / Standby Mode
  • Function
    Ungrounded Protection / Short Circuit Protection / Overcurrent Protection / Overtemperature Protection
  • Function
    RS-485 Remote Communication Setting
  • Function
    External Enable Control / Local Enable Control / Remote RS-485 Communication Enable Control
  • Function
    Poor Grounding Alarm
  • Function

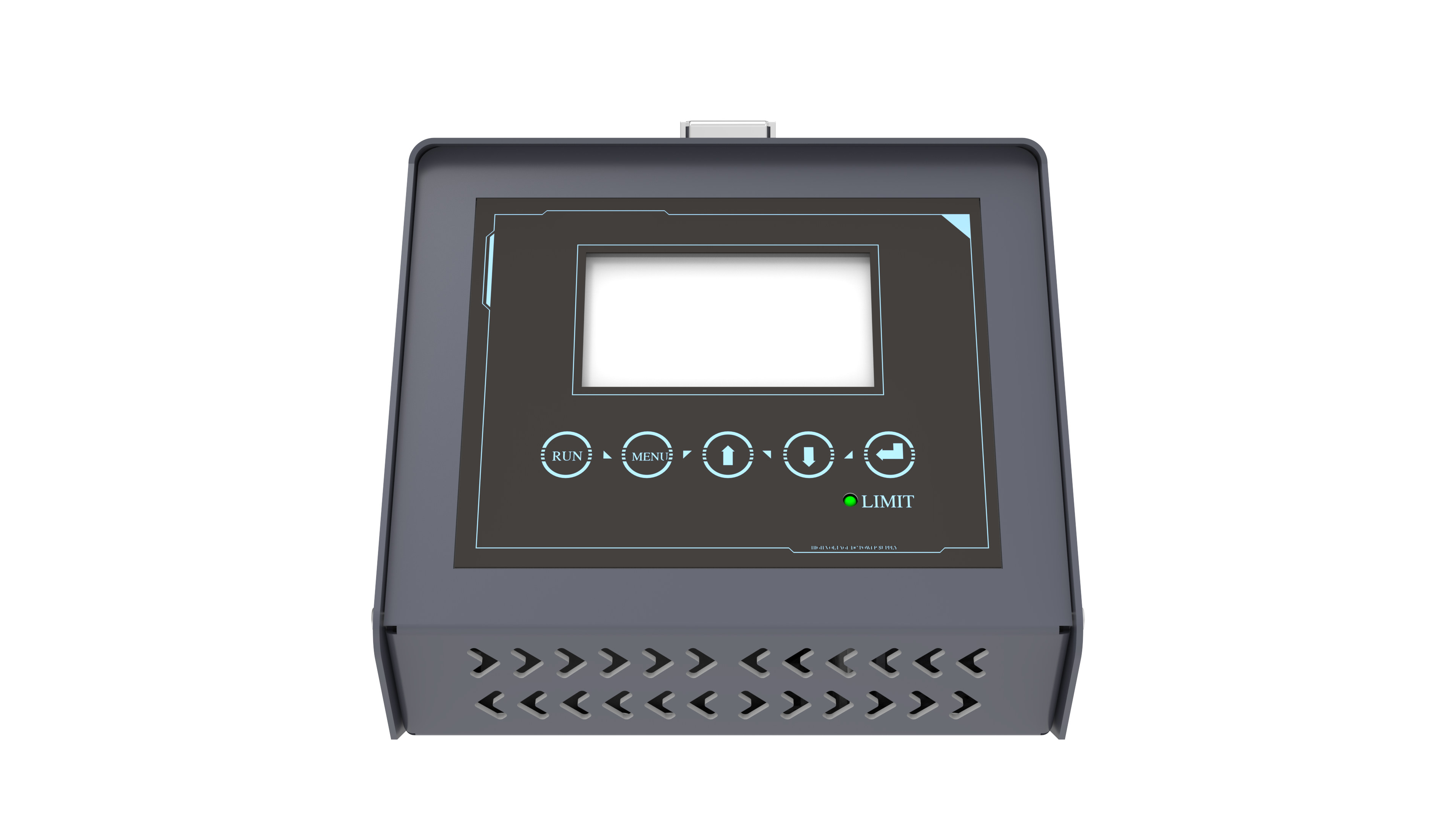

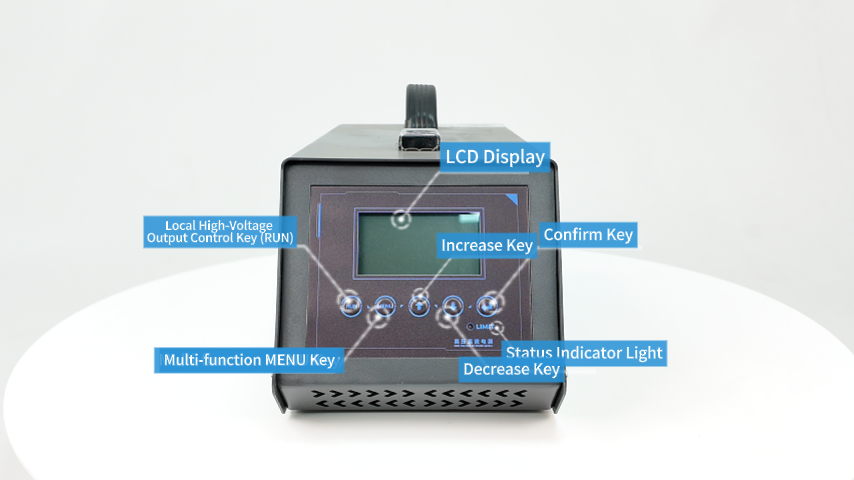

    LCD Display

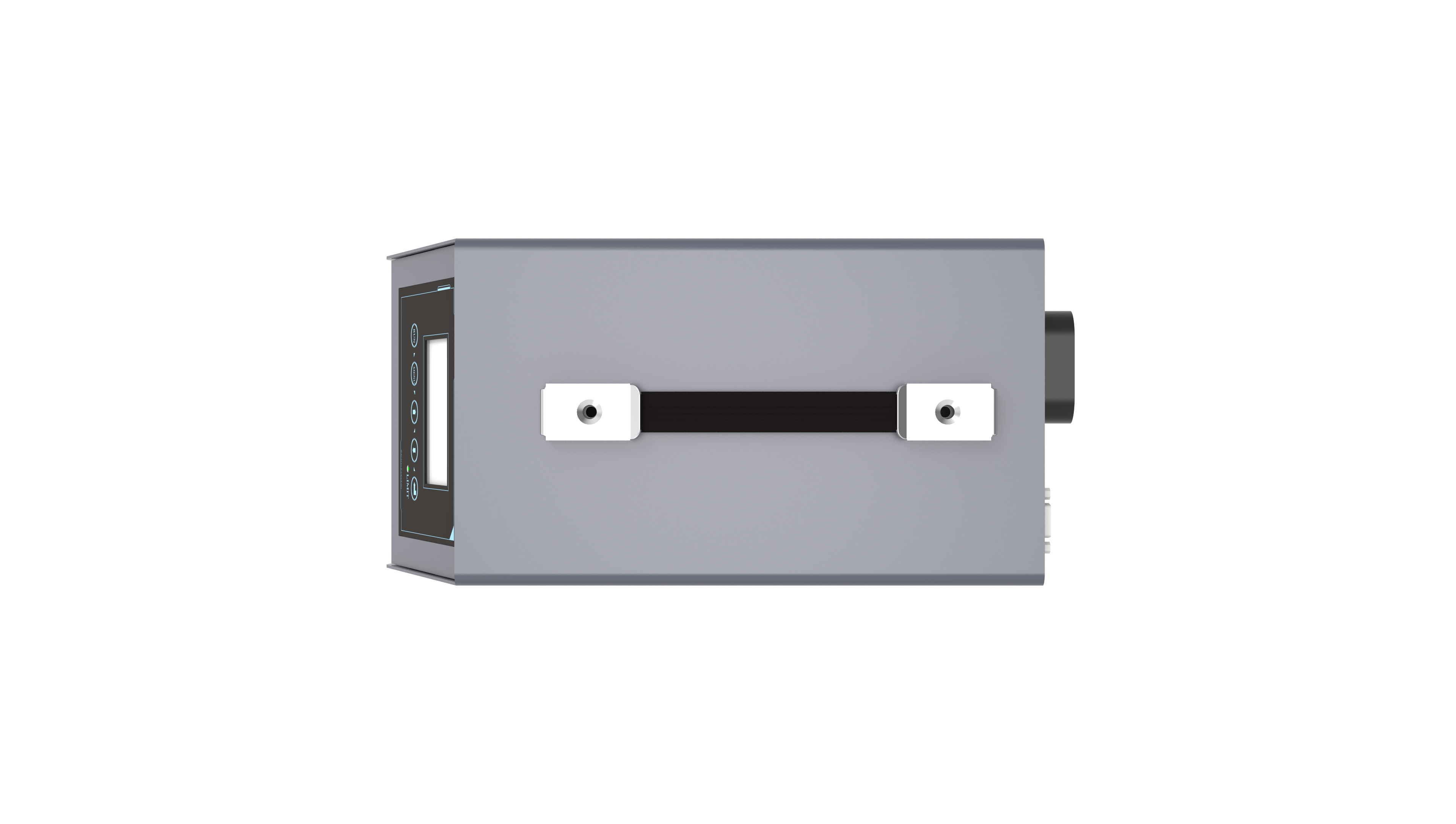

Product Size
