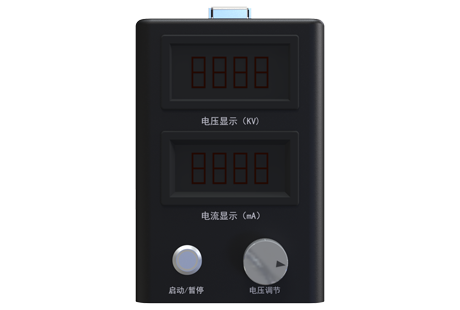

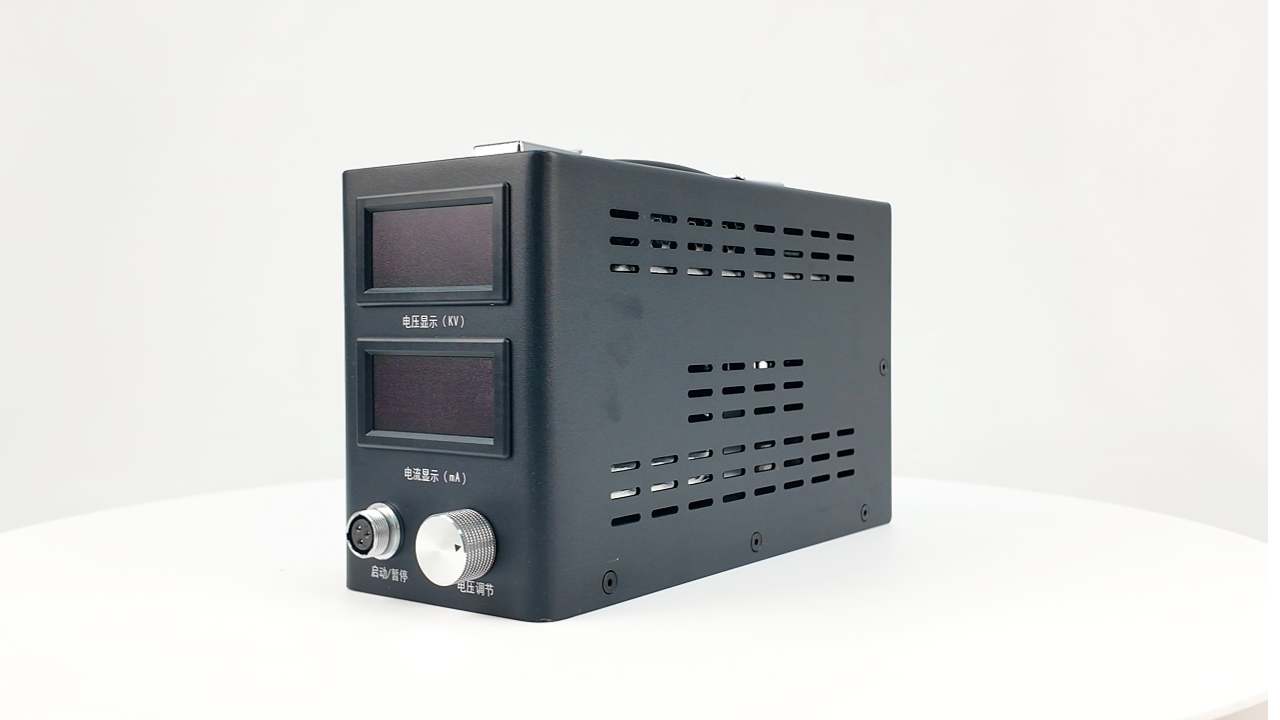

30KV Electrostatic Generator

YP-HV032-01P/N
It provides a maximum positive/negative high-voltage output of 30KV and 1mA

Application Field

  • Lithium Battery Industry

  • Textile Industry

  • Soft Packaging Industry

Product Characteristics

1    Built-in multiple protection mechanisms such as short-circuit, over-voltage and over-current protection, which can automatically cut off the output in abnormal conditions, protect the circuit from damage and extend the service life.

2    Users can flexibly adjust the output voltage to achieve precise control.

3    Small size, reducing the number of external components, improving stability while lowering energy consumption and noise.

4    Compact design for easy installation and maintenance, suitable for various spatial layouts.

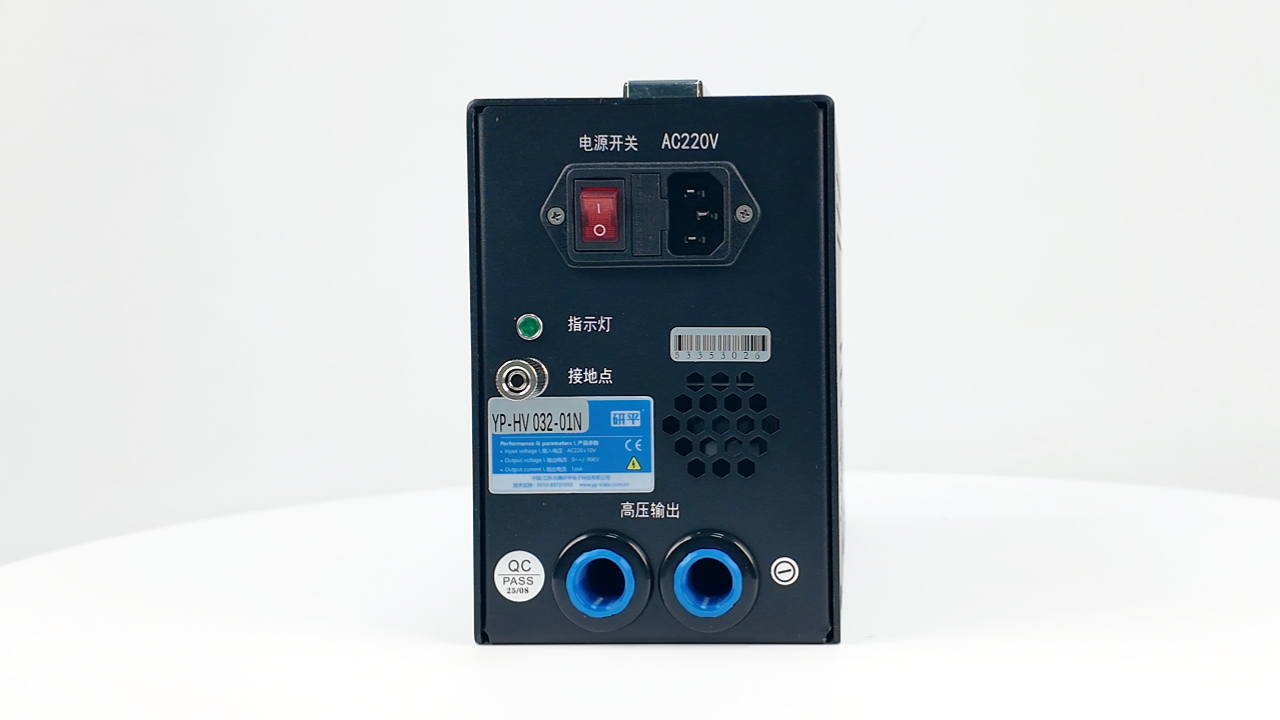

5    Adopts dual high-voltage output interfaces, and users can choose single-port or dual-port output according to actual conditions.

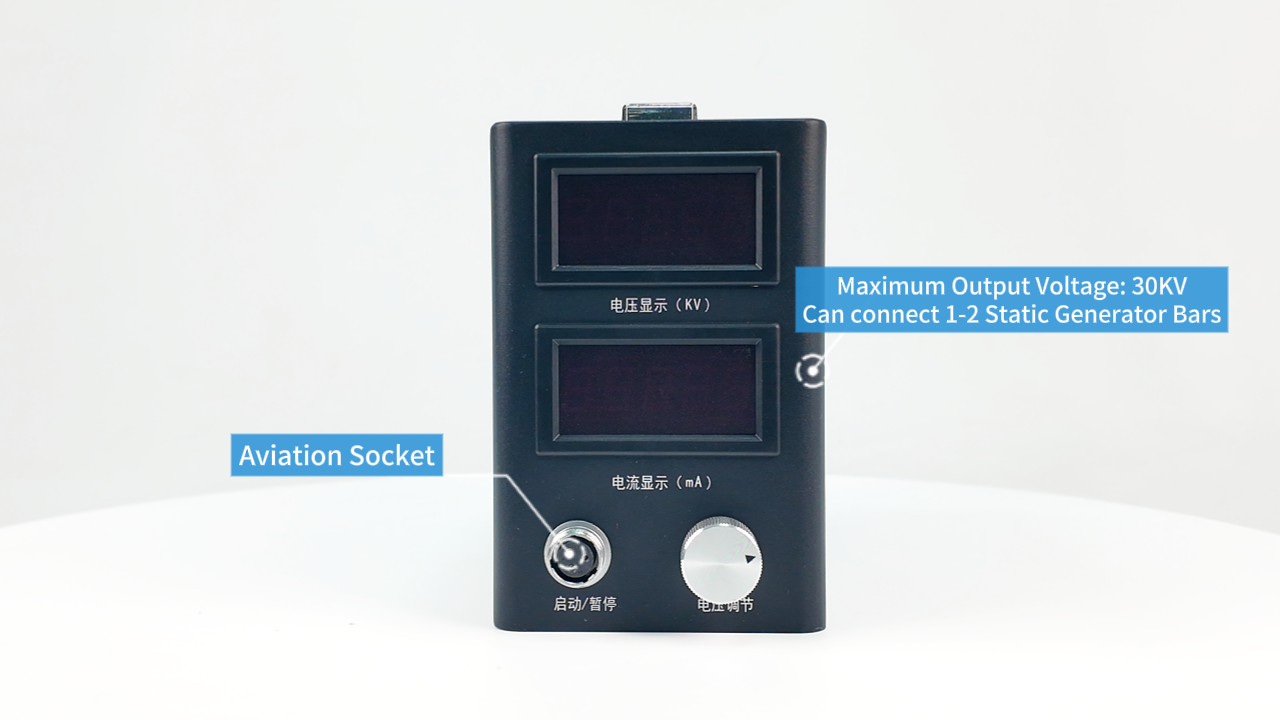

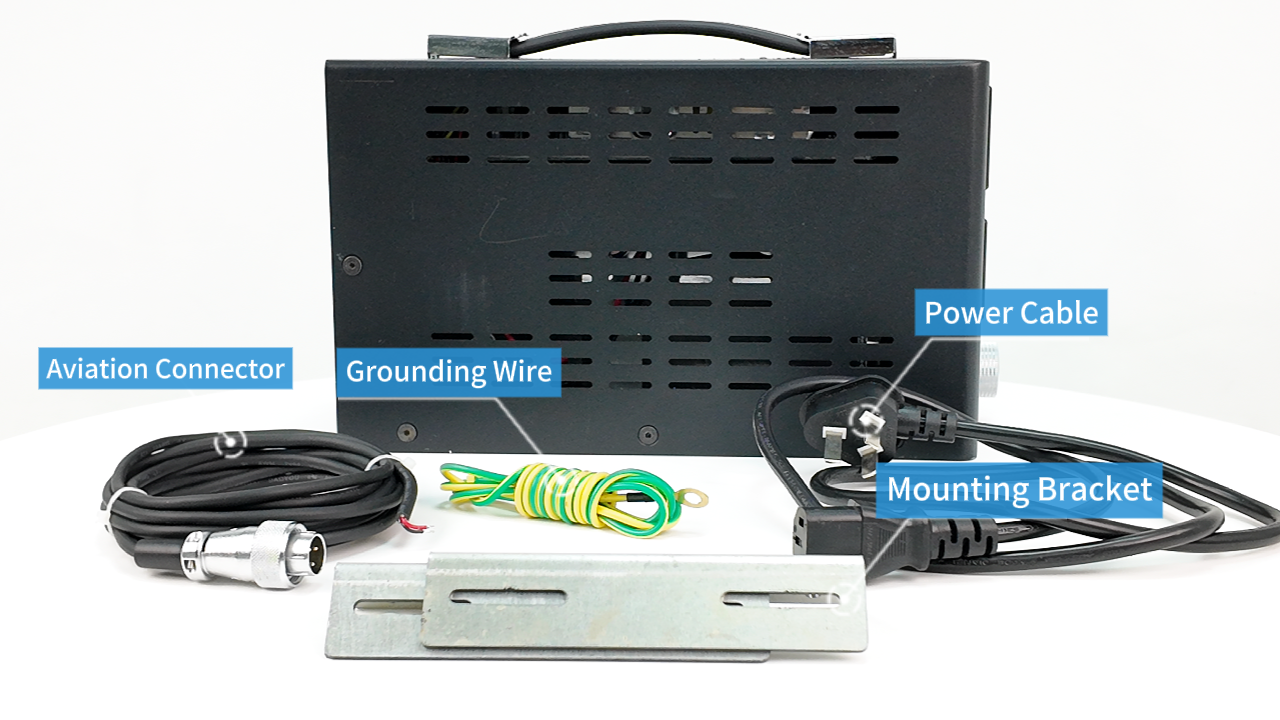

6    Equipped with aviation plug cable and supports remote control function

Performance Parameter

  • parameter/Version
    YP-HV30KV
  • Input Voltage
    AC220V±10%/50Hz
  • Output Voltage
    Adjustable from 0 to ±30KV
  • Output Current
    ≤1mA
  • Ripple Voltage
    -
  • Output Stability
    -
  • Operating Temperature
    -10-50℃
  • Storage Temperature
    -40-85℃
  • Operating Humidity
    20-85%RH
  • Temperature Coefficient
    -
  • Time Drift
    -
  • Weight
    4800g

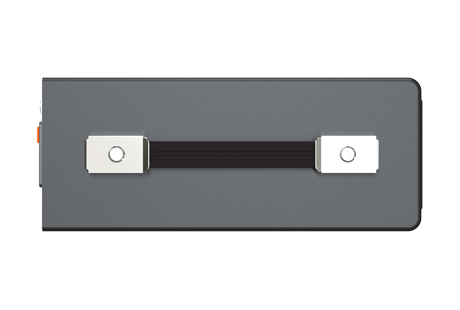

Product Size
