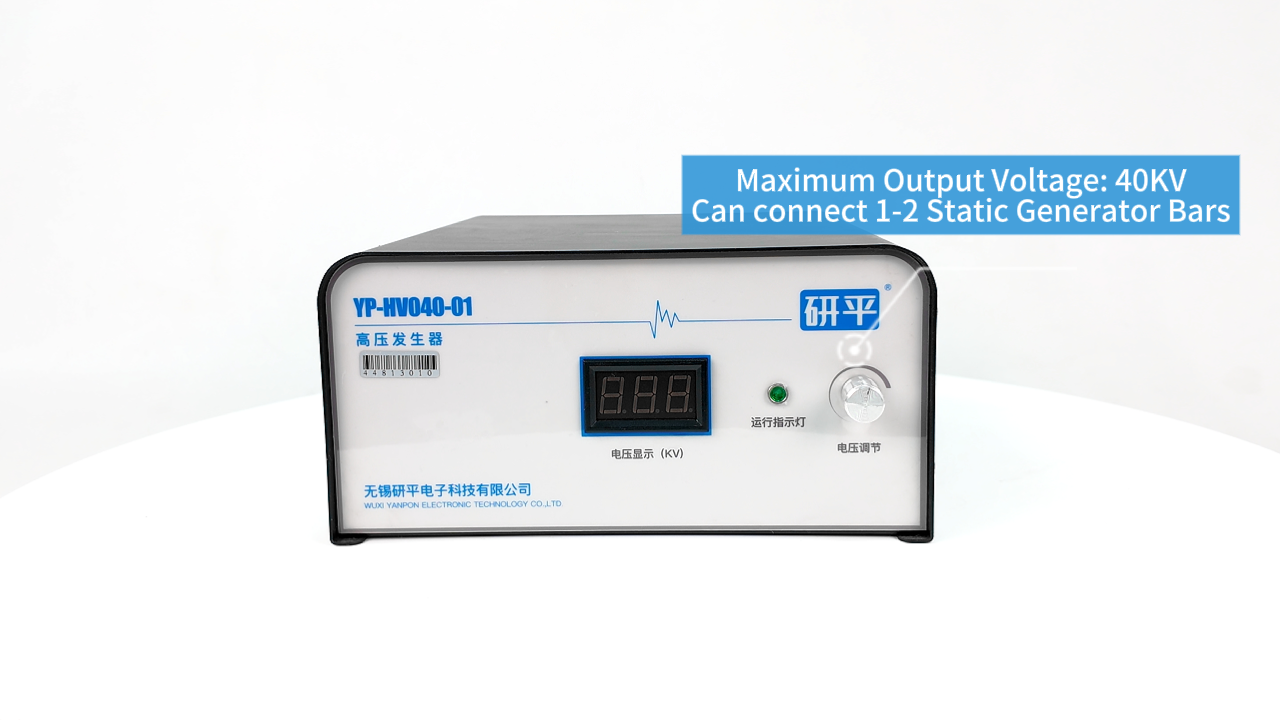

40KV Electrostatic Generator

YP-HV040-01P/N
It provides a maximum positive/negative high-voltage output of 40KV and 1mA
It is mostly used in casting machines

Application Field

  • Lithium Battery Industry

  • Textile Industry

  • Soft Packaging Industry

Product Characteristics

1    Built-in multiple protection mechanisms such as short-circuit, over-voltage and over-current protection, which can automatically cut off the output in abnormal conditions, protect the circuit from damage and extend the service life.

2    Users can flexibly adjust the output voltage to achieve precise control.

3    High integration and small size, reducing the number of external components, improving stability while lowering energy consumption and noise.

4    Compact design for easy installation and maintenance, suitable for various spatial layouts.

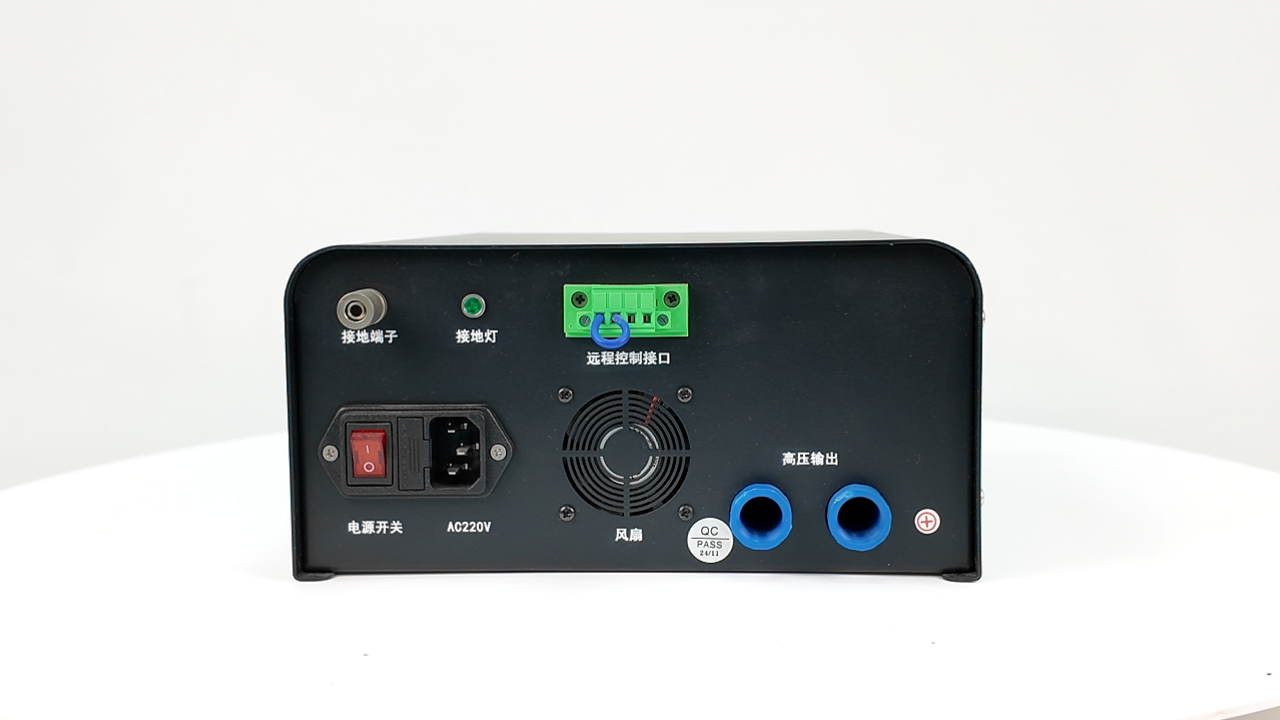

5    Adopts dual high-voltage output interfaces, and users can choose single-port or dual-port output according to actual conditions

Performance Parameter

  • parameter/Version
    YP-HV40KV
  • Input Voltage
    AC220V±10%/50Hz
  • Output Voltage
    Adjustable from 0 to ±40KV
  • Output Current
    0-1mA
  • Number of Output Interfaces
    2 (plug-in type)
  • Protection
    Overvoltage, Arc Discharge, Output Short Circuit, Overcurrent Protection
  • Operating Temperature
    -10℃ +50℃
  • Storage Temperature
    -40℃ +85℃
  • Humidity
    20% - 85% RH, No Condensation

Working Mode


Product Size
