Application Field
-
Lithium Battery Industry
-
Textile Industry
-
Soft Packaging Industry
Product Characteristics
1 Provides a maximum positive high-voltage output of 50KV, 1mA

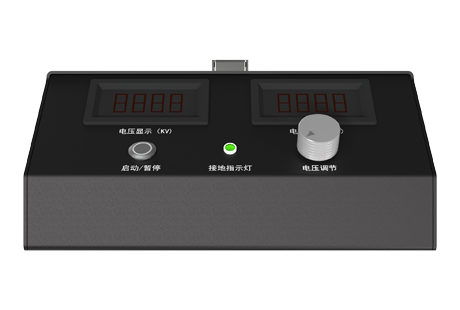

2 It has current and voltage display
3 Stepless adjustable voltage
4 Grounding detection function
5 Short-circuit protection function
6 (There is no multi-power selection for a single model)
Performance Parameter
- parameter/VersionYP-HV50KV
- Input VoltageAC220V±10%/50Hz
- Output VoltageAdjustable from 0 to ±50KV
- Output Current≤1mA
- Ripple Voltage-
- Output Stability-
- Operating Temperature-10-50℃
- Storage Temperature-40-85℃
- Operating Humidity20-85%RH
- Temperature Coefficient≤ 0.1% / ℃
- Time Drift≤ 100PPM / h (after 30 minutes of preheating at startup)
- Weight7500g
Working Mode
Electrification Effect

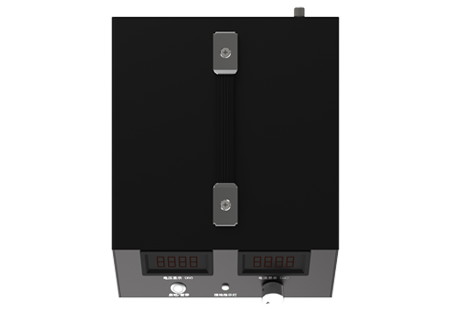

Product Size
