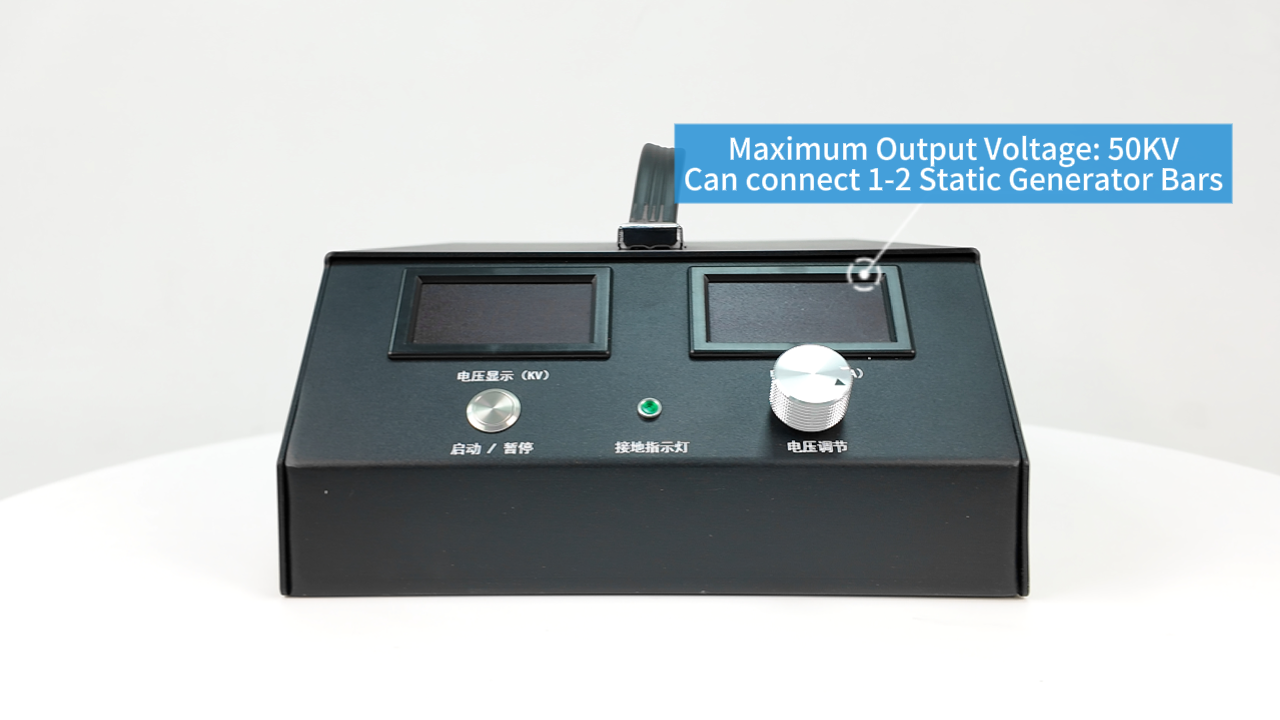

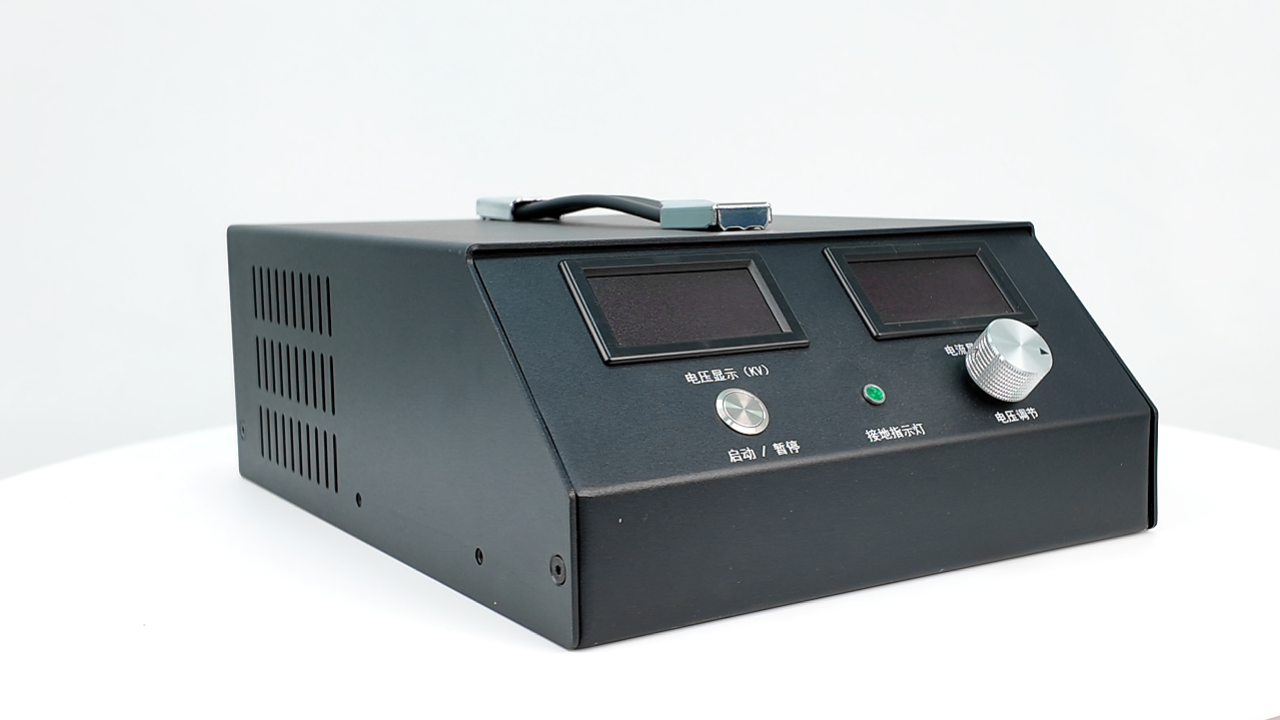

50KV Electrostatic Generator

YP-HV051-01P/N
It provides a maximum positive/negative high-voltage output of 50KV and 1mA

Application Field

  • Lithium Battery Industry

  • Textile Industry

  • Soft Packaging Industry

Product Characteristics

1    Built-in multiple protection mechanisms such as short-circuit, over-voltage and over-current protection, which can automatically cut off the output in abnormal conditions, protect the circuit from damage and extend the service life.

2    Users can flexibly adjust the output voltage to achieve precise control.

3    Small size, reducing the number of external components, improving stability while lowering energy consumption and noise.

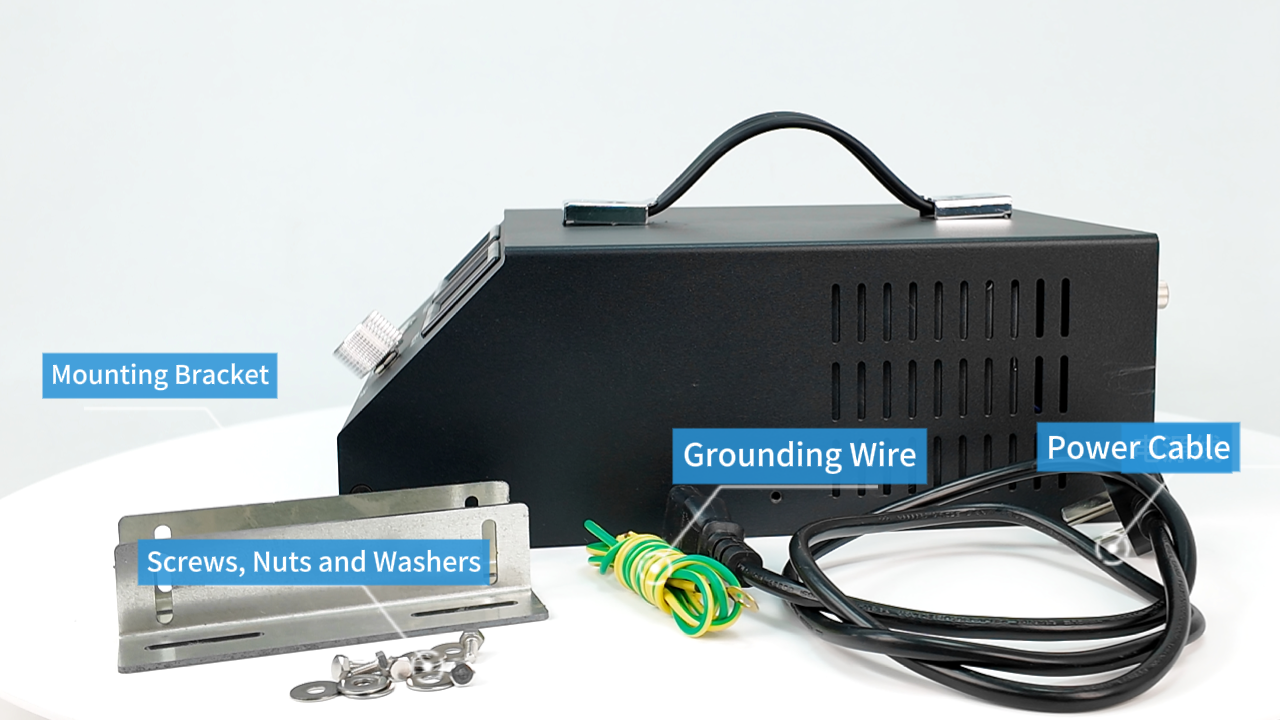

4    Compact design for easy installation and maintenance, suitable for various spatial layouts.

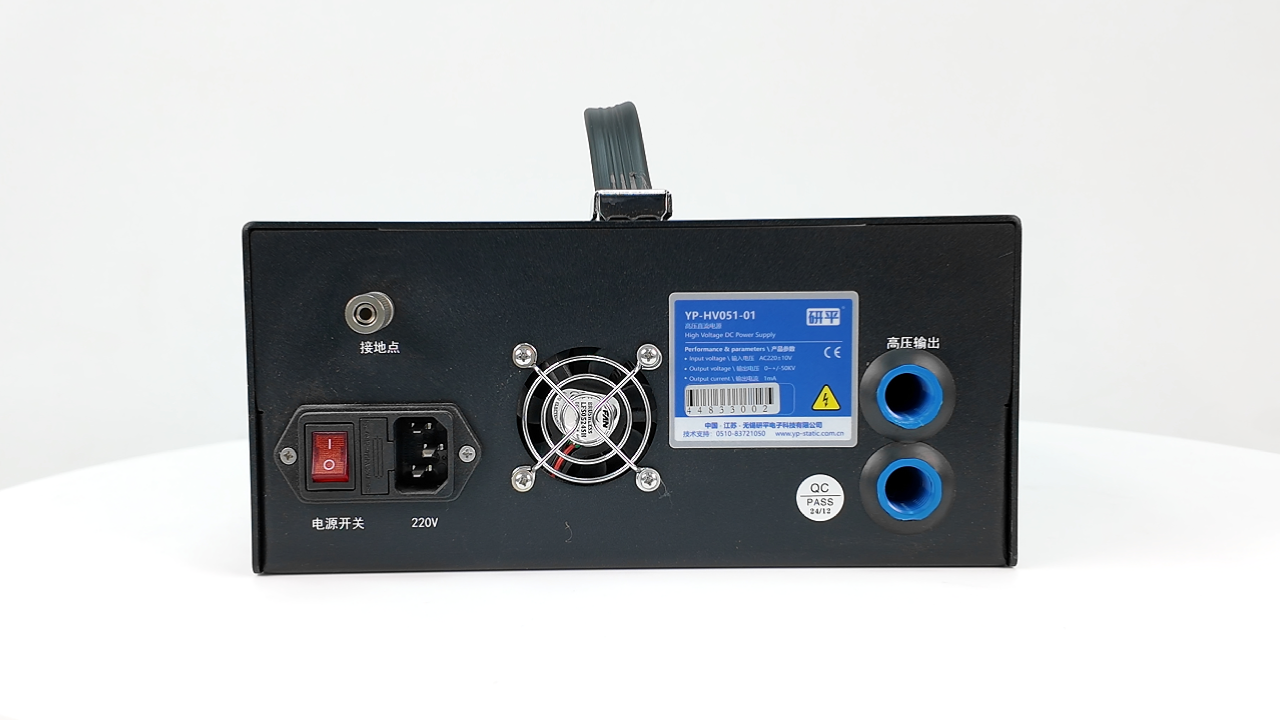

5    Adopts dual high-voltage output interfaces, and users can choose single-port or dual-port output according to actual condition

Performance Parameter

  • Model Parameters
    YP-HV50KV
  • Input Voltage
    AC220V±10%/50Hz
  • Output Voltage
    Adjustable from 0 to ±50KV
  • Output Current
    ≤1mA
  • Ripple Voltage
    -
  • Output Stability
    -
  • Operating Temperature
    -10-50℃
  • Storage Temperature
    -40-85℃
  • Operating Humidity
    20-85%RH
  • Temperature Coefficient
    ≤0.1%/℃
  • Time Drift
    ≤100PPM/h (after 30 minutes of warm-up after power-on)
  • Weight
    7500g

Product Size
