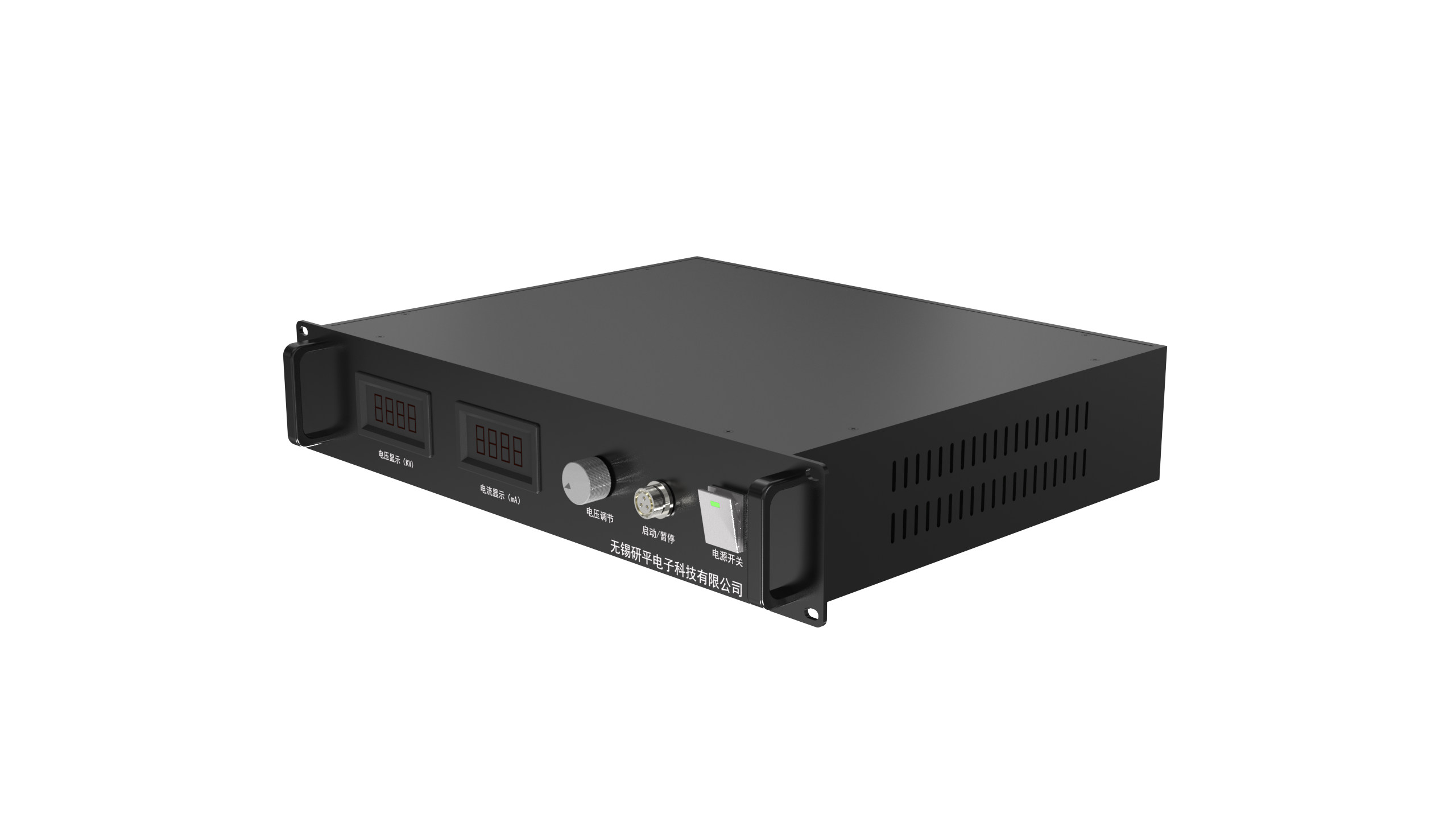

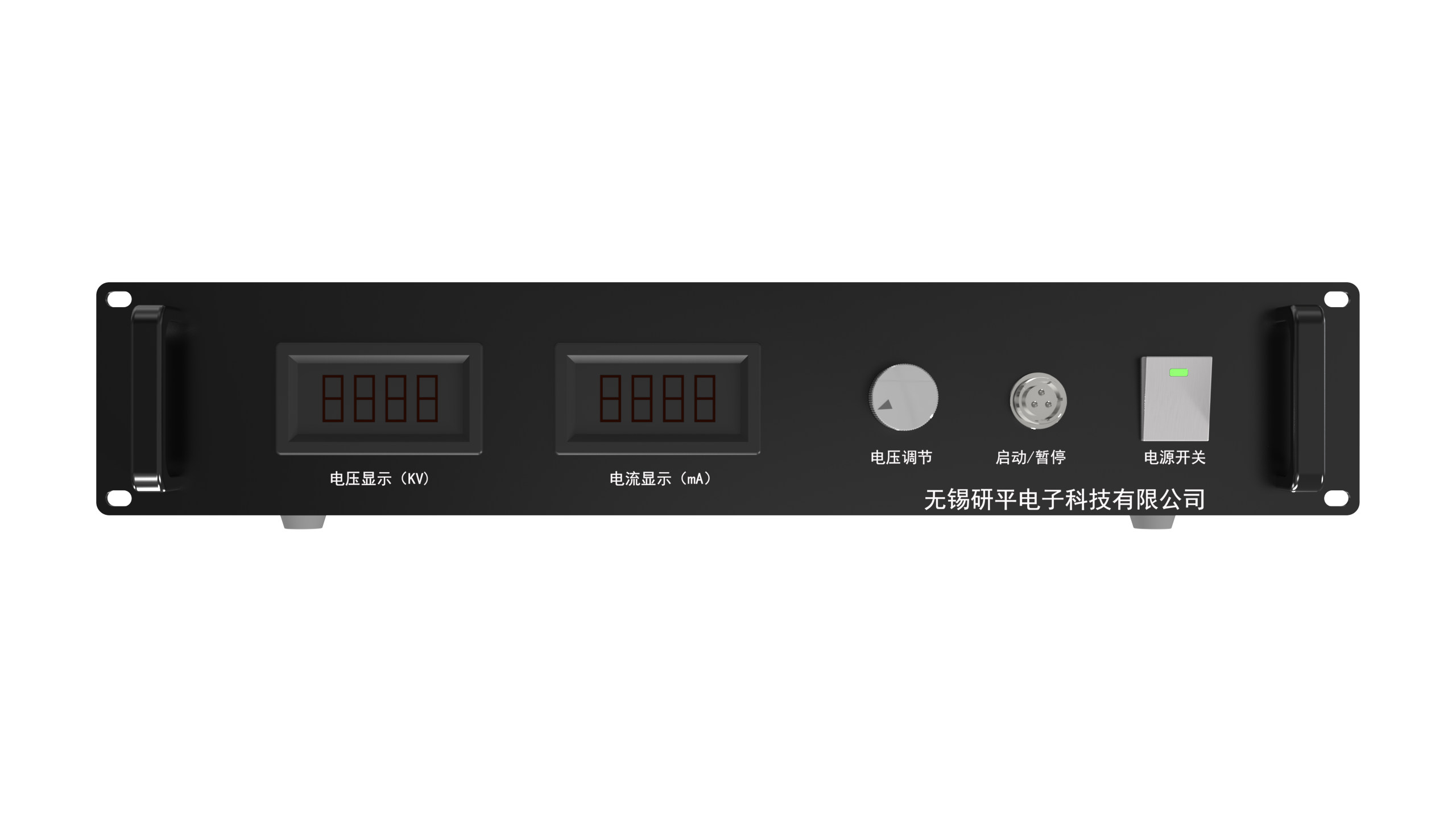

50KV Electrostatic Generator

YP-HV052-04P/N
It provides a maximum positive/negative high-voltage output of 50KV and 4mA

Application Field

  • Lithium Battery Industry

  • Textile Industry

  • Soft Packaging Industry

Product Characteristics

1     Built-in multiple protection mechanisms including short circuit, overvoltage, and overcurrent protection. They ensure the device automatically cuts off the output in abnormal cases, preventing damage to the circuit and extending the device's service life.

2     Users can flexibly adjust the output voltage to realize precise control.

3    Compact size reduces the number of external components, enhances stability, and simultaneously lowers energy consumption and noise.

4    The compact design facilitates installation and maintenance, making it suitable for various spatial layouts.

5    Supports remote control function.

Performance Parameter

  • Model Parameters
    YP-HV50KV
  • Input Voltage
    AC220V±10%/50Hz
  • Output Voltage
    Adjustable from 0 to ±50KV
  • Output Current
    ≤1mA
  • Ripple Voltage
    -
  • Output Stability
    -
  • Operating Temperature
    -10-50℃
  • Storage Temperature
    -40-85℃
  • Operating Humidity
    20-85%RH
  • Temperature Coefficient
    ≤0.1%/℃
  • Time Drift
    ≤100PPM/h (after 30 minutes of warm-up after power-on)
  • Weight
    7500g

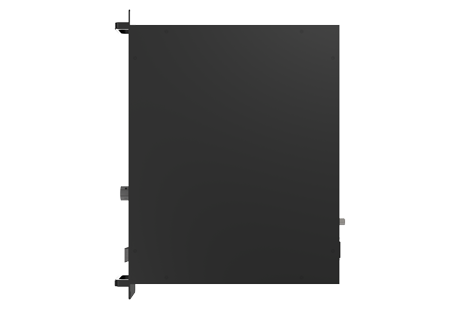

Product Size
