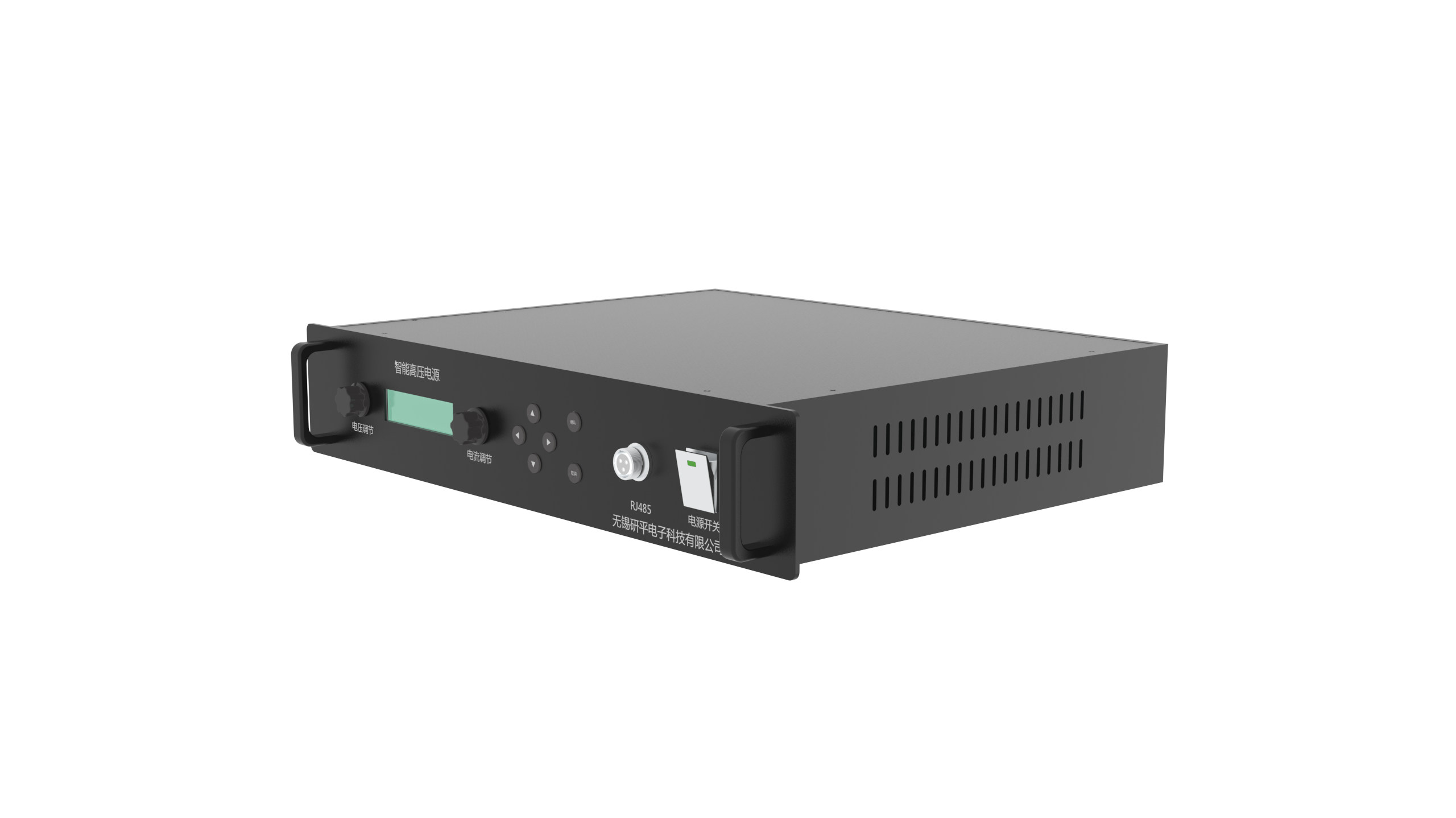

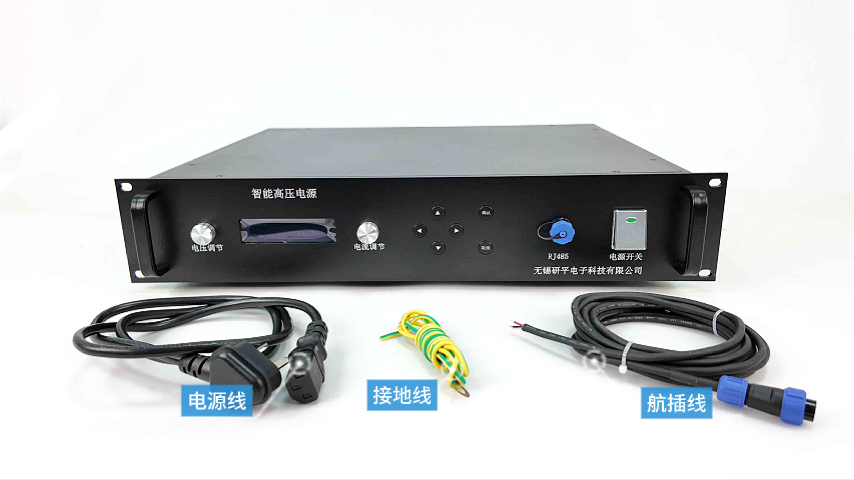

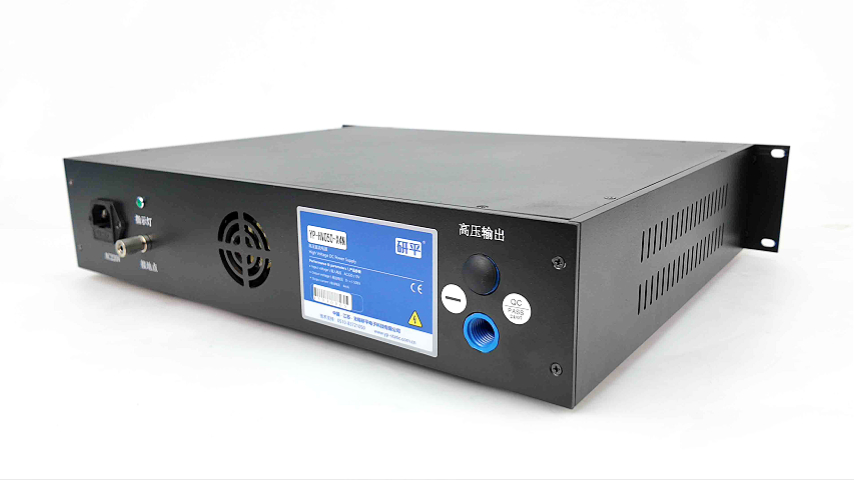

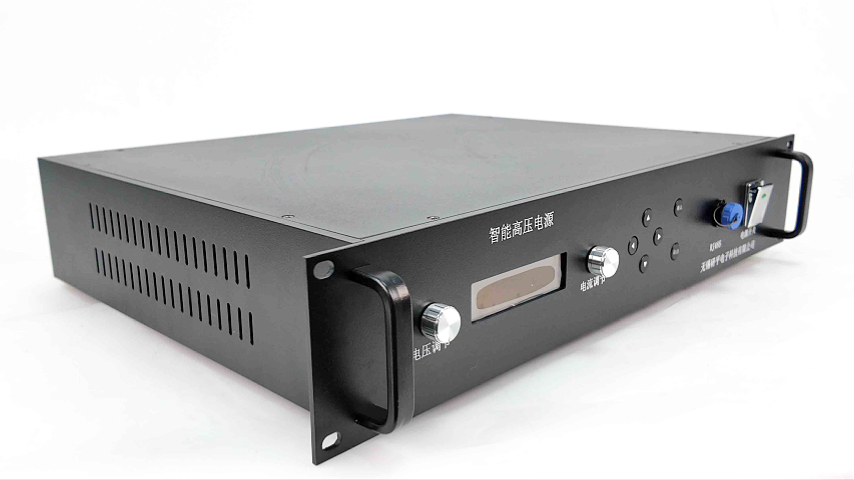

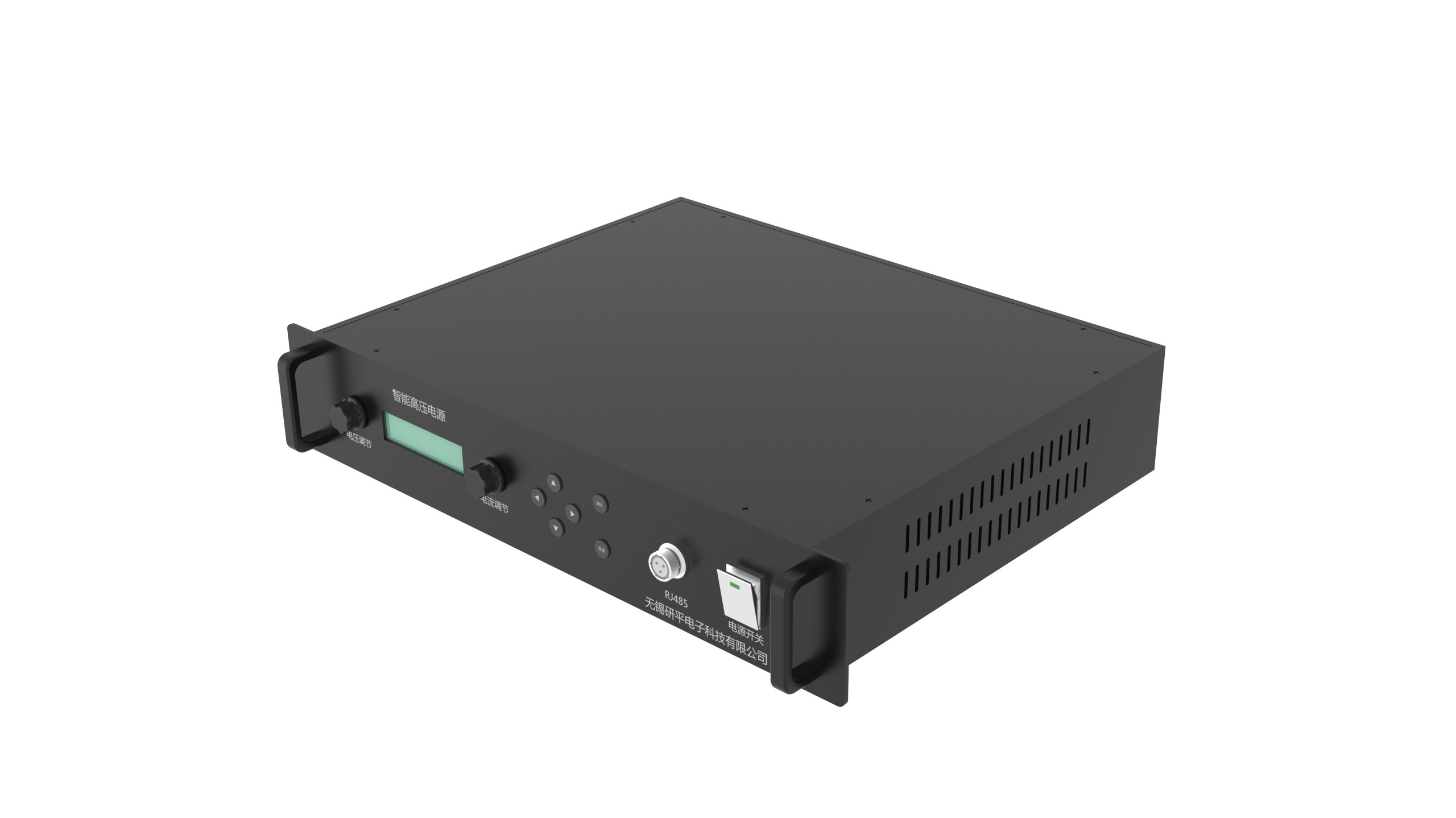

50KV Electrostatic Generator

YP-HV050-X4P/N

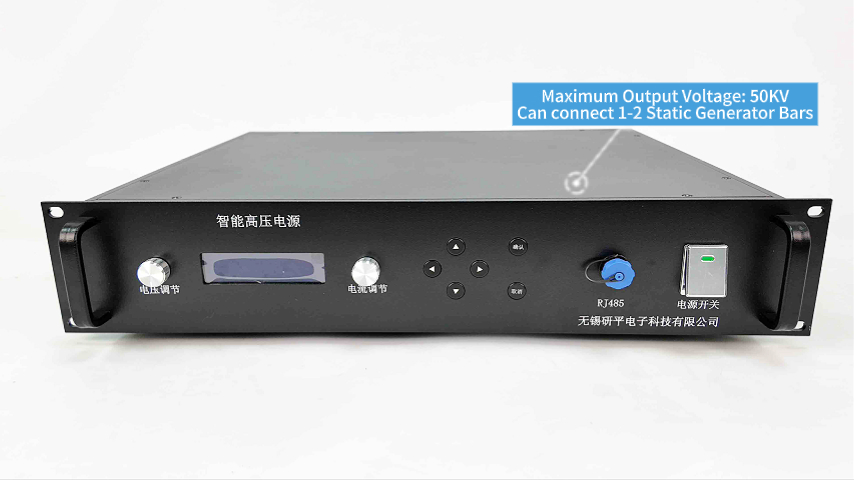

It provides a maximum positive/negative high-voltage output of 50KV and 4mA

Application Field

  • Lithium Battery Industry

  • Textile Industry

  • Soft Packaging Industry

Product Characteristics

1     Built-in multiple protection mechanisms including short circuit, overvoltage, and overcurrent protection. They ensure the device automatically shuts off the output when anomalies happen, protecting the circuit from damage and prolonging the device's service life.

2     Users can adjust the output voltage flexibly to realize precise control.

3     Small in size, it reduces the quantity of external components, improves stability, and meanwhile decreases energy consumption and noise.

4     The compact design makes installation and maintenance easy, and it is applicable to various spatial arrangements.

5     Equipped with local start-up and remote control functions.

6     Features a high-definition LED display and can be connected to RS485 communication.

Performance Parameter

  • Model Parameters
    YP-HV50KV
  • Input Voltage
    AC220V±10%/50Hz
  • Output Voltage
    Adjustable from 0 to ±50KV
  • Output Current
    ≤1mA
  • Ripple Voltage
    -
  • Output Stability
    -
  • Operating Temperature
    -10-50℃
  • Storage Temperature
    -40-85℃
  • Operating Humidity
    20-85%RH
  • Temperature Coefficient
    ≤0.1%/℃
  • Time Drift
    ≤100PPM/h (after 30 minutes of warm-up after power-on)
  • Weight
    7500g

Product Size
