Application Field
-
Semiconductor Industry
-
Lithium Battery Industry
-
Electronics Industry

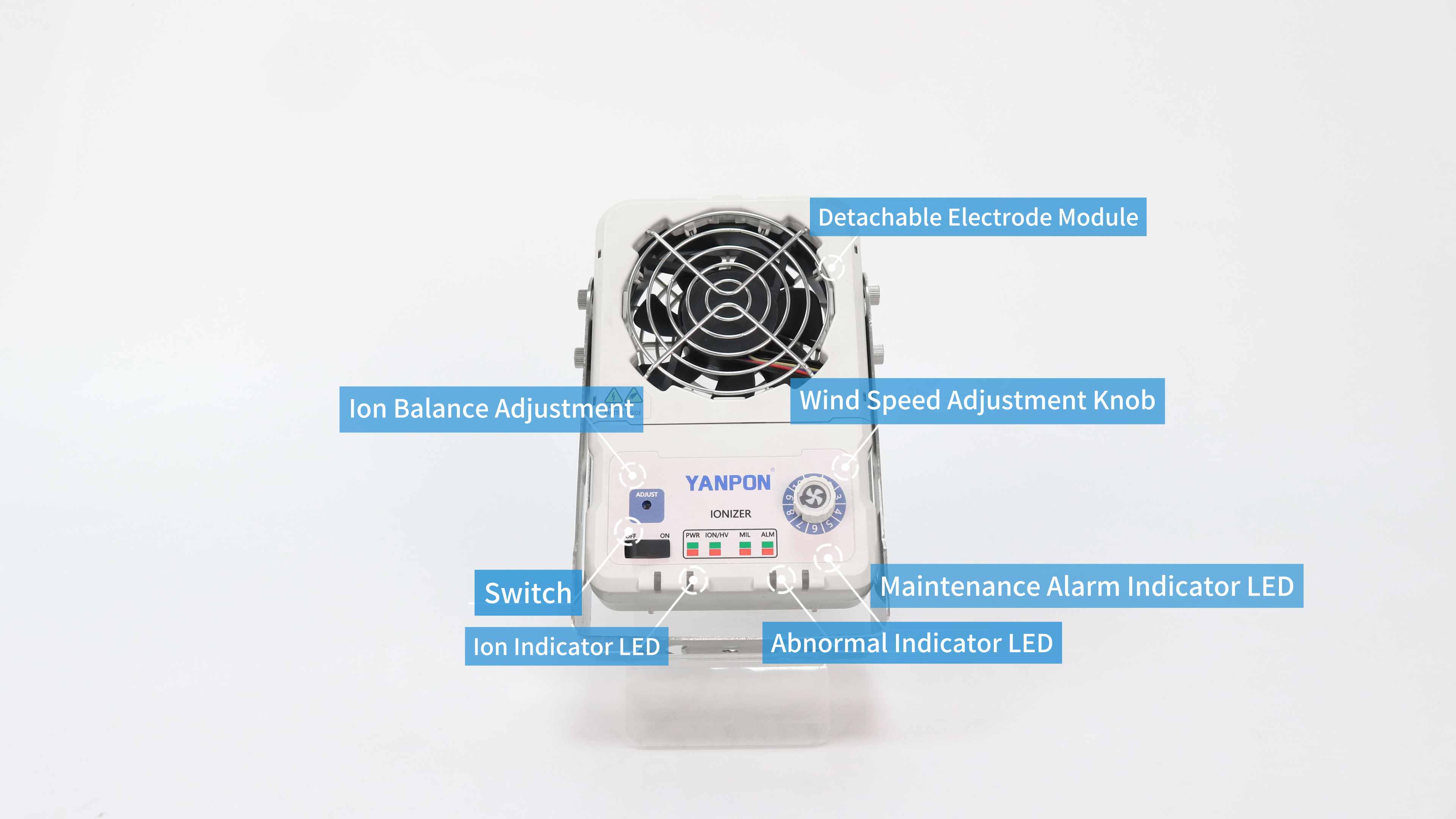

Product Characteristics
1 Intelligent ion fan with built-in ion balance detection.
2 With short-circuit protection function, communication can connect to PLC or external enable switch.
3 Replaceable electrode pin cartridge, 10-speed air volume adjustment.
4 Rich functions such as 6 types of abnormal alarms, its own ion balance can meet any scene use, with ion balance capability of ±5V.
Performance Parameter
- ModelFD212
- Input Voltage24V±10%
- Input Current＜0.9A
- Input Power＜10W
- Operating Voltage±DC5kV
- Ion Generation MethodCorona Discharge Type
- Voltage Application MethodSteady DC
- Emission ElectrodeTungsten Needle or Silicon Needle
- Static Elimination Range900300mm（at maximum airflow）
- Static Elimination Speed＜1s（at 300mm, maximum airflow, no filter）
- Ion Balance≤5V
- Maximum Airflow1.8m³/min（10-level adjustable）
- Audio Noise＜70dB
- OperatingTemperature0℃-50℃
- Operating Humidity35-80% RH（non-condensing）
- Overall Dimensions155106*40mm（bare unit）
- Housing MaterialABS

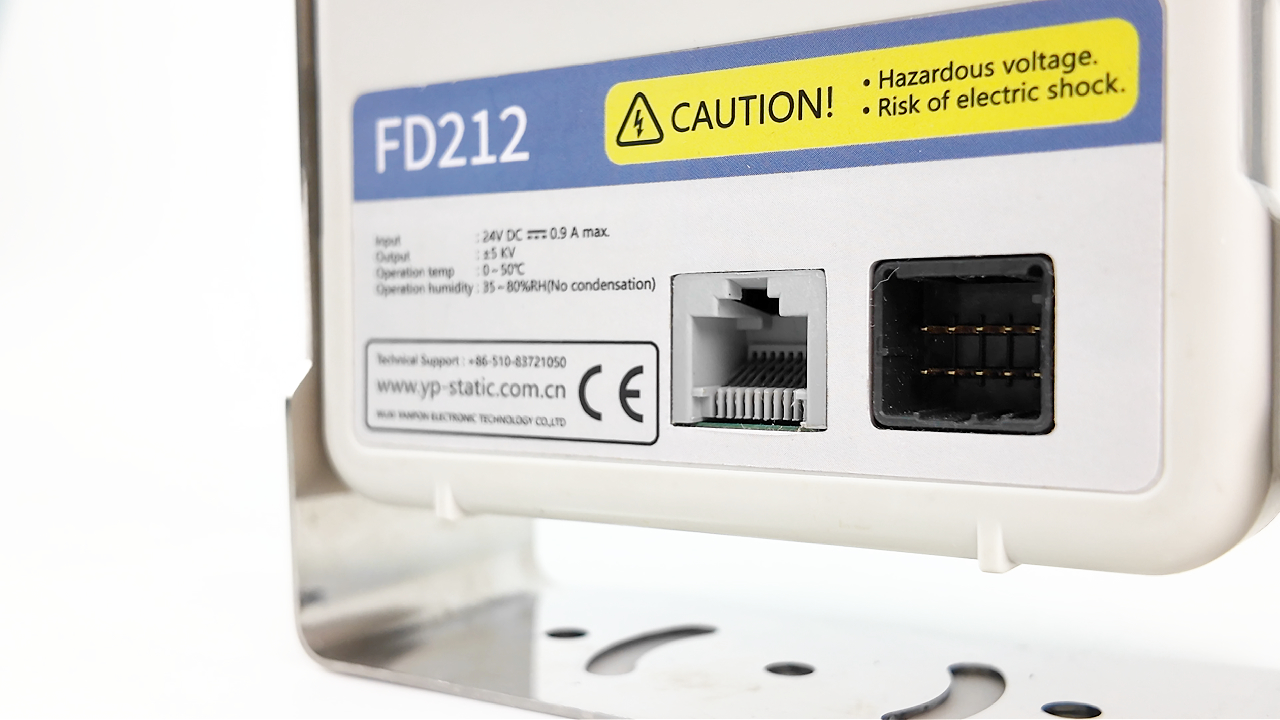

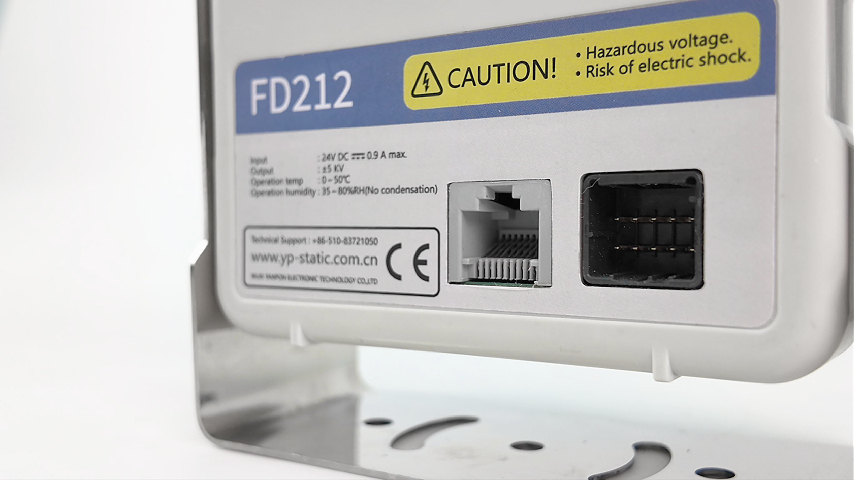

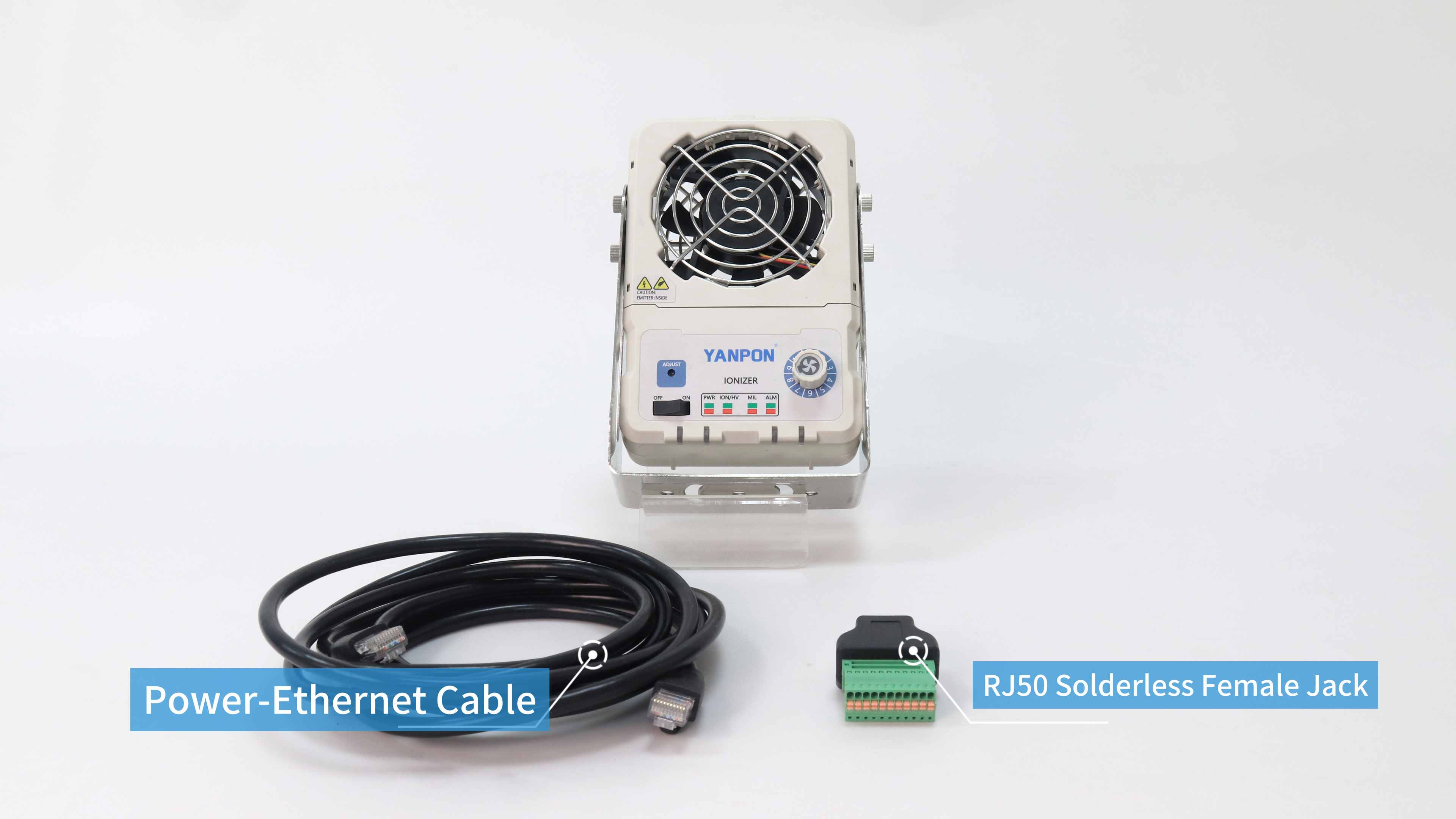

- Component Units①RJ45 interface power cable ②Electrode Needle Cartridge ③Bracket
- Non-essential Optional Accessory Units①Cleaning Kit（for manual needle tip cleaning）②Screwdriver for manual ion balance adjustment ③Air Intake Side Filter ④S10B-J21DK-GGXR（LF）（AU）interface power cable
- FunctionIon Balance Adjustable（Auto + Manual Knob）
- FunctionReplaceable Electrode Needle Cartridge

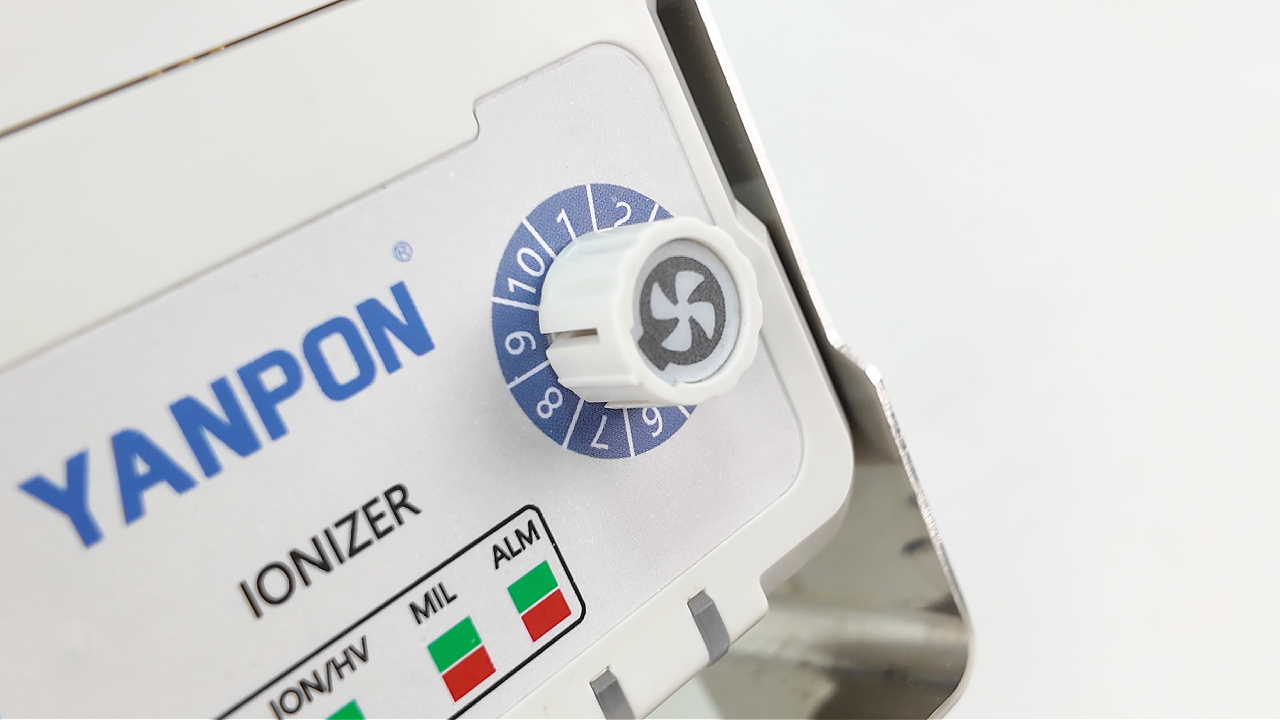

- Function10-level Airflow Adjustable
- Function6 types of Abnormal Alarms
- FunctionMaintenance Warning
- FunctionHigh-voltage Abnormal Protection
- FunctionPower Supply Abnormal Protection
Working Mode
Product Size
