Static Electricity Application Solution for Laminating Machines in FlexiblePackaging Processes

During flexible packaging lamination workflows, high voltage static builds up through high speed friction, separation and traction across peeling, coating, laminating, unwinding and winding steps, giving production malfunctions, cosmetic defects and safety hazards and impairing productivity, finished product qualification rates and plant safety.

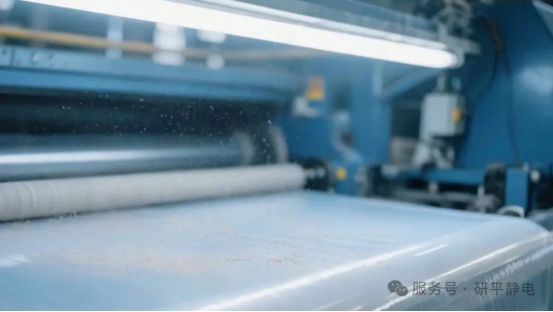

① Dust pickup during peeling: Rapid web peeling from parent rolls or guide rollers generates highvoltage static that attracts airborne dust and lint and creates heavy surface specks and cosmetic non conformities. Static discharge also shocks operators and hurts workplace safety and efficiency.

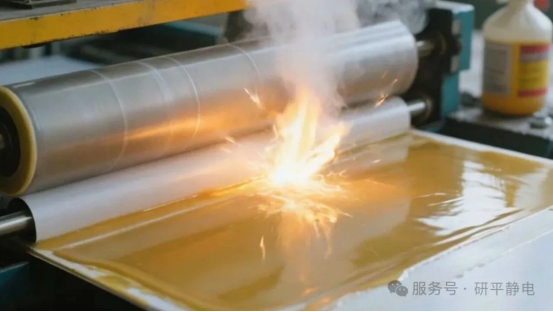

② Solvent ignition risk & void spots during coating: Static discharge sparking during coating poses fire explosion hazards amid organic solvent atmospheres. Dust attraction on charged webs also causes uneven coating, yielding voids, pinholes and mottling on laminated films.

③ Foreign inclusion specks and bubbles at lamination: Residual static from upstream steps keeps drawing dust, which gets trapped between bonded film layers and produces embedded contaminant specks and bubbles. Bond strength and surface appearance suffer and reject rates climb.

④ Web offset during unwinding: Post lamination webs retaining static cling to guide rollers, resulting in web wandering and wrinkling and potential machine shutdowns. Operators frequently experience static shocks and productivity and safety degrade.

⑤ Mis winding and roll defects during take up: Operators suffer static shocks during roll change operations. Electrostatic inter layer adhesion creates uneven winding, end face misalignment and inconsistent roll tightness and quality defects.

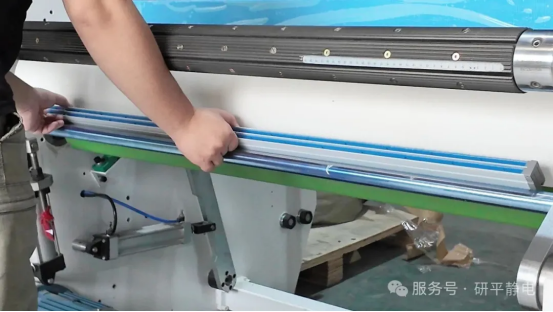

For flammable solvent rich coating zones on laminators, the Yanping XK700A + XK700BG explosion proof static elimination bars are recommended. Certified for explosionhazardous atmospheres, they eliminate ignition risks while mitigating coatingrelated defects such as voids, pinholes and mottling.

For wideweb static neutralization and orderly winding at laminator takeup sections, select the Yanping XK820B mediumrange DC pulse static eliminator. Dual row electrodes deliver uniform charge neutralization across wide webs with stable mediumrange working distances (100 mm-500 mm). It prevents static shocks for personnel, suppresses interweb adhesion and ensures neatly wound rolls with flat end faces.

After static mitigation in lamination processes, webs travel smoothly, coating is uniform, lamination bonds firmly and winding geometry is regular. Dustpickup, electricshock incidents and fire hazards disappear. Defect rates and downtimerelated waste decrease, laminationfinishedpart quality and operational stability improve, enabling safe, efficient, lowcost standardized flexiblepackaging production.
